For the Fitter
Caution! On a 3/PE AC 50 Hz 230 V mains
Rewiring of the storage heater load circuit necessary!

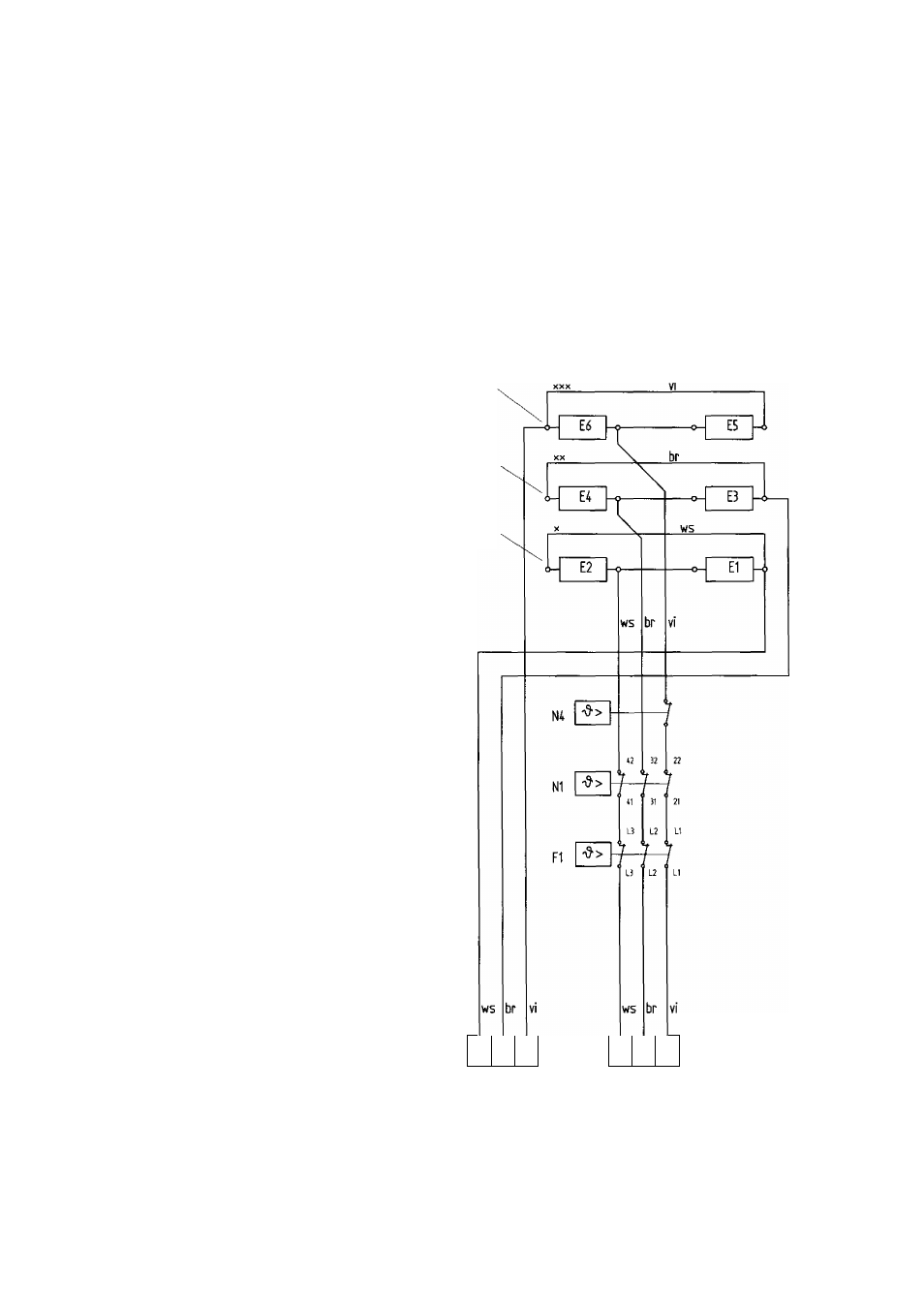

Circuit diagram for 3/PE AC 50Hz 230 V
Rewiring necessary in the storage heater!
XXX pull off vi wire from E2 and plug to E6
XX pull off br wire from E6 and plug to E4
X pull off ws wire from E4 and plug to E2
E1 - E6:(storage) heater
FI:
protective temperature limiter
N1 ;
temperature limiter - charging
N4:
temperature limiter - charging
X1:
mains terminal
3
2
1 XI
L3 L2 L1 XI
Jumpers must be wired by customer on site.
3/PE AC 50 Hz 230V
