INSTALLING
Continued
3. Slide the grooves in the back of the rear log (#3) against the rear grate prongs. Make sure
the peg on the log is on top (see Figure 19).
Rear Log (#3)
Peg
Grate Prong
Grate Prong
Rear Burner
Groove in
Back of Log
Groove in
Back of Log

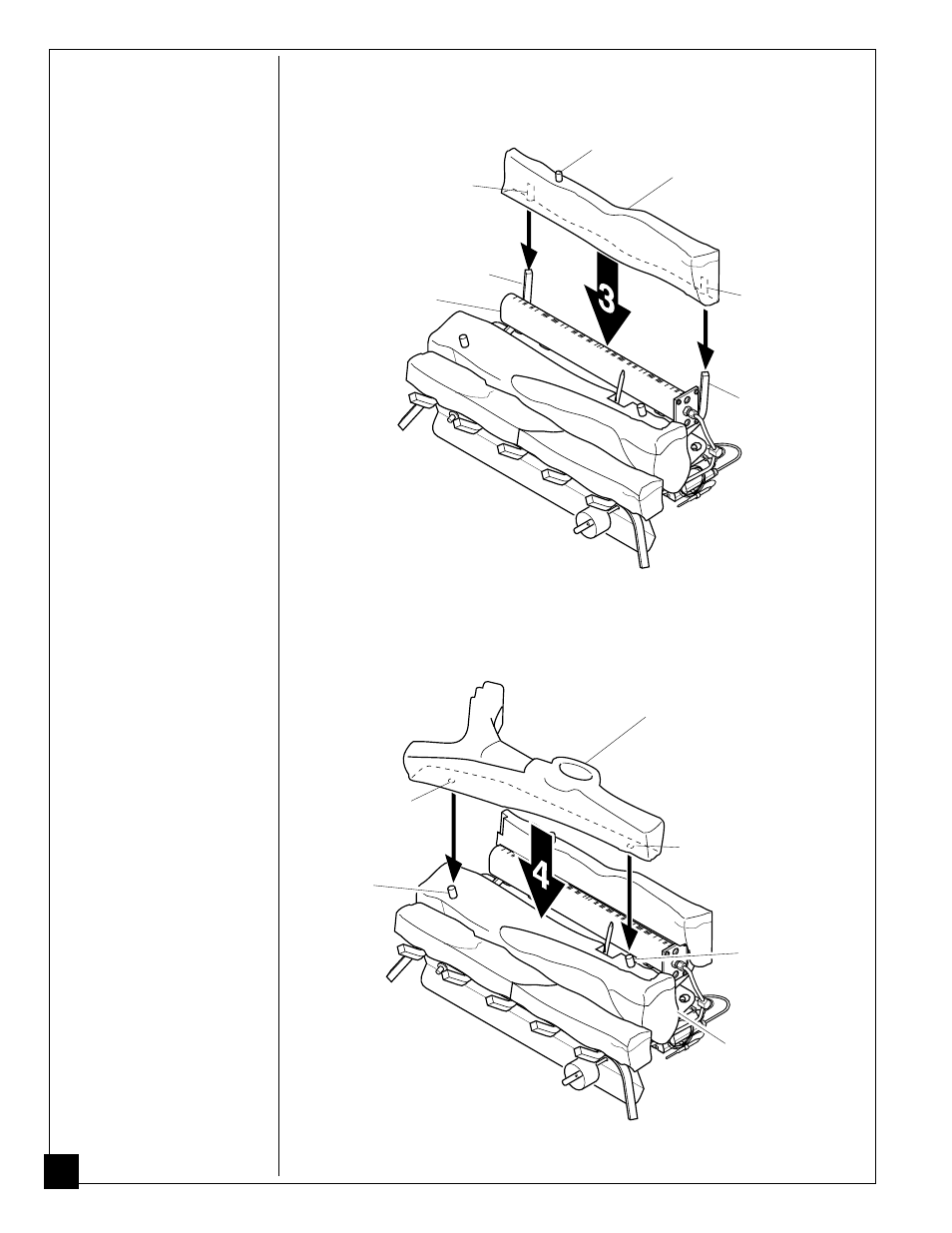

Figure 19 - Installing Rear Log (#3)
4. Place the top middle log (#4) on the bottom middle log (#2). Make sure the pegs of the
bottom middle log fit securely in the holes of the top middle log (see Figure 20).
Figure 20 - Installing Top Log (#4)
Top Middle Log (#4)
Hole
Hole
Peg
Peg
Bottom
Middle Log
