HOMI Input Connection Troubleshooting
BEST Video Performance
Use of this pure digital technology offers enhanced high definition video and
digital audio all via a single cable.
There are three (3) HDMI inputs available for use with HD Set Top Boxes, gaming
consoles and HD DVD / Blu-ray players.

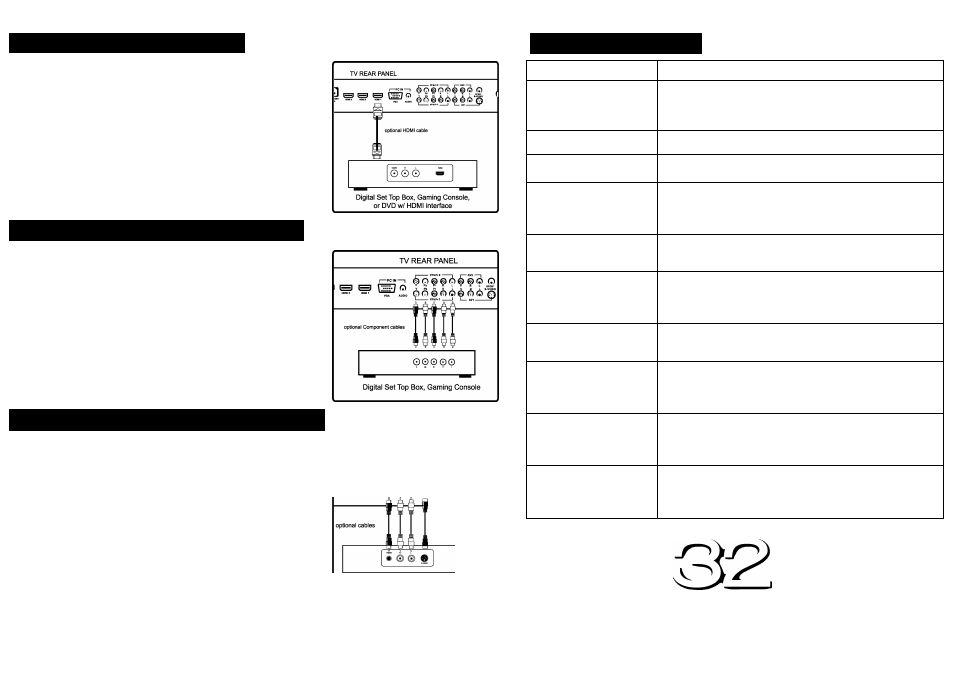

How to Connect HDMI
• From your external digital A/V equipment, connect an HDMI cable from the
HDMI output to the HDMI input on the TV’s rear panel.
Component Input Connection
BETTER Video Performance
There are two (2) YPbPr component video and audio inputs for use with set top
boxes, gaming consoles, and DVD players.
How to Connect Component
• When connecting A/V equipment to your television, match the colors of the
connecting jacks (Video: Blue, Green, Red; Audio: White/Red)
• Connect optional component video cables (blue, green, red) from the video
output jacks (Y, Pb, Pr) on your external A/V equipment (ie: DVD Player, set
top box) to the YPbPrl and/or YPbPr2 input(s) on the TV’s rear panel.
• Connect white/red audio cables for sound from the audio (L/R) output jacks
on your external A/V equipment (ie: DVD Player, set top box) to the YPbPrl or
YPbPr2 L/R input(s) on the TV’s rear panel.
Composite/S-VIdeo Connection
GOOD Video Performance
Composite and S-Video output jacks are available on most set top boxes and DVD
players. (Component or HDMI connections are recommended for best perfor­
mance, if possible).
How to Connect Composite
• When connecting A/V equipment to your television, match the colors of the
connecting jacks (Video: Yellow; Audio: White/Red)
• Connect the yellow video cable from the video output jack on your external A/V
equipment (ie: DVD Player, set top box) to AVI or AV2 input on the TV’s rear
panel.
• Connect the white/red audio cables for sound from the audio (L/R) output jacks
on your external A/V equipment (ie: DVD Player, set top box) to the AVI or AV2
(L/R) jacks on the TV’s rear panel.
How to S-Video
• Connect an optional S-Video cable from the S-Video output jack on your
external A/V equipment to the S-Video input on the TV’s rear panel.
• Connect the white/red audio cables for sound from the audio (L/R) output jacks
on your external A/V equipment to the AVI (L/R) input on the TV’s rear panel.
TV REAR PANEL
I--------------- YPbPr2 ------------1 I-------AV2 ------- 1 7 ) Q © © Q © © Q Q ^
Y Pb Pr R L V R L SPDIF f.)
Y Pb Pr R L V R L S-VIDEO V*/
: ) Q © © Q © © Q 0
I --------------- YPbPrl _______ I I ____ AVI _________
NOTE: An S-Video
cable is for video only.
You must connect audio
cables for sound.
Digital Set Top Box, Gaming Console
Symptom Possible Solutions
Cannot receive certain
channels through the
antenna
• Use the Channel Auto Scan function to add the channels not
included in memory. See page 17.
• Readjust your antenna and retry Channel Auto Scan.
• Signal from the TV station may be weak in your area.
No color
• Check the video installation of your external A/V equipment.
See pages 11-14
Video noise or choppy picture
• Readjust antenna. Keep TV away from noise sources, neon lights,
and microwave appliances.
TV blocked on certain
channels
• Use the automatic scanning method to add the channels not
included into the memory. See page 17.
• Check whether channel was deleted. See page 26.
• Check parental control settings. See pages 24, 25.
Cannot use certain functions
• If the item chosen in a menu is shown in gray text, that item cannot
be selected in the current input.
No sound
• Check that connected audio cables are completely inserted.
• Verify you have selected the correct audio source from your
amplifier. See pages 15, 16.
• Mute function maybe enabled, press mute on the remote.
Black box on screen
• The “Text" option is enabled and no text is available. Turn off CC
in the Setup menu under Closed Caption. See page 22
No power
• Batteries in the remote control may need replacing.
• Re-attach AC plug to wall outlet.
• Check that the Master Power switch is ON. See page 9.
No picture
• Digital TV channel signal maybe weak, try another channel.
• Press input button repeatedly to select connected A/V equipment.
• Re-connect the antenna or cable wiring.
Remote control does not
function
• Replace batteries with new ones.
• Check that battery polarity is correct.
• Point remote directly at the TV. See page 6.
LCD HDTV
32' Class HDTV (31.5' Diagonal Viewing Area)
