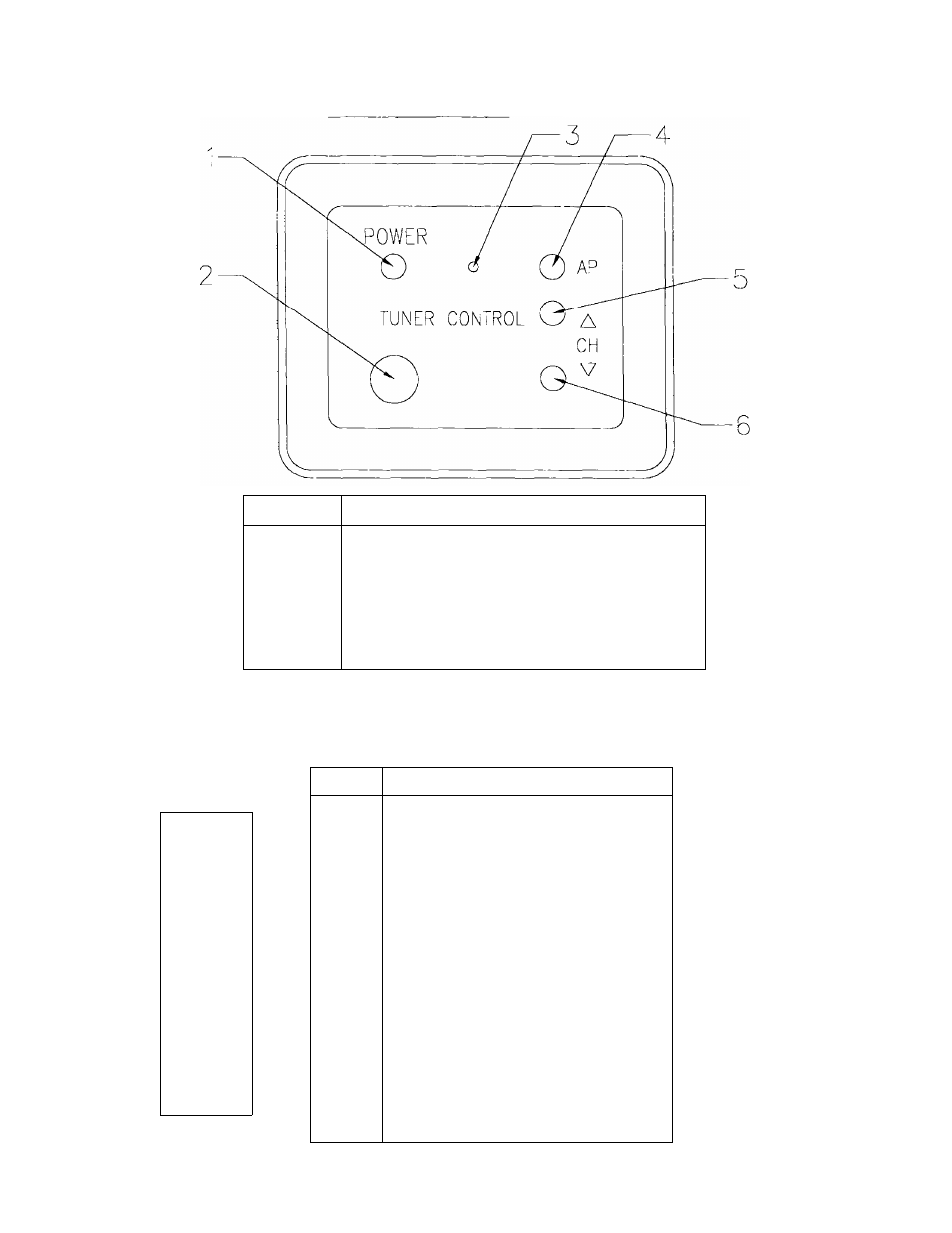

h U N C T I 0 N S :
ITEM
FUNCTION
1
on
/
off
power
2
IR REMOTE EYE
3
POWER ON INDICATOR
4
AUTO-PROGRAM
5
CHANNEL UP
6
CHANNEL DOWN
HEADER CONNECTIONS: INTERFACE CABLE TO TBX98TM
©
®
@
®
©
®
®
®
@
@
&
ITEM
FUNCTION
1
TV AUDIO OUT LEFT
2
TV VIDEO
3
TV AUDIO OUT RIGHT
4
GROUND
5
IR DRIVE INPUT
6
+12V VDC
7
GROUND
8
GROUND
9
RR09 CIRCUIT *
10
RR10 CIRCUIT *
1 1
RR1 1 CIRCUIT *
12
RR12 CIRCUIT *
13
RR13 CIRCUIT *
14
+5V VDC OUTPUT
* KEYPAD INPUT DATA
Page 3 of 7
P/N 8009850
REV. A
