Connector Panel
The projector provides computer and video connectors:
• one M1-D/A (HD, DVI, and computer)
• one VESA (HD, HD component, and computer)
• one S-video
• one composite RCA video
• one audio in/one audio out
It also has an RS-232 serial connector for serial control. The Command Line
Interface (CLI) specifications and commands are on our website.
The projector also has a USB connector (Type A) and player for
JPEG (Joint Photographic Experts Group, .jpg, .jpe, or .jpeg) images. This
allows you to display any JPEG image automatically, without a computer
connected. Use your own JPEGs from your digital camera, or convert your
files, such as Microsoft
 PowerPoint TM , Word TM , or Excel TM files, into
JPEGs using Utility software (included on the CD), which allows
you to easily generate the highest quality JPEG images possible. Then trans-
fer the JPEG images from your computer to the projector using a USB mass
storage device and your images are ready to be displayed. (Please refer to
the Service and Support section of our website for advanced specifications
on the USB device and JPEG files.) You can use the remote control to select
which JPEGs to view (page 27) or you can set up the player using
the onscreen menu to select display preferences and automatically
display and advance your JPEGs (page 36).
Wireless Projection
You can use the projector’s M1 connector along with approved optional
wireless adapter and software for cable-free digital projection.
Contact an authorized Dukane dealer or visit the website listed on the back
inside cover of this User’s Guide for more information.

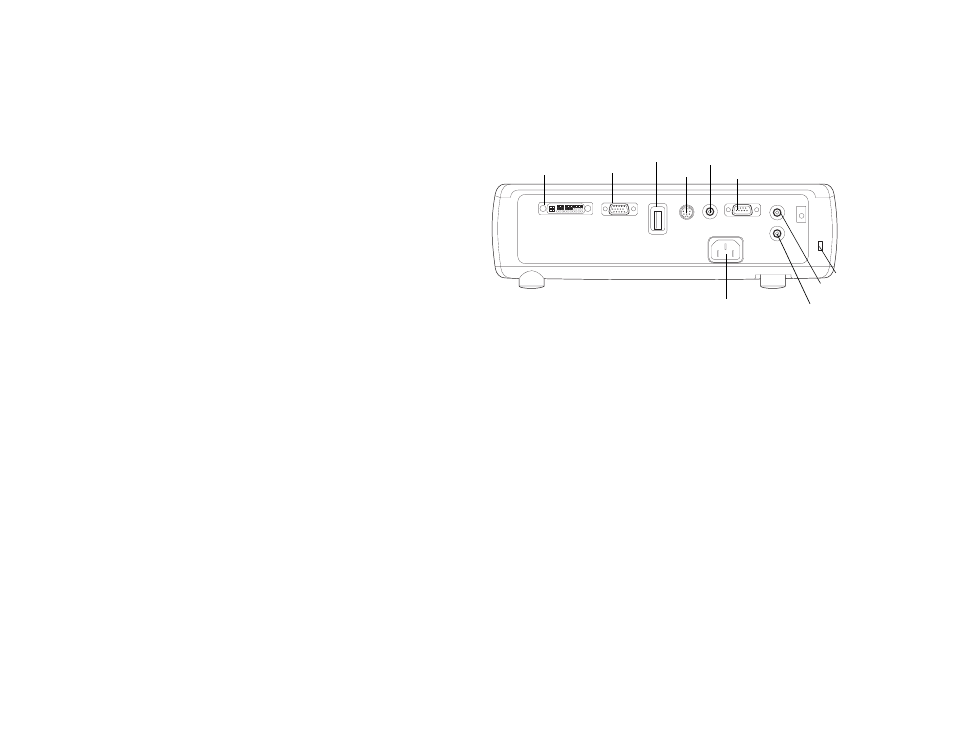

Connector panel
lock
power
connector
M1-D/A
s-video
composite
external
speaker
(audio out)
RS-232 serial control
video
computer
audio
VESA in/ USB JPEG
monitor out
