Diamond Audio Technology S6.0MX3 - Manual (Page 2)

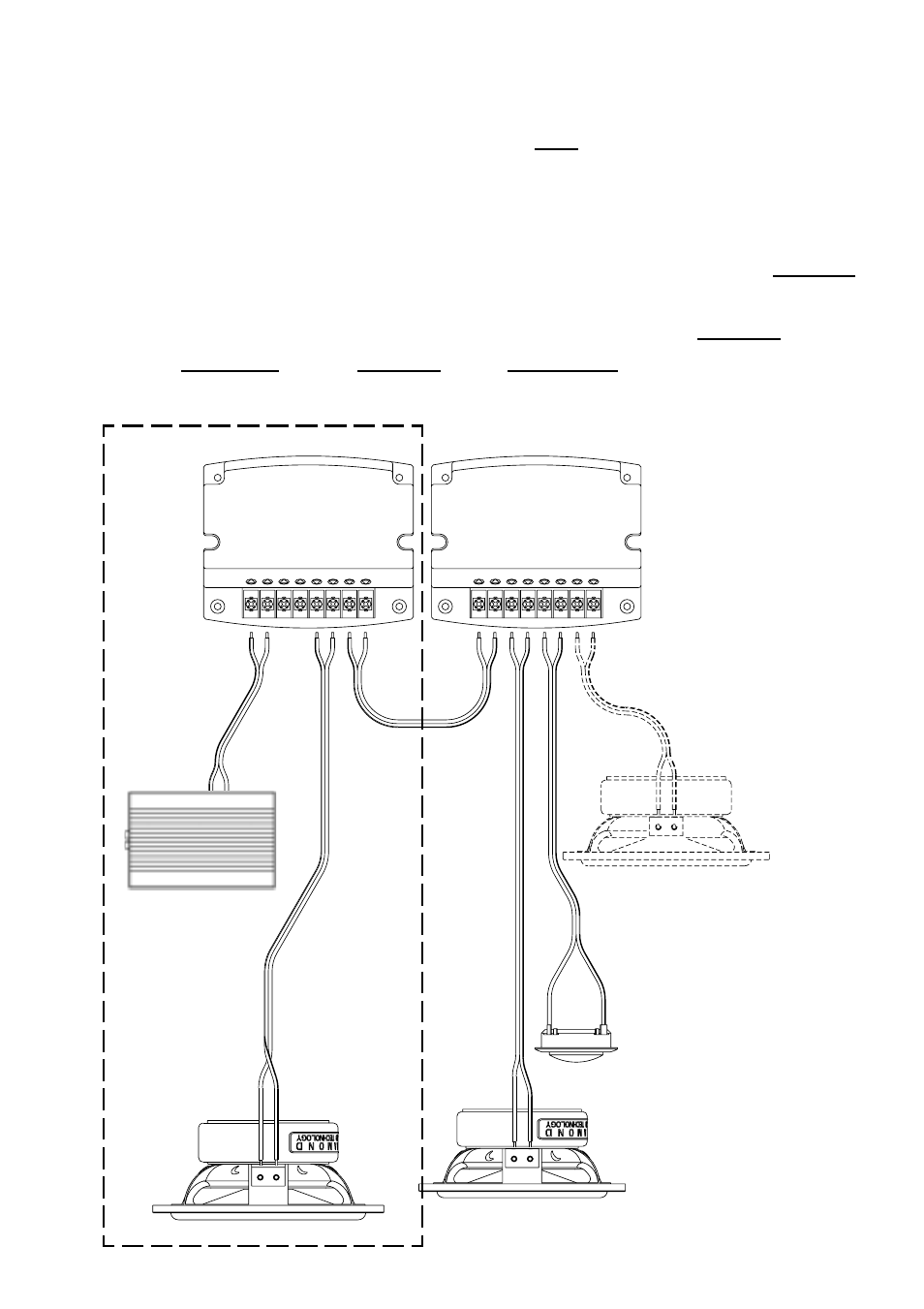

The following diagram shows a typical connection of the S6.0mx3 Midbass Add-On
to the S400 or S500 systems. In this manner, a fully passive 3-way speaker
system may easily be assembled. Optionally, the RAF output of the primary HEX
crossover may still be used to augment the front stage sound. The Sx3 crossover
features selectable highpass frequencies of 200 or 400Hz @ 6dB/oct, plus level
controls to balance the bass/mid/high sound. For Bi-amping through the Sx3 (not
shown), simply connect the additional amp channels to the corresponding INPUT 2
terminals. Then, move the internal switches #3 & #4 to the BIAMP=ON position.
FAILURE TO SO MAY CAUSE DAMAGE TO THE AMPS. Note: INPUT 1 passes
audio to the WOOFER output, INPUT 2 to the HIGHPASS output.
+ -
+ -
- +
+ - + - + - + -
LPI HPI LPO HPO REAR TWEETER WOOFER INPUT
+ - + - + - + -
Sx3
HEX primary
S6.0mx3 Midbass Add-On
Rear Fill Driver
(optional RAF)
HEX Tweeter
HEX Midrange
S6.0m
Midbass
(amp not
supplied)
