Specifications
Model
EWS-6
EWS-10
EWS-15
EWS-25
Capacity [Itrs.]
6
10
15
25
Power Supply
◄-------------- --------- 230V/50Hz-------------- --------------- ►
Wattage [kW]
2
2
2
2
Max Stdg. Loss [kWh/24h/45°C diff.]
0.792
0.99
1.138
1.386
[as per ISI 2082:1993 amended in 2002]
Actual Stdg. Loss [kWh/24h/45°C diff.]
0.51
0.62
0.75
0.924
Reheating Time for 50°C rise [in min]
16
33
48
72

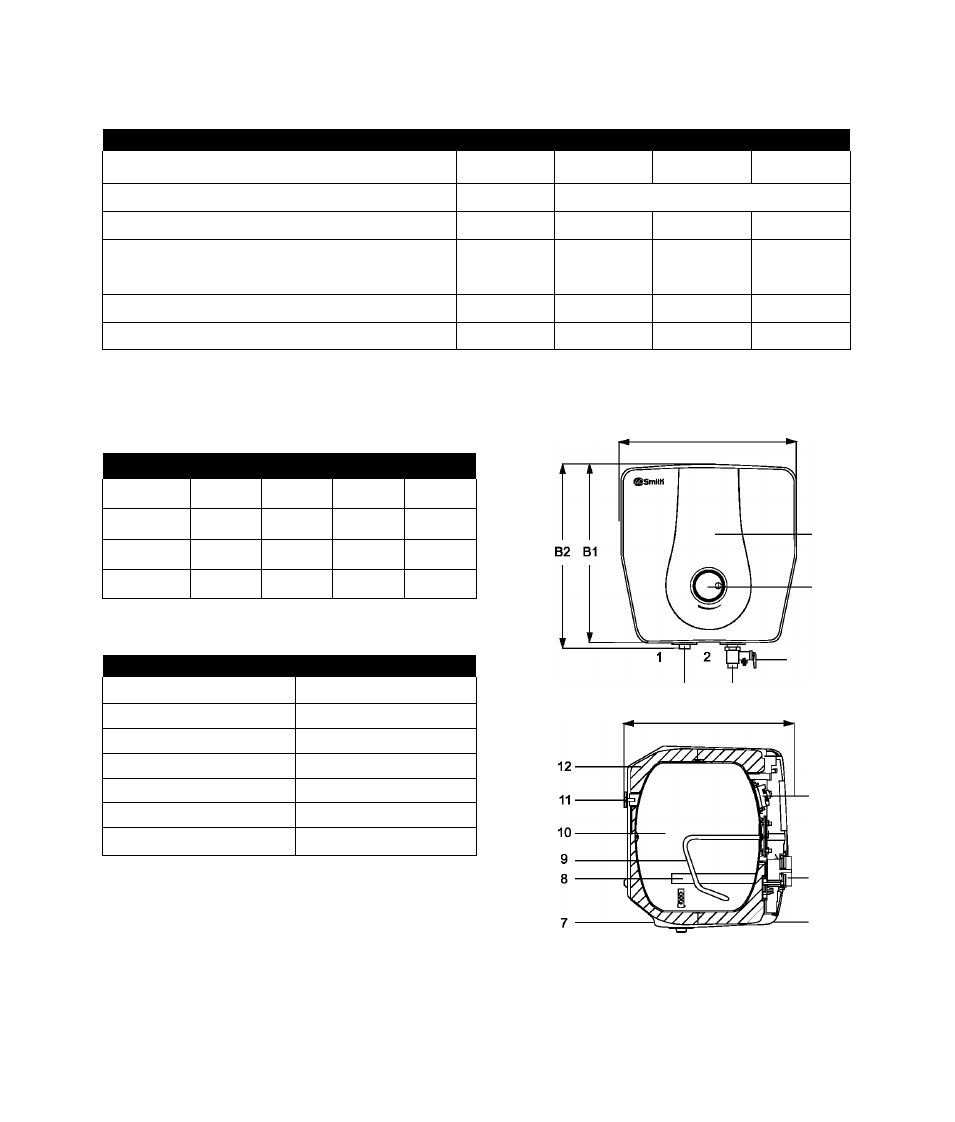

Dimensions and Parts
Model
EWS-6
EWS-10
EWS-15
EWS-25
A [mm]
317
373
373
444
B1 [mm]
317
373
373
444
B2 [mm]
326
380
382
453
C [mm]
258
277
348
383
Part Descriptors
1 Outlet
8 Anode
2 Inlet
9 Pleating Element
3 Safety Val ve
10 Tank
4 Thermostat Knob
11 Installation Bracket
5 Decorative Front Panel
12 PU Insulation
6 Front Jacket
13 Thermal Cutout
7 BackJacket
