Delta 150 NICAM stereo TV tuner handbook

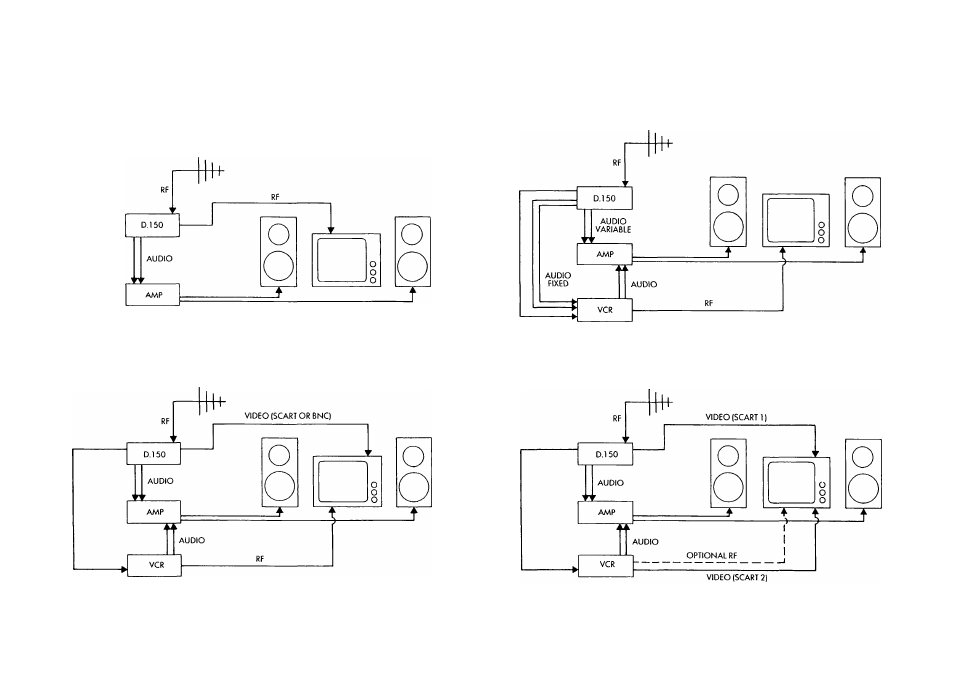

Typical A/V system connections incorporating the Delta 150
RF
Figure I. Simple configuration using the Delta ISO's remodulated output
Figure 2. Simple configuration connecting your TV and VCR to the Delta 150, using
remodulated outputs.
RF
RF
Figure 3. Configuration making use of TV set fitted with a SCART socket.
Figure 4. Configuration making use of TV set fitted with two SCART sockets.
11
