CARE AND MAINTENANCE
Reversing the Door Swing of Your Freezer
This freezer has the capability of either opening the door from the left or right side.
The unit is delivered to you with the door opening from the left side. Should you
desire to reverse the opening direction, please follow these instructions.
NOTE:
All parts removed must be saved to do the reinstallation of the door.
Reversal And Installation Of The Refrigerator Door
Remove both screw-type leveling legs (7).
Remove the three screws (8) that hold the lower right hinge (4). save hinge for later use.
Remove door from upper pin (1), lift it and place it on a padded surface to prevent
scratching it.
Using a flat screwdriver remove right upper pin and transfer it to the same location on the
opposite side.
Remove the pin cap (2) from the left side of the upper frame of the door, and then transfer
It to the same location on the opposite side.
Remove inner plug (3) from upper frame of door and transfer it to the uncovered hole on
the opposite side.
Insert lower hinge (4) previously saved to the lower left side of the door. Before placing
this hinge, reverse the direction of the bolt-pin (6).
Set the door in place making sure the pin enters the bushing at the uncovered hole on the
upper frame of the door.
While holding the door in the closed position, secure the lower left hinge by tightening all
the screws, making sure the door is leveled with the counter top.

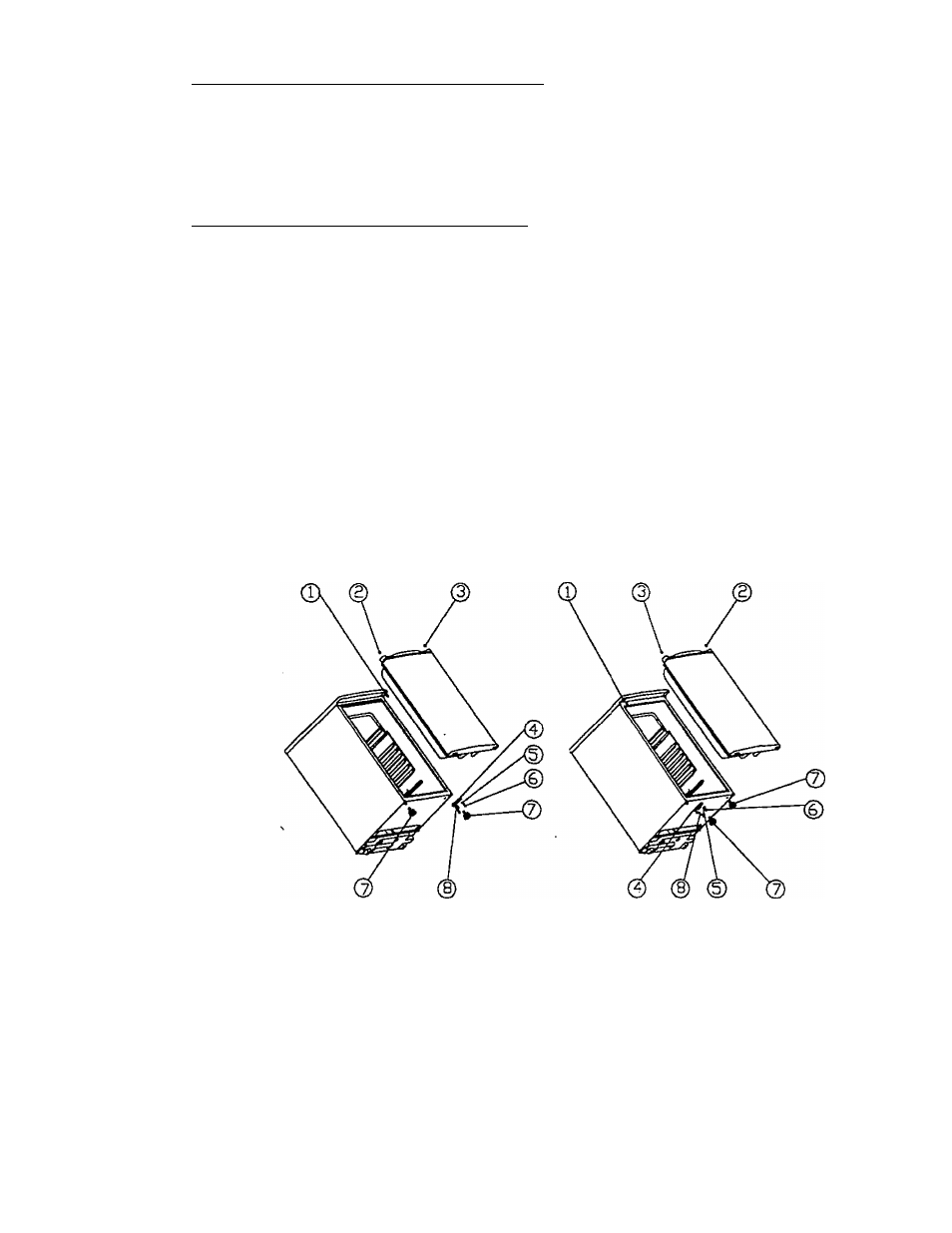

FIGURE 1 (Position prior to door reversal) FIGURE 2 (Position after door reversal)
1 Upper pin,
2 Pin cap
3 Inner plug
4 Lower Door Hinge
5 Washer
6 Bolt-pin
7 Leveling legs
8 Door Hinge Screws
