Features
aNtI-dry FIre
This tool is equipped with an Anti-Dry
Fire feature. This prevents the Work
Contact Element (WCE) from being
pushed in when only a few nails remain.
Simply load new nail clip behind
remaining nails to continue shooting.
tetHered No-Mar deCkINg tIP
The tool is fitted with a no-mar tip which
is tethered to the tool to prevent loss
when not mounted to tool. To utilize the
no-mar tip, simply slide it over the tools
WCE.
loW NaIl INdICator lIgHts
The tool is equipped with lights on either
side of the tool near the nose. When the
nail count becomes low, the lights will
turn yellow. When the nail count is nearly
out, the Anti-Dry Fire feature will engage
and the lights will turn red. (See Loading
the Nailer section).
BuBBle level
The tool is equipped with a bubble level
located on the head cap. This will assist
in aligning the tool for level driving of the
fastener. The bubble level will assist in
vertical and horizontal positioning of the
tool.
Getting To Know Your Framing Nailer Like A Pro
www.chpower.com

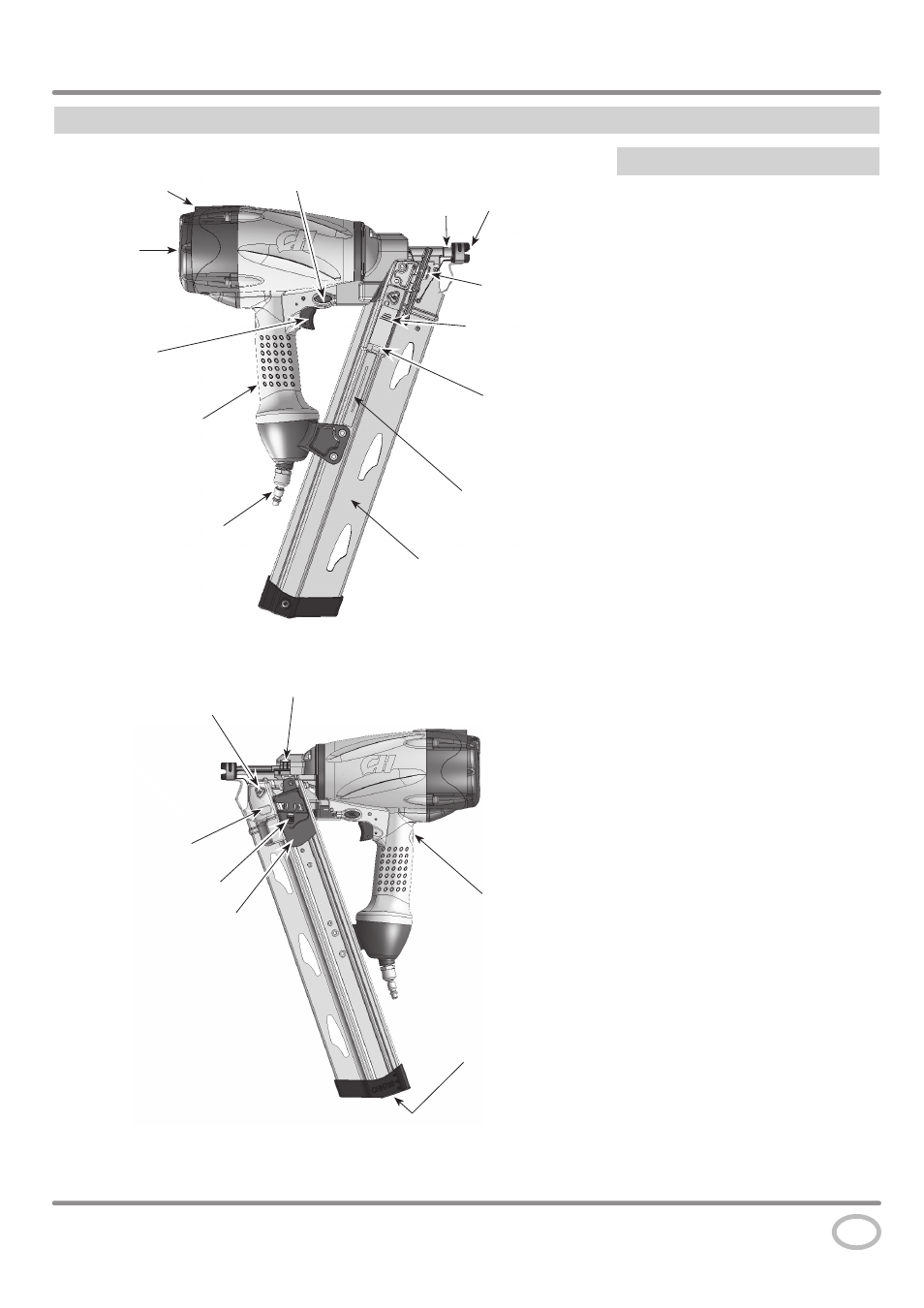

Figure 6 - Components of the Framing Nailer
Operating Instructions and Parts Manual CHN70900
Tethered
No-mar
Decking Tip
Bubble
Level
Conversion Switch
Magazine
Quick Clear
Nose Lever
Adjustable
Exhaust
Deflecter
Low Nail
Indicator
Light Rubber Comfort
Grip
Pull-out Warning
Decal
Trigger
Swivel Plug
Work
Contact
Element
(WCE)
Battery Cover/
Compartment
Adjustable Depth
Control Knob
Nail Pusher
Pusher Latch Button
No-mar Tip
Storage
Low Nail
Indicator
Light
Nail Loading
Area
Power Switch
(in Grip)
