ESKIMO/EARTHQUAKE MODEL 9000
w
Part # Description
60G56 NUT-Hex, 5/16”-i 8, two way reversible locknut
903 DECAL, Eskimo
903E DECAL, Earthquake
1402 BOLT-SHCS, 5/16"- 18x1-1/4", (mount ring to engine)
1423 BOLT-HHCS, 5/16"-!8 x 2", Grade 5, (auger shock spring)
1433 BOLT-Hex Hd, 3/8"-16 x 1-1/2",
(earth auger to powerhead)
2104 NUT-Hex, 3/8"-16, Locking
8651 STRAP, Blade Protector
8912 44TGEAR
8913 SHAFT, Output, 7/8"
8915 DOWEL PIN, 1/4" x 1/2", Hardened Steel
8919 GASKET
8922 BALL BEARING
8923 BALL BEARING
8924 SNAP RING
8929 BOLT-SHCS, l/4"-20x 1-1/2"
(gear case bottom to gear ease top)
8931 BOLT-SHCS, l/4"-20 x 2"
(gear case to handlebar plate)
8939 GEAR CASE, (lower halt)
8955 AUGER BOLT-SHCS, 3/8"-16 x 1-1/4”,
(ice auger to powerhead)
8957 POINT, Ice
8958 POINT, Earth
89S8HD POINT, Fishtail
8980 EARTH AUGER SPRING, (6"-10" only)
9005 THROTTLE CONTROL ROD
900SA THROTTLE CONTROL TWIST
9010 HANDLEBAR-i Person
9016 CLUTCH DRUM, 3" Threaded
9017 12T PINION GEAR
9020 CENTRIFUGAL CLUTCH ROTOR
9020A CENTRIFUGAL CLUTCH SPRING
9020B CENTRIFUGAL CLUTCH SHOES
9037 MOUNT RING, (handlebar to gear case top)
9038 GEAR CASE, (upper half)
9214A lOT PINION GEAR
AV520 GAS ENGINE
EA2F EARTH AUGER, 2", w/fishtail point
EA3F EARTH AUGER, 3", w/fishtail point
EA4F EARTH AUGER, 4", w/fishtail point
EA6F EARTH AUGER, 6", w/fishtail point
BASF EARTH AUGER, 8", w/fishtail point
EAIOF EARTH AUGER,I0", w/fishtail point
EB4 BLADE, Earth, 4"
EB6 BLADE, Earth, 6"
EB8 BLADE, Earth, 8"
EBIO BLADE, Earth, 10”
EBOLT BOLT, Hex, l/4"-28 x 5/8", Grade 5, (earth blade
ENUT NUT, NySock, l/4”-28, (earth blade to auger)
GCA GAS CAP
GT3HP GAS TANK
IB5816 BOLT, 5mm x 0.8 x 16mm, (ice blade to auger)
IN58 NUT, 5mm x 0,8 Nylock, (ice blade to auger)
PBP8A BLADE PROTECTOR, Ice, 8"
PBPlOA BLADE PROTECTOR, Ice, iO"
QB6 BLADE, lee, 6"
QB8 BLADE, Ice, 8"
QBIO BLADE, lee, iO"
QT6N ICE AUGER, 6"
QT8N ICE AUGER, 8"
QTION ICE AUGER, 10”
WF516 WASHER-FLAT, 5/16”, (auger shock spring)

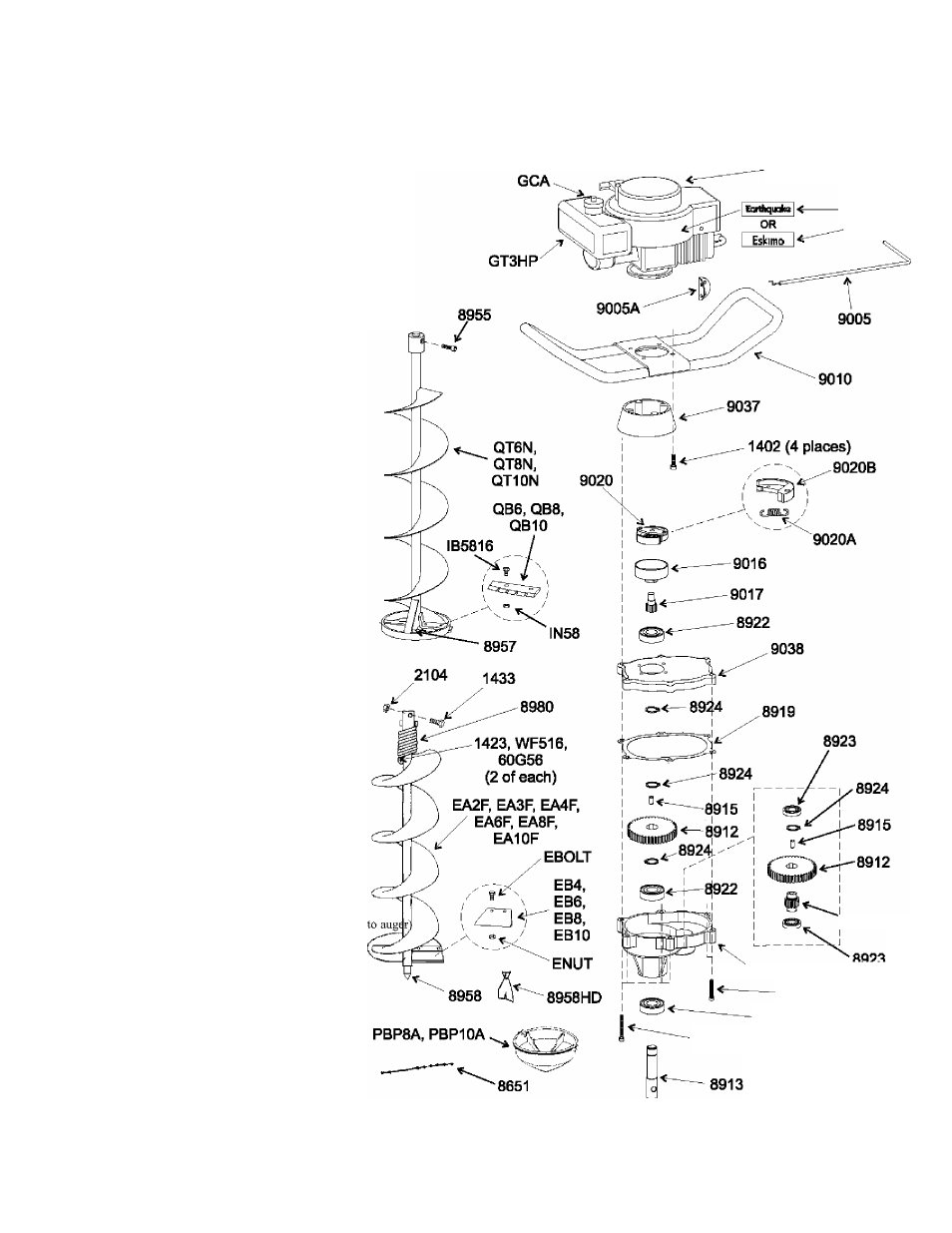

AV520
903E
903
_ r-9214A
8939
8929 (2 places)
8922
8931 (4 places)
