PANEL CONTROLS
© O 0 0 0
©

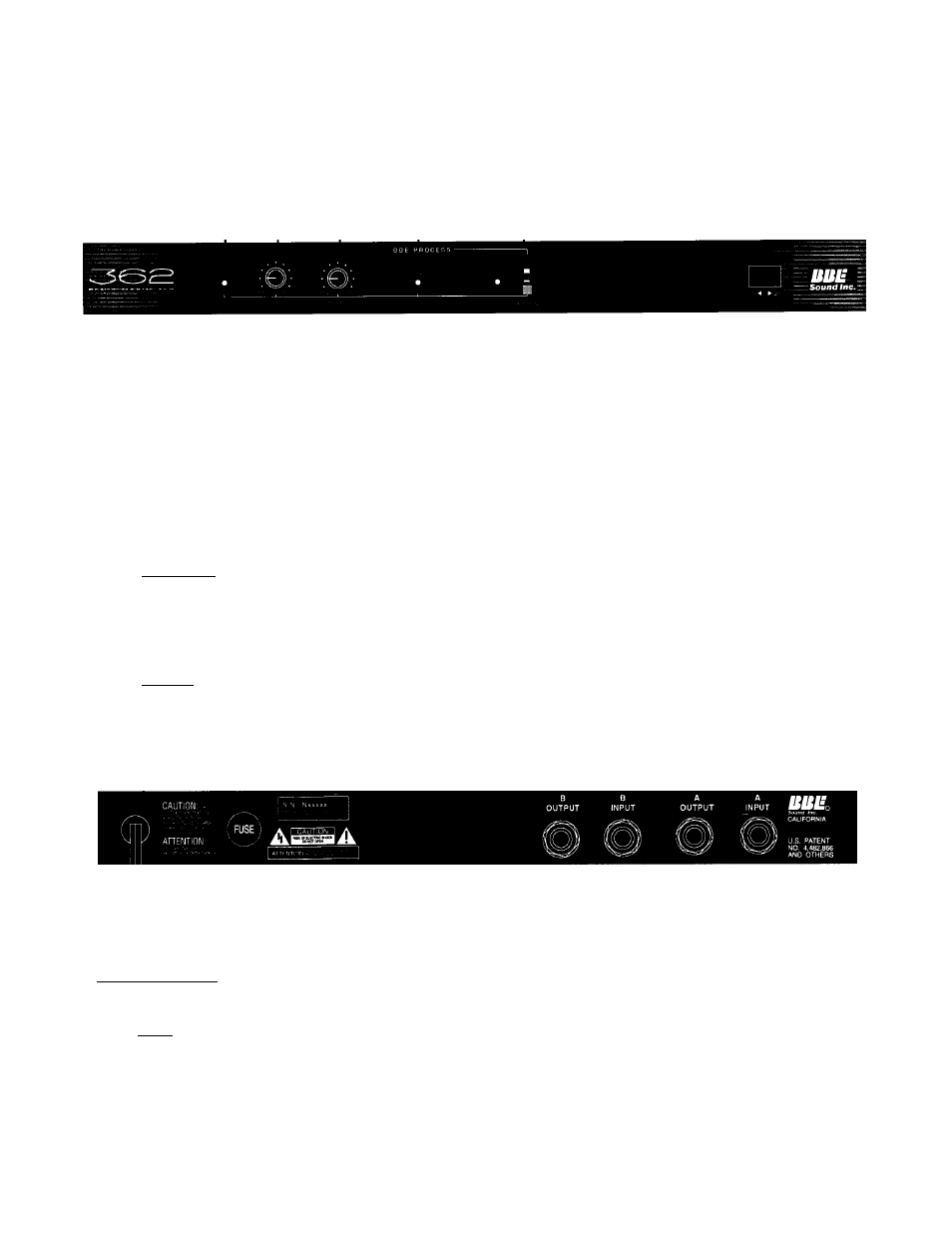

Front Panel
^_COOTQ^R: Each channel shares a common Lo Contour control that regulates the amount of phase compensated
bass equalization. This adjustment ranges from OdBu (fully counter-clockwise) to -f lOdBu (fully clockwise) at 50Hz
relative to the input.
raQCEgg: Each channel shares a common Process control that regulates the amount of phase compensated high
frequency equalization. This adjustment ranges from OdB (fully counter clockwise) to -I- lOdB (fully clockwise) at 2.5kHz
relative to the input.
n.TP T,F.T>; This LED indicates that the output of the BBE 362 has reached the maximum output level of -I- 15dBu.
This unit is equipped with a function push-button switch which allows for a quick comparison of processed
with unprocessed sound. When the switch is depressed, the green "In" LED lights. When the switch is out, the LED will
be red.
POWER: This switch controls primary power to the BBE 362.
©
© ©
Rear Panel
L AC POWER CORD: Plugs into AC power receptacle. U.S. Model, 100-120Vac, 50/60Hz. Standard Model, 200-240Vac,
50/60HZ.
2. FUSE: Turn cap on fuse holder counter-clockwise to remove fuse. (Note: For U.S. Model, replace with 250Vac, 'hk
Fastblow type fuse. For standard Model, replace with 250Vac, .125A Fastblow type fuse.)
3- Each channel is equipped with a 14” phone jack that is a low impedance
unbalanced line level output and can deliver up to -l-16dBu into IK Ohms.
4. Each channel is equipped with a '4” phone jack that accepts a high impedance
unbalanced line level input with an average of -lOdBu. (Note: -f 16dBu is the maximum input before clipping.)
