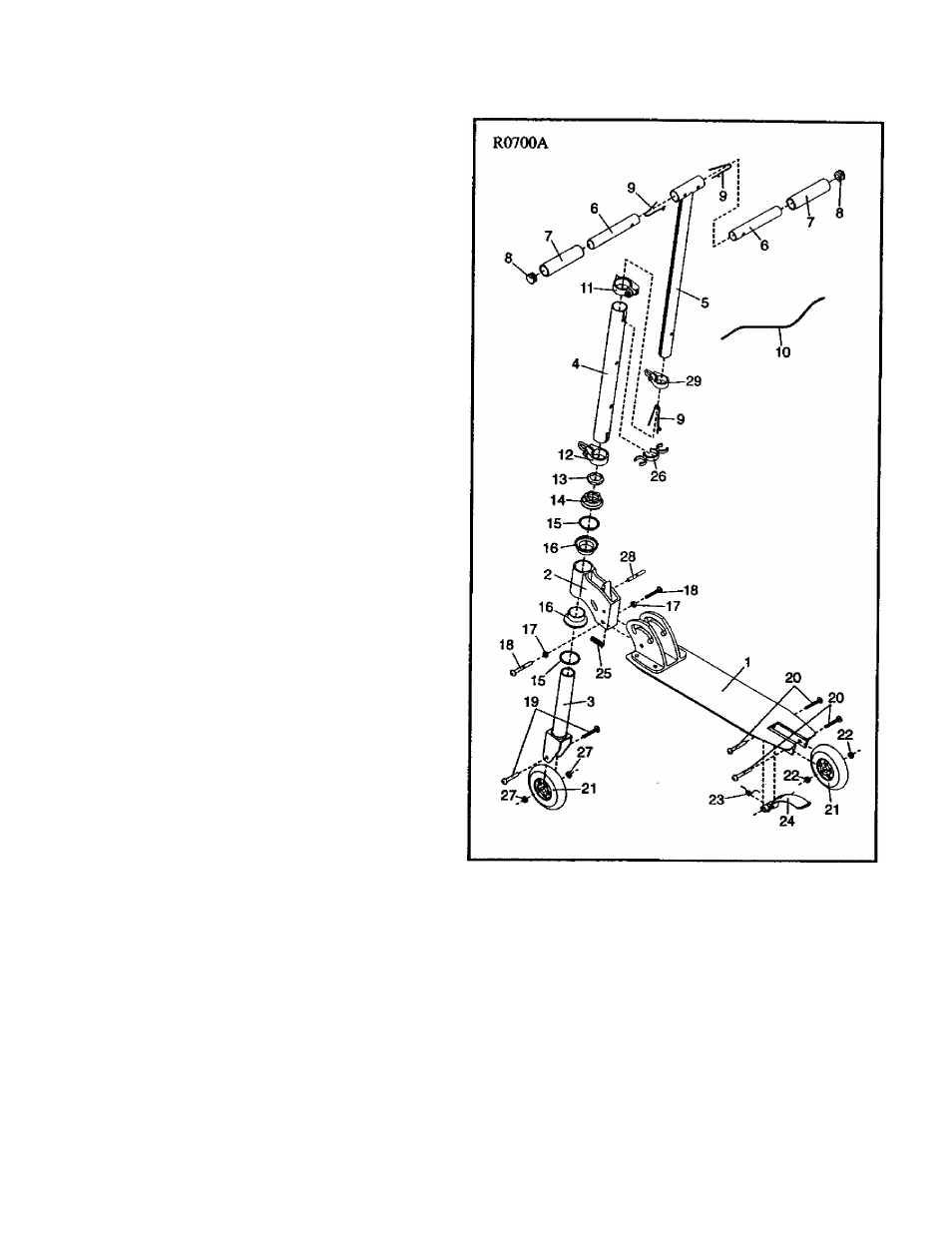

Part List/Exploded Drawing

Model No. 831.488530

No. Qty. Description

1

1 Deck

2

1 Head Tdbe

3

1 Fork

4

1 Upright

5

1 Stem

6

2

Handle

7

2

Foam Pad

8

2

Handle Cap

9

3

Lock Pin

10

1 Handle Cord

11 1

Quick Release

12

1 Upright Clamp w/Ring

13

1 Bearing Nut

14

1 Bearing Cap

15

2

Bearing

16

2

Bearing Race

17

2

Bushing

18

1 Pivot Union Bolt Set

19

1 Front Union Bolt Set

20

2

Rear Union Bolt Set

21

2

Wheel

22

2

Rear Wheel Spacer

23

1

Brake Spring

24

1

Brake

25

1

Head Tube Spring

26

1

Storage Clip

27

2

Front Wheel Spacer

28

1

Lock Pin

29

1

Strap Clamp w/Ring

*

1

Cany Strap

*

1

User’s Manual

"‘The user’s manual and carry strap are not shown

Note: Specifications are subject to change without

notice.

Ordering Replacement Parts

To order replacement parts, call toll-free 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time

(excluding holidays). When ordering parts, please mention the model number (831.488530) and the number and descrip­

tion of the parts needed.
