CleanShot™ 2050 PSI Pressure Washer CleanShat

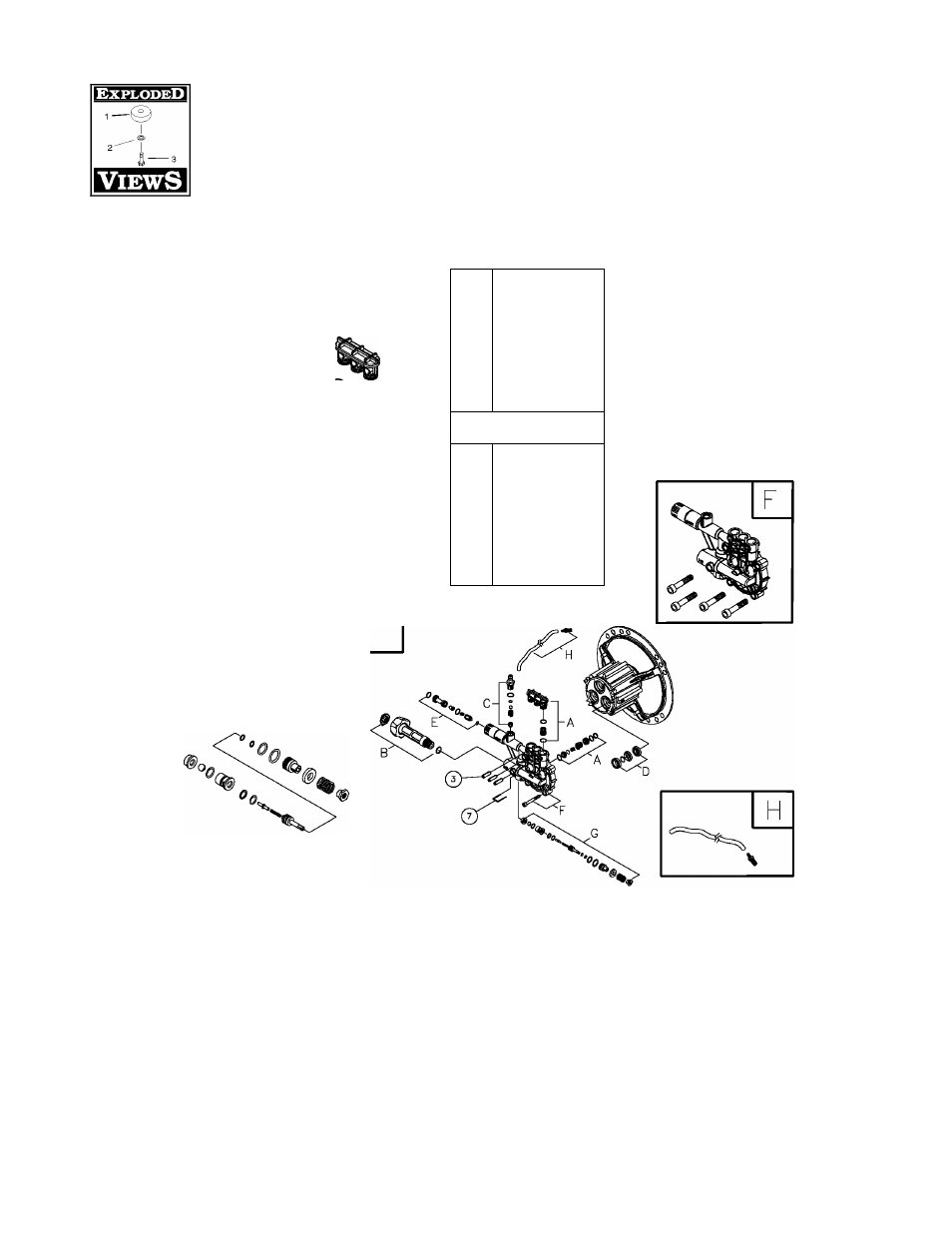

EXPLODED VIEW AND PARTS LIST - PUMP
0 0
0 o
o
A
0
D
G
Item Part # Description
3 200274GS PLUG, Elastic
7 190578GS PIN
A 200298GS KIT, CHECK VALVES
B 200278GS KIT, WATER INLET
C 200279GS KIT, CHEMICAL INJECTION
D 200280GS KIT, HIGH PRESSURE SEALS
E 200281GS KIT, CHEM INJECT VENTURI
F 200282GS KIT, PUMP HEAD, ALUM
G 200283GS KIT, BY-PASS
H 189971GS KIT, CHEMICAL HOSE
B
^
0
E
^0
C
O
o
O
Parts Not Illustrated
B2384GS FILTER, Inlet
186452GS FILTER, Inlet, Bag of 10
NOTE: Item letters A-H are service kits and include all parts
shown within the box.
