TOP CAP
Caution: When using perforated
paper be sure to raise the dust door
(Figure 7), and install the dust collection
bag to insure maximum effectiveness.
Conversely, when not using the dust
extraction feature, be sure to close the
dust door, shown in Figure 7.
Switch
To turn the unit on, depress the side
of the dust protected switch that corre­
sponds to the symbol “I”. To turn the tool
off, depress the side of the switch that
corresponds to the symbol “O”. See
Figure 4.

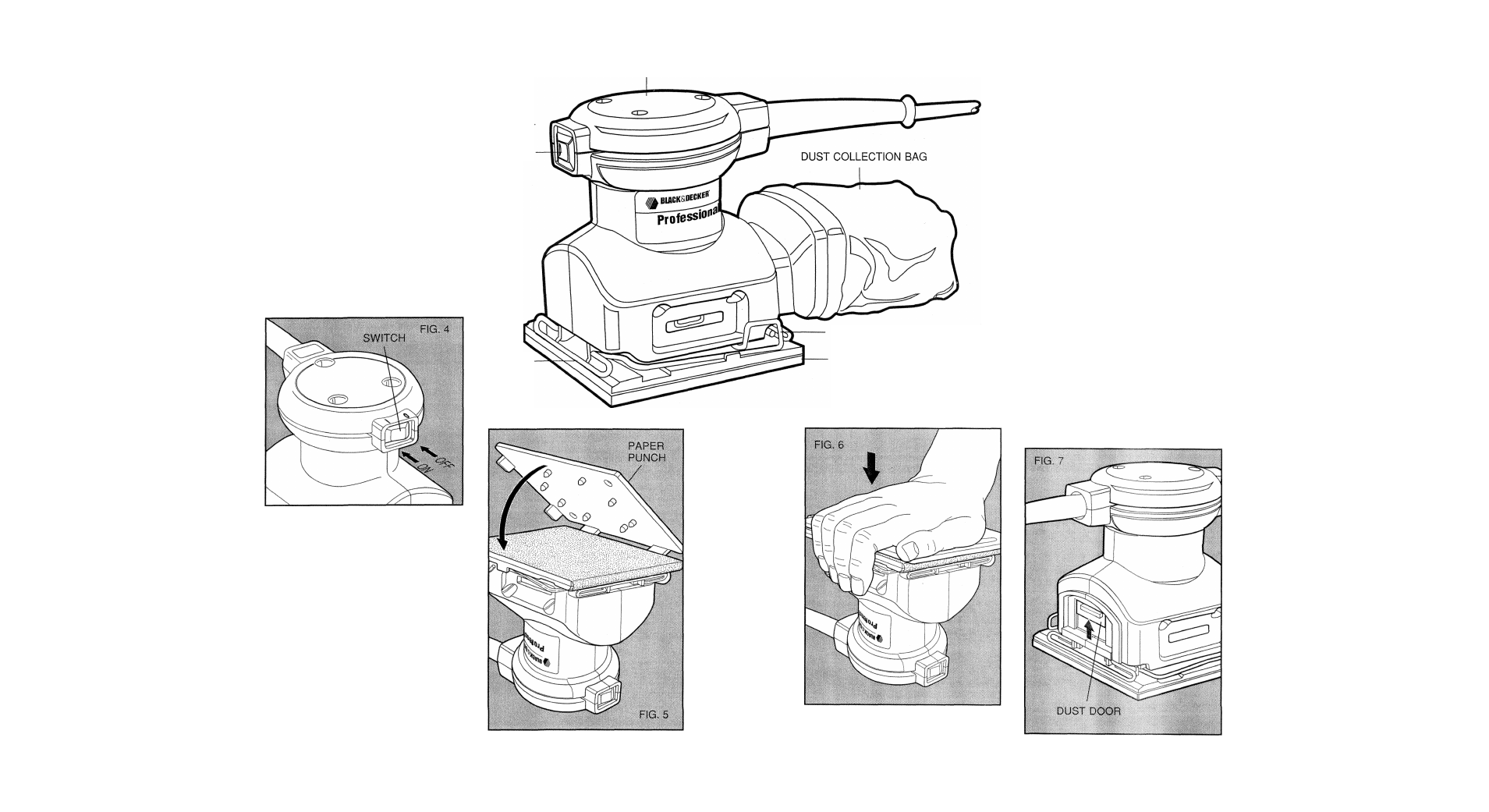

Paper Punch
A paper punch is provided with your
Sander to let you perforate regular
sandpaper to make dust collection
possible.
To perforate your sandpaper, install
the sandpaper on the tool as instructed in
this manual. With the sander turned off
and unplugged, place the paper punch
on the paper so that the tabs at the
edges of the punch are against any two
adjacent sides of the sanding pad, as
shown in Figure 5. Press the punch
against the pad so that the 8 points
penetrate the paper, as shown in Figure
6. (Press the punch into the pad as far as
it will go.) Remove the paper punch and
the paper Is ready.
ON/OFF
SWITCH
PAPER
CLAMP
PAPER CLAMP LEVER
SANDING PAD
An alternate method of perforating
the paper is to fasten the punch down to
a suitable work surface and press the
sander (with the paper attached) down
on the punch. Two holes are provided in
the punch for this purpose. Use #8 flat
head screws.
Dust Collectioi
DUST COLLECT!
OPERATE THIS TOOL
RATED PAPER UNL£
COLLECTION BAG
iS
THE DUST DOOR IS i
To use the dust cr
raise the dust door by
the housing, as shown
the plastic end of the c>.
the flange around the d
it down as far as it will ;;
Figure 8,
To empty the dust
simply lift it up, off of thi
empty over a trash recc
I Bag
ON BAG:NEVER
. WITH PERFO-
SS THE DUST
IN PLACE, OR
: losed .
iiieciing system,
iiding it up into
in Fhgure 7. Lower
jllection bag over
list door and push
lo. as shown in
collection bag,
rj sander and
ptacle.
