Blacks. Decken.
Your Cleaner has a grounding system to protect you from
electric shock if some damage should occur to the wiring of the
Cleaner. This system utilizes an approved 3-conductor power
cord and 3-prong grounding type attachment plug, which should
be used with the proper grounding type receptacle, in accordance
with the National Electric Code, Canadian Electrical Code, and
Underwriters’ Laboratories specifications.
If your unit requires less than 150 volts it has a plug that looks
tike Fig. “A". It will fit directly into the proper type of 3-wire
grounding receptacle. The unit is then grounded automatically
each time it is plugged in.
Shown in Fig. “B” Is a special grounding adapter (not allowed
in Canada by the Canadian Electrical Code) which is available
from your dealer and will permit using a 2-wire receptacle. The
green grounding wire extending from the side of the adapter
must be connected to a Permanent Ground.
If the unit requires from 150 to 250 volts, it has a plug like
Fig. "C". No adapter is available and the plug must be used in
the proper 3-wire grounding receptacle.
We recommend that you NEVER disassemble the tool or try to
do any rewiring in the electrical system. Any such repairs should
be performed only by B&D Service Centers or other qualified
service organizations. Should you be determined to make a
repair yourself, remember that the green colored wire is the
"‘grounding” wire. Never connect this green wire to a “live”
terminal. If you replace the plug on the power cord, be sure to
connect the green wire only to the grounding (longest) prong
on a 3-prong plug.
GROUNDED OUTLET
%f©
/ Ф
GROUNDING ГГЛ
PRONG IS V_i^
LONGEST OF 1__ _ _ _ _
THE 3 PRONGS A
GROUNDED
OUTLET BOX
ADAPTER
GREEN
GROUNDING
WIRE
EXTENSION CORD
When using the too! at a distance where an extension cord
becomes necessary, a 3-conductor, grounding-type extension
cord of adequate size must be used for safety, and to prevent
loss of povier and over-heating. Use the table below to deter-
A.W.G. Wire size required;
Extension Cord Length in feet............. 25 50 75 100
A.W.G. Wire size required:
120 Volts............ 18 16 14 12
Before using tool cord or extension cord, inspect them for loose
or exposed wires and damaged insulation. Make any needed
repairs or replacement before using your power tool.
VACUUM CLEANERS -------------
aS/lGE
Your Black &. Decker Vacuum Cleaner is a versatile machine,
capable of most of the cleaning jobs in cars or buildings. Many
different accessories can expand its usage to practically any
type of vacuum, cleaning. Since this cleaner is intended for dry
pick-up only, do not use it in wet areas or for picking up wet
materials.
The 5-inch nozzle and 2^/2" diameter hose (standard equipment
with cleaner) are ideal for pick-up of items such as sand, dirt
and pebbles. You can increase this cleaning versatility by adding
2]A" accessories like the 14" floor nozzle, crevice tool and
round brush.
The Size-Reducer also enables you to use standard 1 Vi" dia­
meter accessories which you may already own . Here the 5"
nozzle, 9" ova! nozzle and round brush are useful cleaning aids.
All accessories are made of durable plastic and are low In cost.
SWITCH

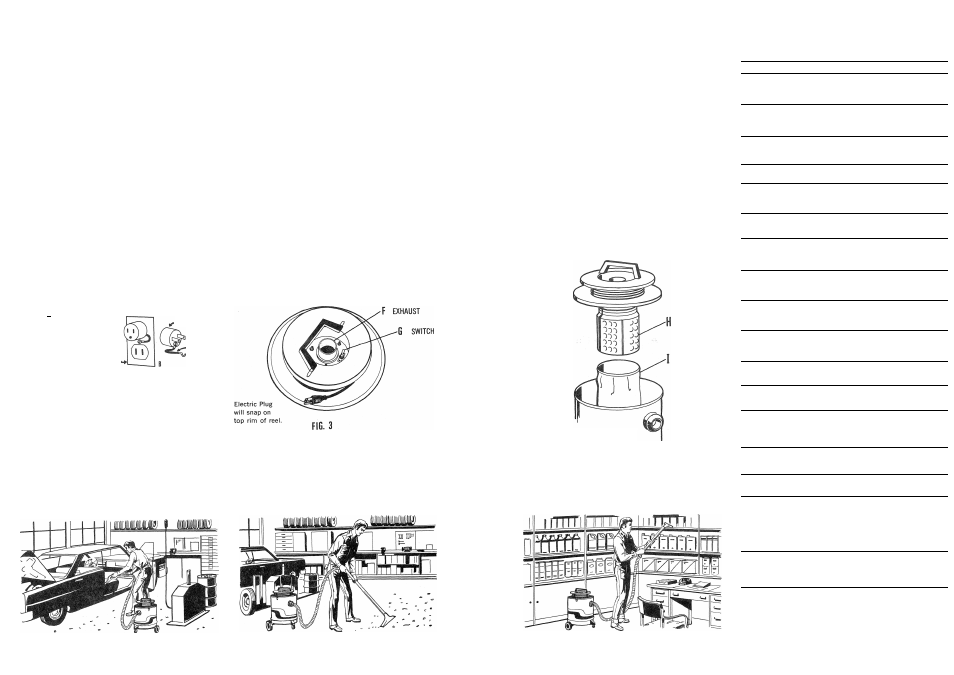

To start the vacuum cleaner, push the toggle switch lever, “G”
Figure 3, to the “ON” position. To stop the cleaner, push the
switch lever to the “OFF” position.
TO USE AS A BLOWER
If you want to use the machine to blow air, simply connect the
hose to the exhaust outlet, “F” Figure 3.
EMPTYING AND CLEANING (Figure 4)
Release spring clamps (“E”, Figure 1) on drum and lift motor
head from drum. Place it on its side. Empty collected mate­
rials from drum.
The efficiency of the vacuum cleaner is completely dependent
on the air filter bag; it should be kept clean and handled care­
fully. The bag “I” is held on the bag stretcher “H” by elastic.
Remove bag and clean by brushing dust from its surface; don't
strike bag against hard or sharp surface as it may damage the
cloth. Don't wash bag as its best filtering qualities are retained
by air cleaning only. Inspect bag periodically for signs of abra­
sion, cuts or tears. Replace bag if damaged with No. U-1470
Bag available from B&D Service Center. Failure to do so may
result in damage to the motor.
When replacing bag make sure elastic is securely fitted around
bag stretcher. Accessory paper bags (No. U-1469) are available
to be placed over cloth bag for quick, convenient replacement.
Merely throw away the old paper bag and slip a new, clean one
over the doth bag. When using paper bags, make sure that
bag is not clogged and is changed regularly. When reassem­
bling motor and tank, make sure that lid Is properly seated and
that clamps are closed securely.
BAG
STRETCHER
BAG
F I G . 4
LIFE-TIME LUBRICA HON
No periodic lubrication is required as your Vacuum Cleaner is
equipped with lubricant-sealed ball bearings. The lubricant will
last for the life of the bearing.
ACCESSORIES
CAT. NO. :TEi ME
М-14М1 Rectangular Nozzle
w/brush, 2 V 2 " diam.
For bulk pick-up
of larger items
such as leaves.
U-1462 6 ft. plastic hose
with coupling, 2 V 2 "
diam. (Sid. equip,
with cleaner)
Connect cleaner to
2 V 2 " diam. attach.
* и-мез - 2 Two 20" Nozzle
Extension Tubes,
2
1 / 2 " diam.
Use singly, or joined
together to attach
to floor tools.
^ * Ü-1464 14" Floor Nozzle with
brush, 2 V 2 " diam.
Thoroughly cleans
floors, walls.
i-Mii
ca
Small Round
Nozzle,
2 V 2 " diam.
With 2 1 / 2 " hose on
exhaust outlet,
nozzle provides
high velocity air flow.
2i/2"tolV4"diam.
Conversion Size
Reducer (Std. Equip.)
Permits use of 114"
accessories on
2 V 2 " hose.
Paper Filter Bags,
pkg. of 5 Fits over U-1470
bag for quick
replacement.
^ U-1470 Cloth Filter Bag
(std. equip, with
cleaner)
Filters air passing
through motor.
t i'1473 Round Brush, 1V 4 "
diam.
Idea! for cleaning
bins, shelves, car
floors, other small
areas.
Round Nozzle
with brush,
2 V 2 " diam.
Perfect for dirt and
shavings around
irregular surfaces
5" Nozzle, IV 4 "
diam. (Standard
Equipment)
Perfect for uphol­
stery in cars.
f Ü-14I5
L^fCZZIZZZI/
Crevice Tool, P/ 4 "
diam.
Cleans crevices in
car and cushions.
* ☆ 0-1480 Crevice Tool, 2Vz"
diam. (Standard
Equipment)
For use with 2 V 2 "
diam. hose for
cleaning crevices in
car and cushions.
t 0-1478-2 Two 20" Extension
Tubes,
IV a ” diam.
Use singly, or joined
together to attach
to floor tools.
9" Oval Nozzle
and Brush,
IV a " diam.
Cleans floor, bins,
shelves, etc.
6 ft. Extension
Plastic Hose
w/ends, 1
V a "
diam.
Use with li/i" diam.
accessories.
Dolly
(Std. Equip.)
Adds easy mobility
to Cleaner.
* No. U-1482 IVi” Diameter ASSORTMENT. Includes above items marked
at a savings.
No. 76-685 IVi” Diameter ASSORTMENT. Includes above items marked
at a savings.
t No. U-1483 W Diameter ASSORTMENT. Includes above items marked
“t”, at a savings.
