When several cuts are to be
made at different depths in the
material, the three bolts on the turret
stop are adjusted accordingly.
NOTE: The Turret Stop can be
adjusted so that the Depth Stop Bar
does not contact any screw head. To
adjust any screw in the Turret Stop,
use the wrench supplied and loosen
the lock nut. Turn the screw as
desired and retighten the lock nut.
The Depth Stop Bar can be
removed from the tool for free hand
cutting.
LOCK
hJ------ -— K N O B

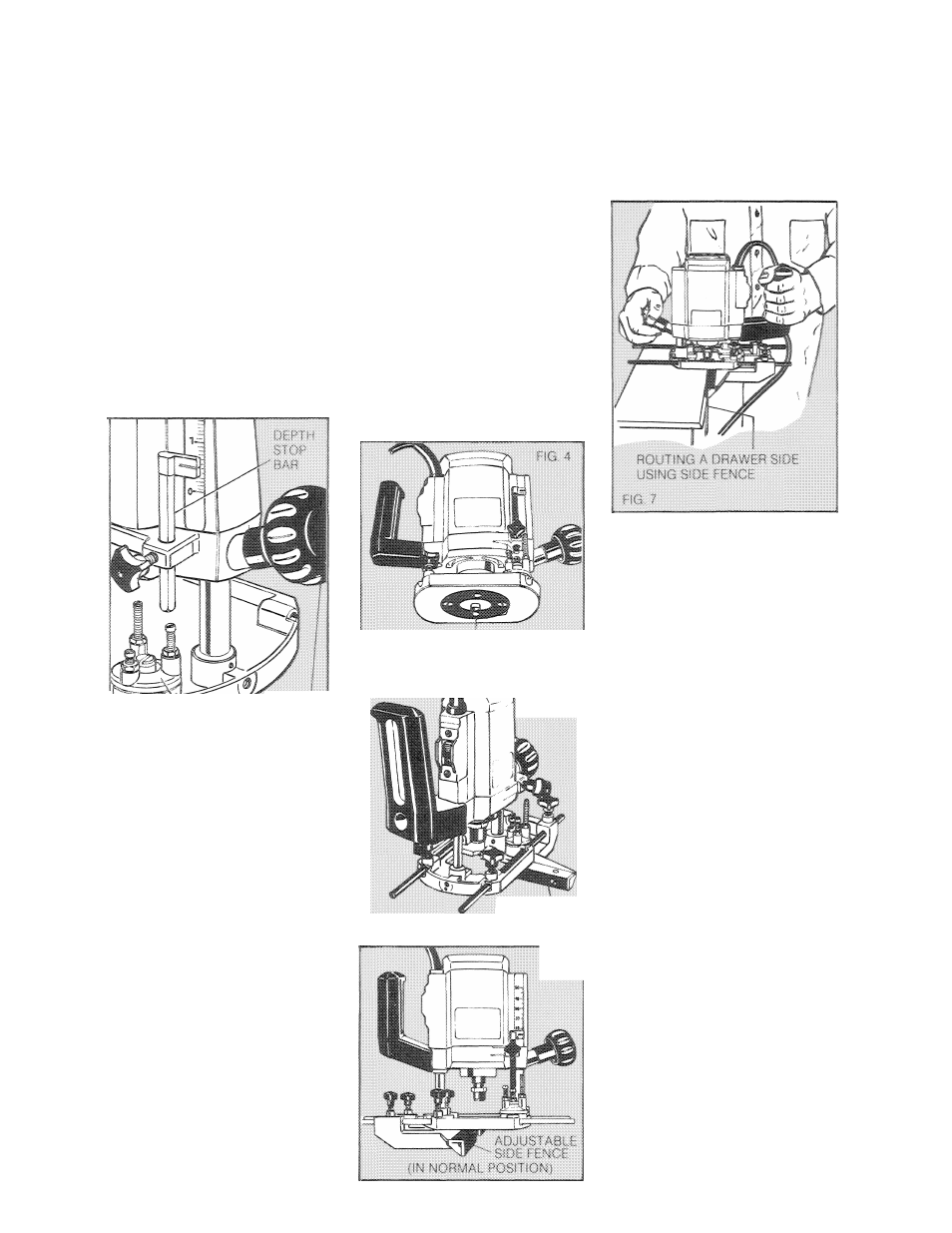

FIG. 3 TURRET STOP
Switch
TO SWITCH ON THE MACHINE
The switch positions are
indicated by red markings on and off.
Note: Always pull the plug on the
cord set out of its receptacle when
changing a cutter or fitting the
accessories in order to avoid any
chance of an accident.
Operation
After setting the cutting depth as
described on page 5, locate the router
such that the bit is directly over the
place you will be cutting. With the
router running, lower the unit smoothly
down into the workpiece. (DO NOT
JAM THE ROUTER DOWN) When
the tool reaches the pre-set depth,
tighten the Plunge Lock Knob. When
you have finished routing, loosen the
knob and let the spring lift the router
directly out of the workpiece.
GENERAL (FIGS. 4, 5, 6. 7)
All common routing tasks can be
performed with ease with the Plunge
Cut Router; Grooving, rabbeting,
recessing, veining, and profiling on all
types of wood and plastic.
Always feed the router opposite
to the direction in which the cutter is
rotating.
The router should be moved in a
clockwise direction when working
round a template, or routing free-hand.
Only carbide-tipped cutters
should be used on panels faced with
plastic laminates.
ROUTER UPiN(. U.vr.. AM-
AND GUÍO:. sMiM: ;
S DUG NCI
Accessories
Black & Decker offers a wide
array of router bits and other
accessories to enhance the versatility
of your router. Visit your local Black &
Decker Service Center where
recommended accessories can be
purchased.
If you need assistance in locating
recommended accessories for your
tool, contact:
Black & Decker (U.S.) Inc.
User Services Department
10 North Park Drive
P.O. Box 857
Hunt Valley, MD 21030-0857
Recommended accessories for
your tool are available at extra cost
from your local Black & Decker
Service Center. The use of any other
accessories or attachments may be
hazardous. If you have any questions
concerning which accessories are
recommended, contact Black &
Decker at the above address.
