ASSEMBLY
BREAKING IN THE PUMP
See Figures 6 - 9.
■ Check and tighten all bolts, fittings, etc.
■ Turn the pressure regulator knob fully clockwise to
open the air flow.
■ Place the lever of the pressure switch in
‘OFF’
position
and plug in the power cord.
■ Open the drain valve completely.
■ Place the lever of the pressure switch in
‘AUTO’
position and run the air compressor for 10 minutes to
break in pump parts.
■ Place the lever of the pressure switch in
‘OFF’
position.
■ Close the drain valve.
PRESSURE SWITCH
(ON/OFF)
PRESSURE
REGULATOR KNOB
QUICK
COUPLER
SAFETY
VALVE
TANK
PRESSURE
GAUGE
REGULATOR
PRESSURE
GAUGE
LEVER
IN ‘OFF’
POSITION
LEVER
IN ‘AUTO’
POSITION
DRAIN VALVE

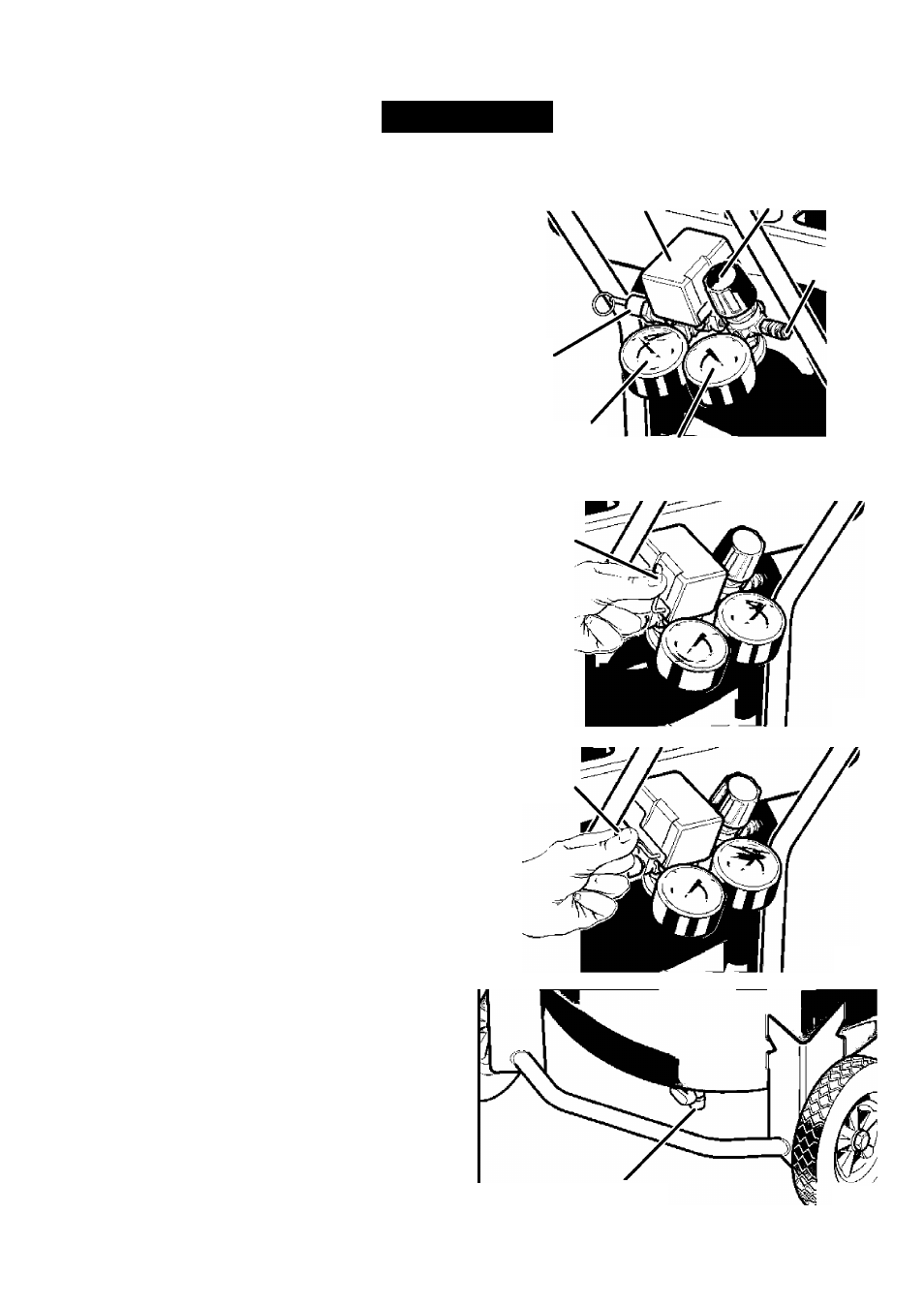

Fig. 6
Fig. 7
Fig. 8
Fig. 9
