Double Insulation
Your unit is Double Insulated to permit use on non-grounded circuits. This
means that it is constructed throughout with two separate “layers” of electri­
cal insulation between you and the tool’s electrical system.
Tools built with this insulation system are not intended to be grounded. As a
result, your tool is equipped with a two prong plug which permits you to use
extension cords without concern for maintaining a ground connection.
NOTE: DOUBLE INSULATION does not take the place of normal safety pre­
cautions when operating this tool. The insulation system is for added protec­
tion against injury resulting from a possible electrical insulation failure within
the tool.
CAUTION: When servicing all tools, USE ONLY IDENTICAL REPLACEMENT
PARTS. Repair or replace damaged cords.
Extension Cords
Double insulated tools have 2-wire cords and can be used with 2-wire or 3-
wire extension cords. Only round jacketed extension cords should be used,
and we recommend that they be listed by Underwriters Laboratories (U.L.)
(C.S.A. in Canada). If the extension will be used outside, the cord must be
suitable for outdoor use. Any cord marked as outdoor can also be used for
indoor work. The letters "WA" on the cord jacket indicate that the cord is suit­
able for outdoor use.
An extension cord must have adequate wire size (AWG or American Wire
Gauge) for safety, and to prevent loss of power and overheating. The smaller
the gauge number of the wire, the greater the capacity of the cable, that is 16
gauge has more capacity than 18 gauge. When using more than one exten­
sion to make up the total length, be sure each individual extension contains at
least the minimum wire size. To determine the minimum wire size required,
refer to the following chart.
CHART FOR MINIMUM WIRE SIZE (AWG) OF EXTENSION CORDS
NAMEPLATE
RATING-AMPS
TOTAL EXTENSION CORD LENGTH - FEET
25 50 75 100 125 150 175 200
0-10.0
10.1- 13.0
13.1- 15.0
18 18 16 16 14 14 12 12
16 16 14 14 14 12 12 12
14 14 12 12 12 12 12 —
Before using an extension cord, inspect it for loose or exposed wires, dam­
aged insulation, and defective fittings. Make any needed repairs or replace
the cord if necessary.
Side Handle
For operating convenience, the side handle can be rotated to any position
around the tool (360^). NEVER OPERATE TOOL WITHOUT SIDE HANDLE IN
PLACE.
Depth Rod
To adjust the depth rod, loosen the han­
dle and move rod so that the distance
between the end of the rod and the end
of the bit equals the desired drilling
depth (Figure 1).
NOTE: Bit must be fully seated in the
hammer when measuring. Figure 2
shows how the depth rod contacts the
work surface when the desired hole
depth is reached.

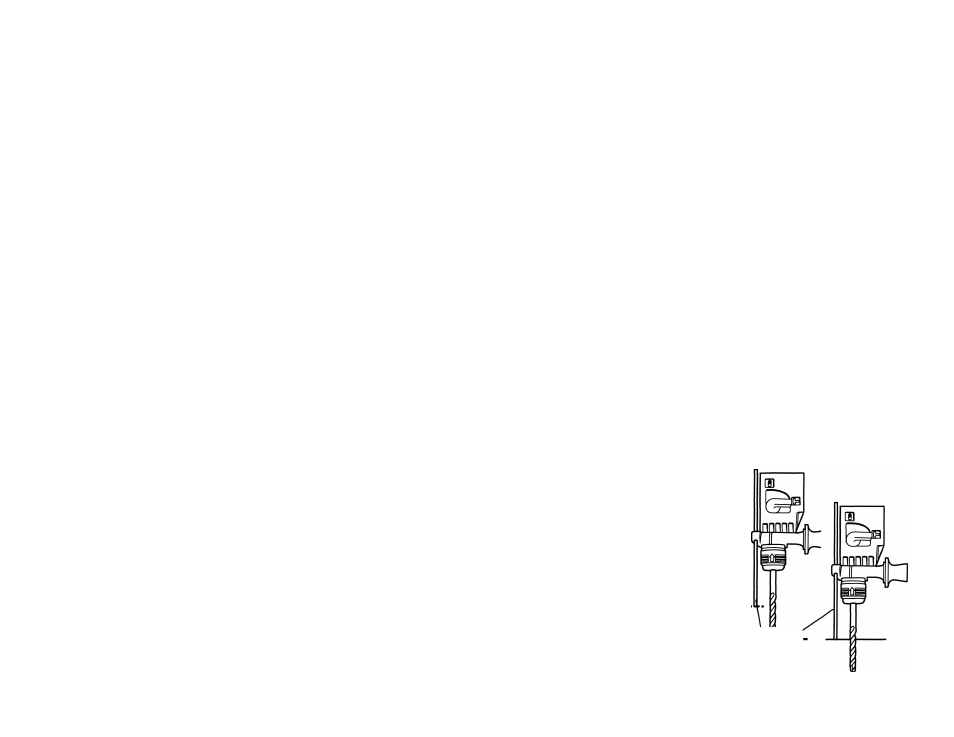

Figure 1 Figure 2
DEPTH ROD
