Atlas Sound RPS24-05 User Manual
Installation instructions, Atlassound.cdm, Rps24-05 power supply
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

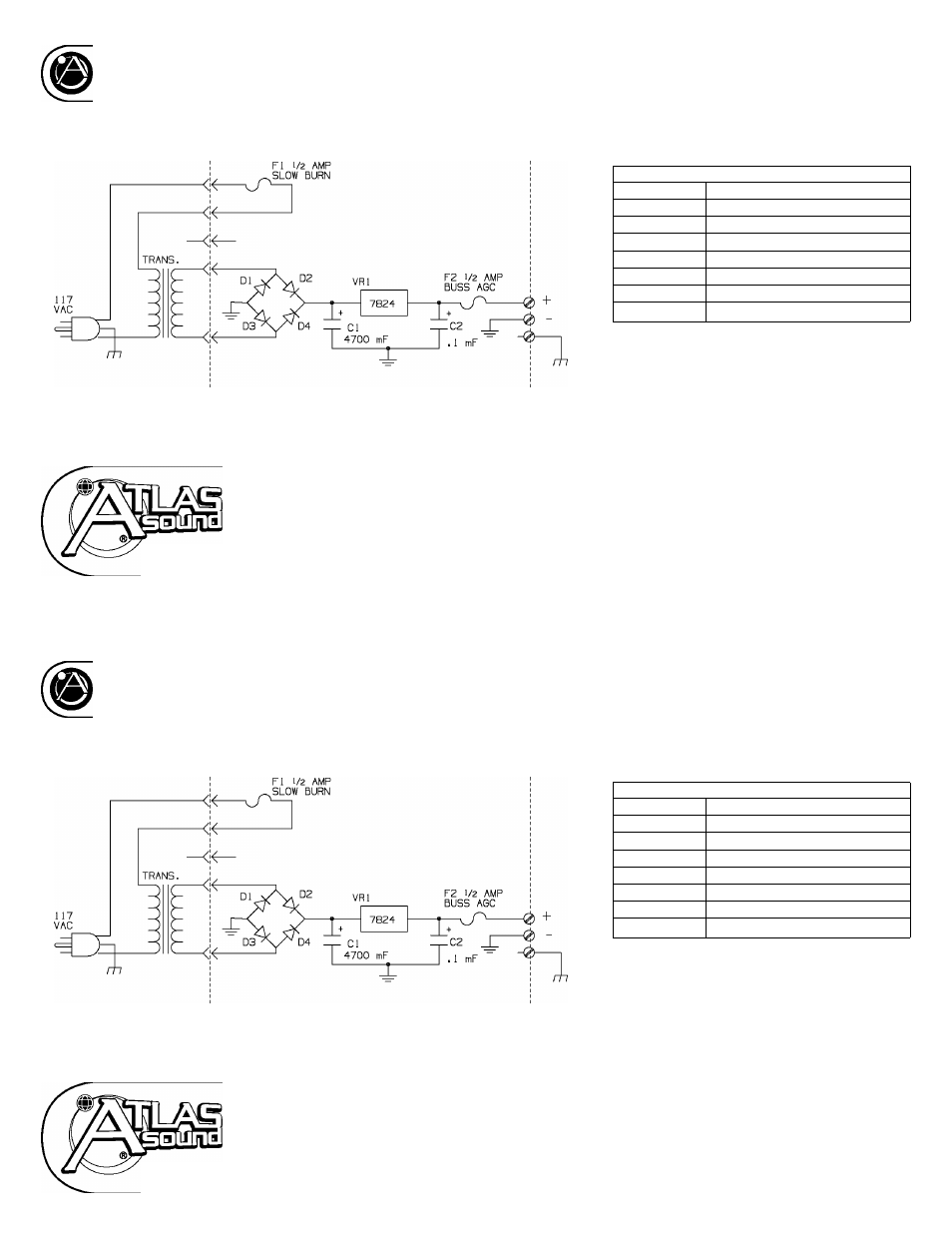

RPS24-05
POWER SUPPLY
INSTALLATION INSTRUCTIONS
INPUT# 117 VAC @ 60 HZ
PARTS LIST
REFERENCE
DESCRIPTION
T1
POWER TRANSFORMER
F1, F2
FUSE 1/2 AMP SLOW BURN
D1-D4
DIODE 1A. 200 PIV
C1
CAPACITOR 4700 mF
C2
CAPACITOR .1 mF 100V
VR1
VOLTAGE REGULATOR 24V
-
PC. BOARD BLANK
Specifications are subject to change without notice
AtlasSound.com
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A.
©2002 ATLAS SOUND LP
Printed in U.S.A.
00602
TELEPHONE: (800) 876-3332 •
ATS001301 RevC 6/02
FAX: (800) 765-3435
PN 214073
