Thank you for your choosing this product
color rearview camera
VTL-402C/VTL-422CUser’s manual

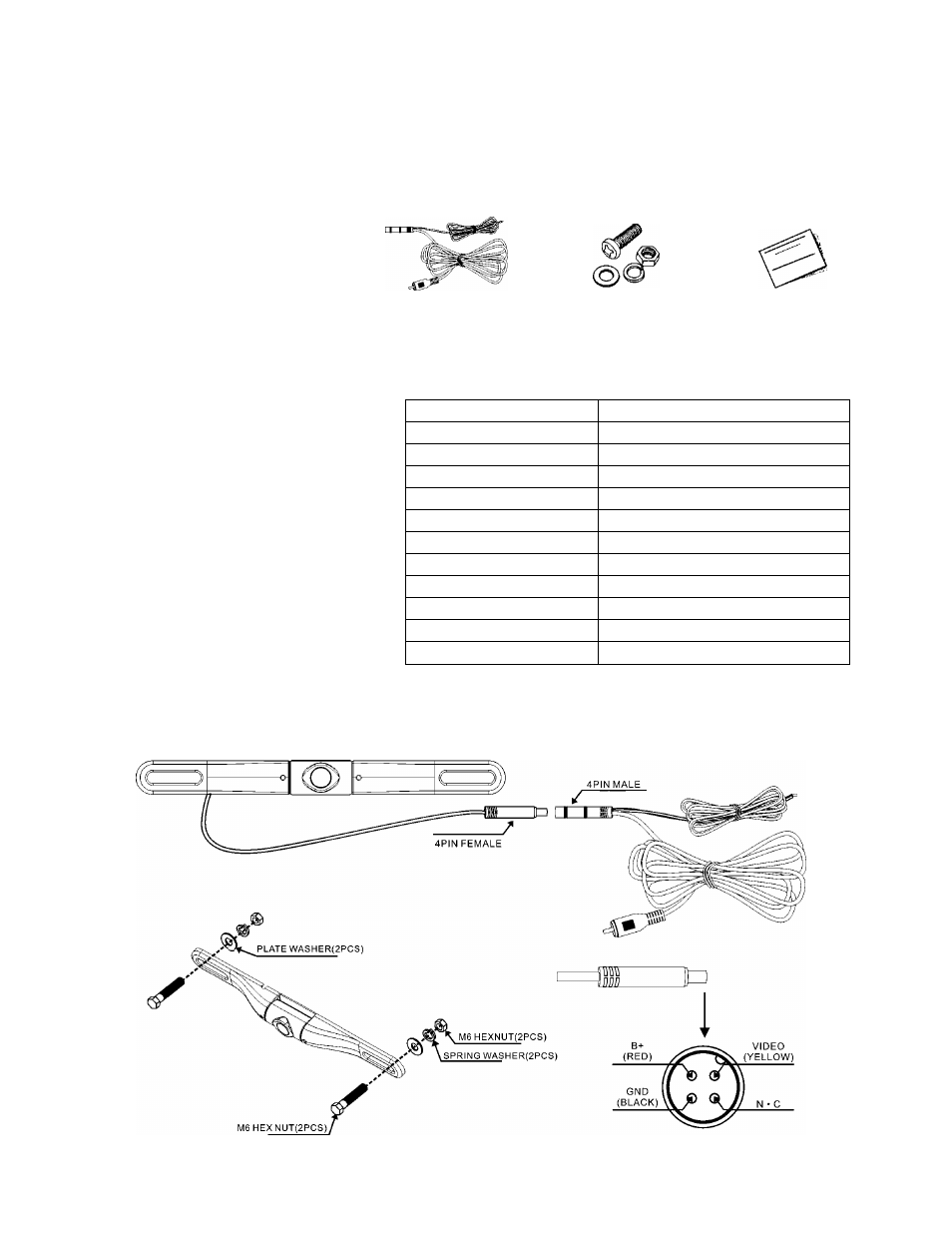

1 .Parts List
i
o
A CameraXI
B Camera power extending lineXI
C ScrewX2
D User’s manual X1
2.Function Introduction
Key features
High sensitive 1/4”DSP ColorCMOSbuilt-in
420TVL Horizontal resolution
Remarkably True color reproduction
Remarkable low Lux performance of 0.5 Lux at F2.0
Excellent Auto White Balance
Waterproof(IP67)
Specification
*Super sensitive low lux image capture-0.5 lux
It is at least 5 times brighter than ordinary color cameras
at dark illumination featuring 0.5 lux at F2.0 using super
sensitive CMOS technology.
'Beautiful design & anti-scratch coating
The camera design matches well with the products quality.
It looks so elegant as much as the camera stands for.
The unique face aims to best fit to the environment decorative
to any place.
It lasts its beautiful shape
long time with scratch-free coating.
Image Sensor
1/4"Color CMOS(PC1030)
System
NTSC
Effective Pixels
656X492
Horizontal Resolution
420TVL
Viewing Angle
150“
Min. Illumination
0.5LUX
Waterproof
IP67
Video Output
RCA connector, 1,0Vp-p,75Q
Current Consumption
50mA, Max300mA
Supply Voltage
DC12V±10%
Operating Temperature
-4°F-140T, RH95%MAX
Storage Temperature
-22T-149°F, RH95%MAX
3.Wiring Instruction&Pin Configuration
