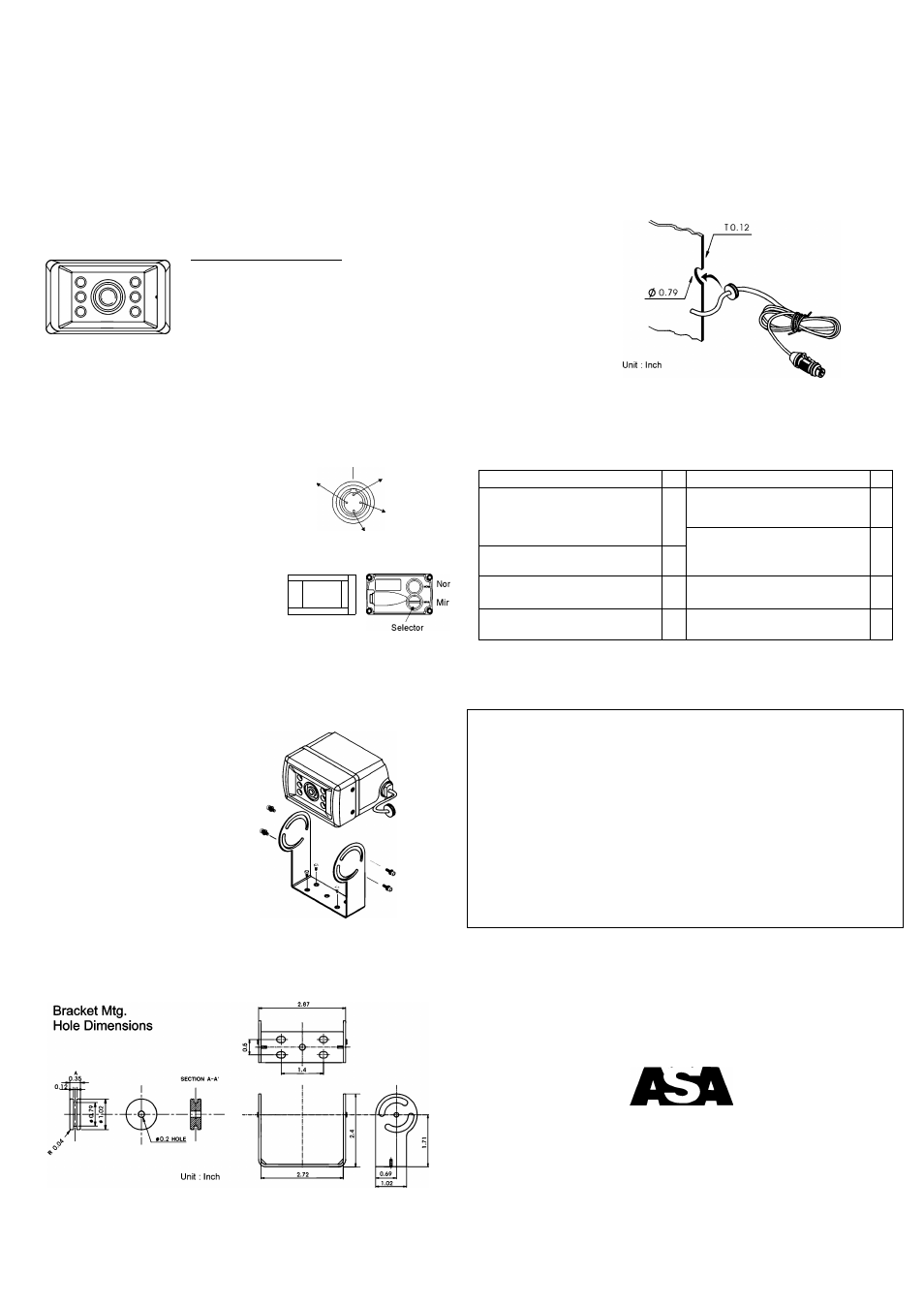

Voyager
NTSC SYSTEM VCCS130HP
VCCS130HP Features:
• Uses Advanced CCD technology
• Compact / Lightweight Aluminum Die Cast Body
• Waterproof Design
• Microphone
• Normal / Mirror Image switch
• Adjustable Mounting Angle
• Wide Angle Lens
• Aluminum Bracket and SS. Hardware included
• Enhanced IR LED Low Light Enhancement
• Excellent clear Image at a Dark Circumstance
• Zero Lux Sensitivity
Recommended grommet Hole
& Mtg. thickness
Contents:
Camera
Bracket
Hardware Kit
Installation and Pin Out:
Waterproof Camera Connector
Standard Cable Connector /
/
Grommet To Seal Through Vehicle Exterior
Arrow Locking Location
Audio
Video From
Camera
12V DC
Ground/Shield
Cable Connector
End View
_______^
O
o(ra)@
J:
LED Assisted
Illumination Microphone
Camera to bracket hardware
Bracket to vehicle hardware
Specifications
Qty
Specifications
Qty
\ 1 Hex Socket Head M4X10L
@ [)||llHlllHliill Stainless screws
4
Tapping P/H W/Washer
M
'PCCCCKV-
^ 5X16mm Stainless screws
4
B _______ A
/ Machine Screw T/H
0 M5X16mm Stainless
4
Spring Washers
4X7X1.2mm Stainless
4
g \Afeshers
V__ / 4x1 Ox.5mm Stainless
4
Locking nuts M5 stainless
4
Allen wrench
1
Installation
Screw For Use
Hex Socket Head M4X10L Stainless screws
Spring Washers 4X7X1.2mm Stainless
Flat Washers 4x10x.5mm Stainless
Allen wrench
Tapping P/H WA/Vasher 5X16mm Stainless screws
Machine Screw T/H M5X16mm Stainless
Locking nuts M5 stainless
Specifications
Signal System
NTSC
Image Sensor
1/3" SONY-HAD Color CCD W/electronic auto-iris
270K pixels
Viewing Angle
104°(H), 78“(V)
Outer Dimensions
68 (W) X 40 (H)X 64(D) mm
2.7 (W)X 1.6(H) X 2.6 (D) Inch
Weight
0.3kg/0.6lbs
* Specifications are subject to change without notice.
