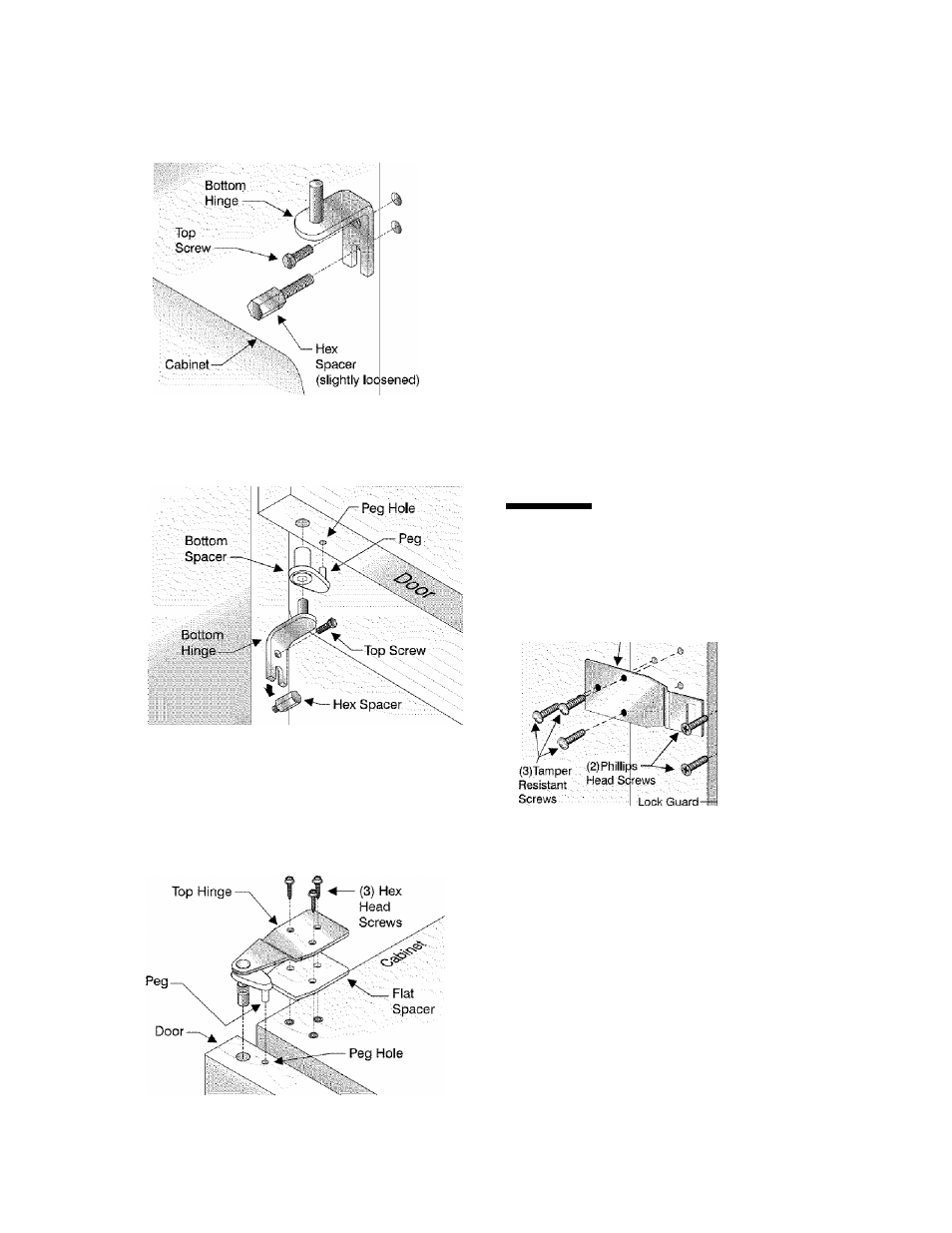

5 . Remove top screw from bottom hinge. Remove top
screw from opposite side of appliance.
6
.
Slide bottom hinge onto hex spacer and attach top
screw to cabinet. Retighten both hex spacers.
7. Remove the top hinge assembly and the bottom
spacerfrom the door and reverse their position,
making sure the pegs are properly seated in the
peg holes.
8. Rotate the door 18Cf and re-install on bottom
hinge. Hold door in closed position.
9. Rotate the top hinge to align the mounting
holes.Re-position the flat spacer between the hinge
and cabinet and install the three (3) hex head
screws.
10. Install hole plugs in each of the hinge holes on
opposite side of cabinet.
11. Re-install toe plate with two (2) screws.
Door Lock
Note: The lock strike should angle out and away
from the cabinet.
1. Install the lock strike on the lock side of the
cabinet, using the three (3) tamper resistant
screws. Install the three remaining buttons in the
holes on the opposite side of the cabinet.
2. Install the lock guard in the side of the door
cabinet by installing the two screws into the
corresponding screw holes.
A CAUTION I The tamper resistant screws cannot
be removed after the lock strike is secured to the
cabinet.
Lock Strike.
Cabinet poor
