BLANCOPERFORMA BAR SINK Undermount
Model 513-654
FEATURED MODEL
513-654 Right Hand Bar, 7" bowl depth
ADDITIONAL MODELS
513-640 Double Bar, 7" & 7" bowl depths
513-643 Small Bar, 9" bowl depth
513-653 Left Hand Bar, 7" bowl depth
FEATURES
• 18 gauge, 304 series stainless steel
• 18/10 chrome/nickel content
• Long-lasting, easy-to-clean, satin polished finish
• Sound deadening insulation
• Rear drain placement
CODE/STANDARDS COMPLIANCE
ASME 112.19.3-00
lAPMO/UPC listed
OPTIONAL ACCESSORIES
Sink Grid:
220-582
Colander:
514-015
WARRANTY
Blanco America’s BLANCOPERFORMA sinks feature a
“NO HASSLE” LIMITED LIFETIME WARRANTY to be
free of all manufacturing defects under normal use.
See our complete warranty for details.
While Blanco America endeavcrs to provide accurate
Information, all dimensions are nominal, cannot be
guaranteed, and are subject to change cr cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
PRODUCT SPECIFICATION
Undermount right-hand bar sink to be single
bowl design, 11" in length and 17-1/2" in front-
to-back depth. Sink to be made from 18 gauge,
304 series stainless steel, with 18/10 chrome/
nickel content and long-lasting, easy-to-clean,
satin polished finish. Sink to feature rear drain
placement. Sink to be Blanco Model 513-654,
with bowl depth of 7".
MODEL 513-654

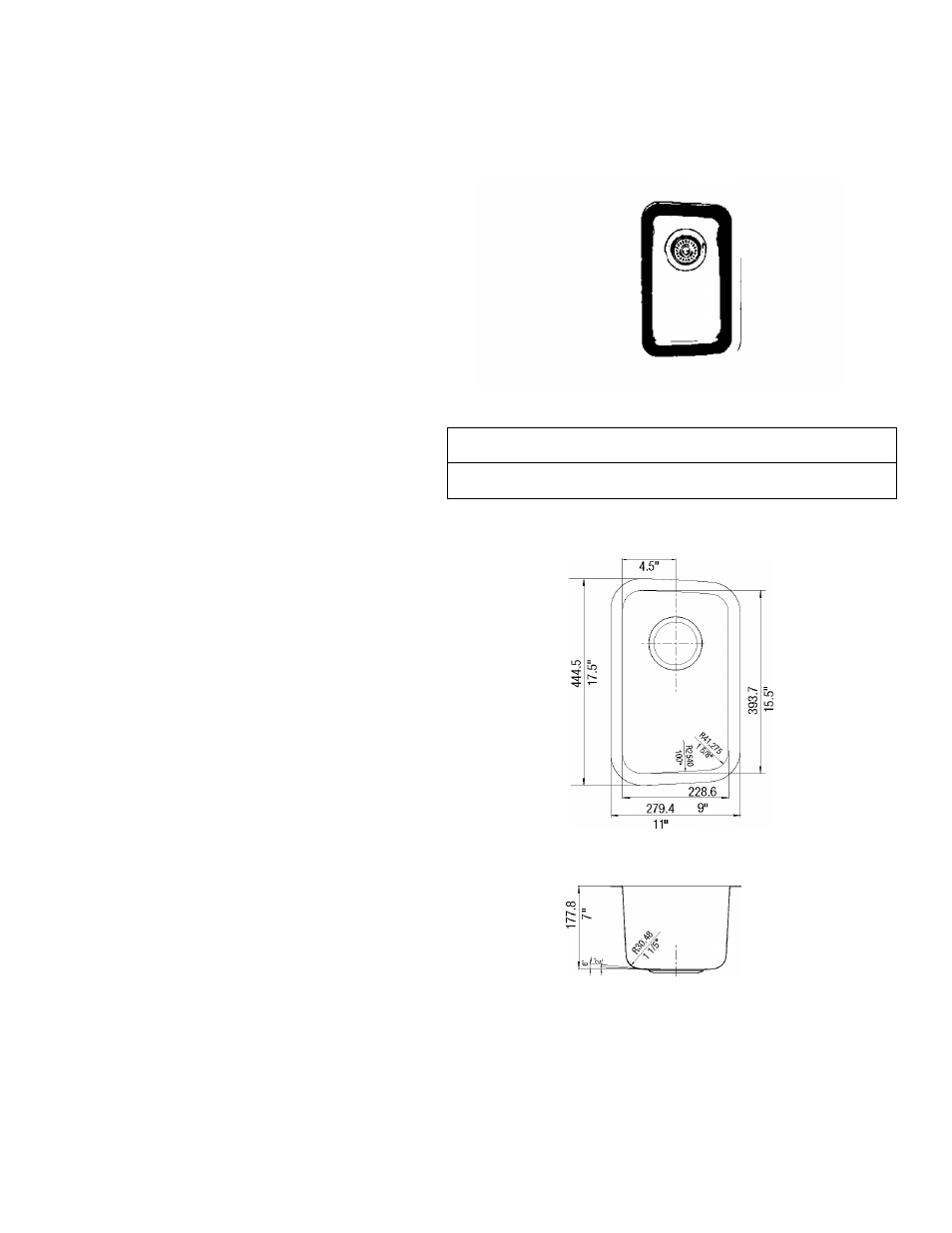

NOMINAL DIMENSIONS
CUTOUT
BOWL
DRAIN
MODEL
OVERALL
SIZE
DEPTH
DIAMETER
513-654
11 x17-1^
Template provided with
approximate 1/8" reveal
7
3-1/2
DXF cutout templates available on our web site.
