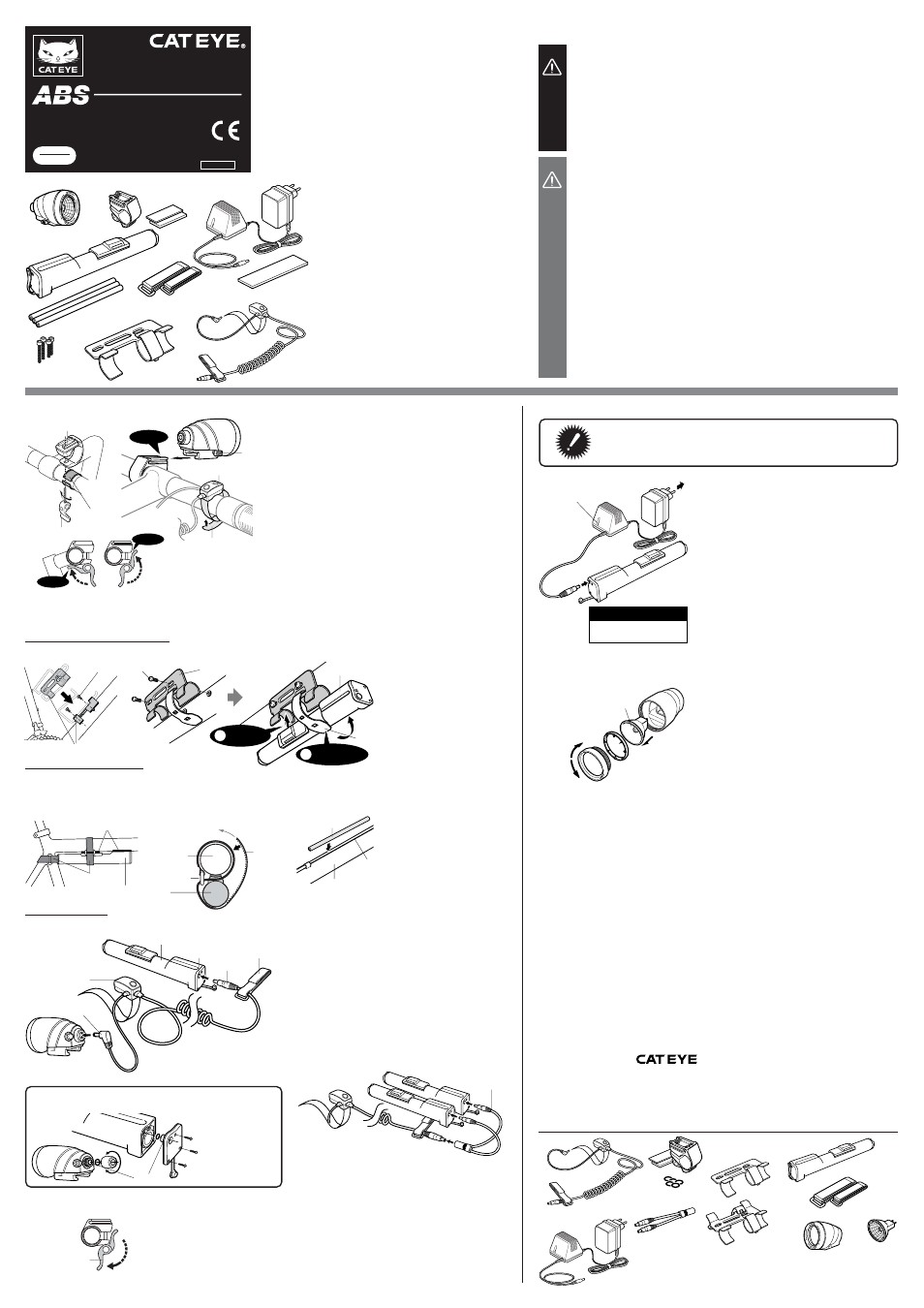

CatEye ABS-10 User Manual

CatEye Safety

A d v a n c e d B a t t e r y S y s t e m

Ni-MH

6 v

Pat and Design Pat. Pending

ABS10W-020830 066640034 1

SINGLE

Rechargeable Head Lamp

ABS-10

Instruction Manual

8-10

Standard Charging Time

hours

CO.,LTD.

Lamp Unit

Bracket (H-32)

Rubber Pad

Battery Charger

Battery Belt (L/S)

Battery Pack

Cable Cover

Battery Pad

Switch Unit

H o l d e r M o u n t i n g
Bolts (L x 2, S x 2)

Bracket (H-32)

Holder

Lever

Switch Unit

Velcro

Rubber Pad

Quick lever screw

Holder mounting bolts

Holder

Battery Pack

Strap

Holder

When attaching to bottle cage

Attach the holder onto the down tube using the holder mounting bolts (L or S).

When attaching to frame

Fix the battery pack firmly to the frame, using the battery belts.
Cut the battery pad and fit it between the top tube and the battery, so that
the battery will not move when riding.

How to run the battery belt
through the slot

Cable Cover

Cable

Top Tube

Ring

Battery pack

Battery Belt

Battery Pad

Battery Pack

Jack

Cord belt

Plug

Switch Unit

Plug

Joint Cord
#533-8783

Release

Quick release lever

Pad

There is a pad inside of the jack socket to prevent the plug
from falling off the socket. When this pad is deteriorated

and you feel the
plug's connection
is loose, replace
the pad with a
new one.

■RECHARGING INSTRUCTIONS

The home power outlet

Charge indicator

■HOW TO REPLACE THE BULB

Disassemble the lamp unit as illustrated.

Bulb

#533-8670
ABS Switch Unit

#533-8795
ABS Jack Packing

#533-8783
ABS Joint Cord

#533-8880
Bracket (H-32)

#533-8671
ABS Holder

#533-8785
ABS Double Holder

#533-8790
ABS Battery Pack

#533-8784
ABS Battery Belt

#534-0582 10W
6V ABS Wide Bulb

#534-0589
ABS Lamp Body

ABS Battery Charger
#533-8676 for U.S.A & Canada
#533-8674 for Europe
#533-8675 for AS
#533-8672 for UK

Frame

Velcro

CLICK!

Fit inside

Wind stape

SAFE OPERATIONS (IMPORTANT)

• Never short-circuit the terminal of the battery pack and the plug of the

battery charger. It may cause the battery to over heat, resulting in fire or
damage of the components.

• Securely connect the plug so that the light will not turn off while riding,

or the cord will not hinder riding.

• Never use the ABS if the cord of the battery charger or the switch unit is

damaged, Consult with the shop where this lamp kit was purchased.

• The lamp body becomes extremely hot when turned on. Never touch the

lamp body or the lens until thoroughly cooled. Injury may result.

• Use only the designated battery charger for charging.

• Never mix different types of battery packs.

• Safely and properly dispose of the old battery according to your local regula-

tions when it comes to the end of its useful life.

• This lamp kit is not intended for use by young children or infirm persons with-

out supervision. Young children should be supervised to ensure that they do
not play with this applince.

• The battery’s nature will affect the light output, High light output will remain

just before the battery runs out, After that the output drops suddenly. Take
precautions against such a situation and prepare a spare light or spare bat-
tery packs.

• Long periods of non-use will lower the voltage of the battery and will naturally

self discharge. Always charge the battery before using.

• Overdischarge (leaving the light on after the power is completely gone) short-

ens the performance life of the battery.

• If the lamp body or parts become dirty with mud, etc., clean with a soft cloth

which is moistened with mild soap. Never apply paint thinner, benzine or alco-
hol; damage will result.

■HOW TO SETUP

Attach the bracket (H-32) to the handlebar. Turn over
the quick lever and it is fastened.
Slide the lamp units onto the brackets. To remove the
lamp body, slide it forward while pushing the lever.
Note: Use the quick lever to adjust 10

horizontally.

Warning!!!

When removing the lamp body, make
sure that it has been cooled.

Attach the switch unit onto the handlebar where it will
not hinder the braking and shifting operation.

Connecting Battery Pack and Cord

Choose your favorite location to attach the battery packs.

Connecting Cord

Connect the battery pack, joint cord and the switch unit as illustrated.

Attention:
• Secure the cord along the frame with the cord

belt, so that it will not hinder riding.

• Wind the cord round the frame so that it will not

hinder riding.

• Securely connect the jacks to the plug.
Note: You can connect one more battery pack (avail-

able as an optional part). This way the run time will
be double. For this connection, the Double Holder
(#533-8785) is recommended.

Caution:
In this double connection, the two batteries
must be evenly discharged. Do not mix bat-
teries that are in different states of charge.

■HOW TO SWITCH ON/OFF

The switch unit controls the operation of the lamps.
Run Time:

1.5 hrs

Note: The run time shown here is the calculated figure.

• The beam angle must be downwards.

• To adjust the angle of the lamp unit, use the quick lever.

READ ALL INSTRUCTIONS BEFORE FIRST USE

Thank you for purchasing the CAT EYE ABS Advanced
Battery System, a unique 6 volt rechargeable head lamp
series. ABS-10 is a combination system of a lamp, bat-
tery pack and charger. Before operating, thoroughly fa-
miliarize yourself with this manual so that you under-
stand the light's safe and correct operation. Please keep
this manual, along with the warranty card, for future ref-
erence.

BEFORE FIRST USE:

The factory-loaded battery pack is not
fully charged; the charge is useful only
for testing ! Before first use, charge the
battery fully following the instructions
on [RECHARGING INSTRUCTIONS].

CONTENTS

The ABS-10 are the combined system
of the following parts. Make sure that
your package includes all the parts.

• Recharge after thorough discharge. (in order to prevent

memory after effect)

• Use exclusive charger.

• Recharge only when battery power has

completely diminished.

• Recharged both batteries at the same

time.

• Use only the ABS recharger.
• For indoor use only.
Note:
• Red indicator color ---- Empty/Not charged.
• Green indicator color - Fully charged.
• Battery life will vary due to adverse condi-

tions.

• Fully charged batteries that yields no power

means battery life is dead.

Caution:
• Do not rotate the bulb but pull it straight out.
• Use only 10W bulb. Other bulbs will cause

the lamp body to melt.

• To replace bulb, first let it cool down.
• Use only the CAT EYE 6V halogen bulb.

■SAFETY SYSTEM (AUTO-RESET FUSE)

When an electrical surge or malfunction occurs in the circuit or the temperature of
the battery rises, the fuse blows due to its safety system and the circuit will be
closed. After leaving it for a while, the fuse will automatically recover.

Note: If the fuse continues to blow, or if the fuse does not recover, call the appro-

priate service center for assistance.

■SPECIFICATIONS

Bulb:

6V Halogen wide bulb (10W)

Battery pack:

Hi Ni-MH battery

6V 3000mAh

Battery charger:

Hi Ni-MH charger

CHR-3005

Standard charging time:

8-10 hours

Temperature range:

Charging: 0

C - 40

Operating: –15

C - 45

Recharge/discharge number of times:

about 500 times (until the rated capacity drops to 50%)

* The specifications and design are subject to change without notice.

■

LIMITED WARRANTY

2-Year Warranty:

Only for Lamp unit, switch unit, battery pack and charger
(excluding bulb and deteriorated battery)

If trouble or damage occurs during normal use, the product will be repaired or replaced free of
charge. Type your name, address, date of purchase and the situation of trouble clearly on the
warranty certificate, and send it back to the appropriate service center together with the prod-
uct. Insurance, handling and transpor tation charges shall be borne by the customer. After
being repaired or replaced, the product will be shipped back to the customer.

Address for service:

2-8-25 Kuwazu, Higashi Sumiyoshi-ku Osaka 546-0041 JAPAN
Attention: CAT EYE International Customer Service Section
Service Center for the United States Customers
CATEYE Service & Research Center
1705 14th Street #115, Boulder, CO 80302
Phone: 303-443-4595 Fax: 303-473-0006 Toll Free: 800-5CATEYE (800-522-8393)
e-mail: [email protected] web site: www.cateye.com

Attention:
Fix the battery pack se-
curely with the hold-down
straps. For safety's sake,
also use the battery belts
(velcro straps) to secure
the batteries.

Attention:
If the cable is not covered
by cable housing, use the
included cable cover to
prevent direct contact be-
tween the cable and the
belts. (Cut the cable cover
to the suitable length.)

Important Note
