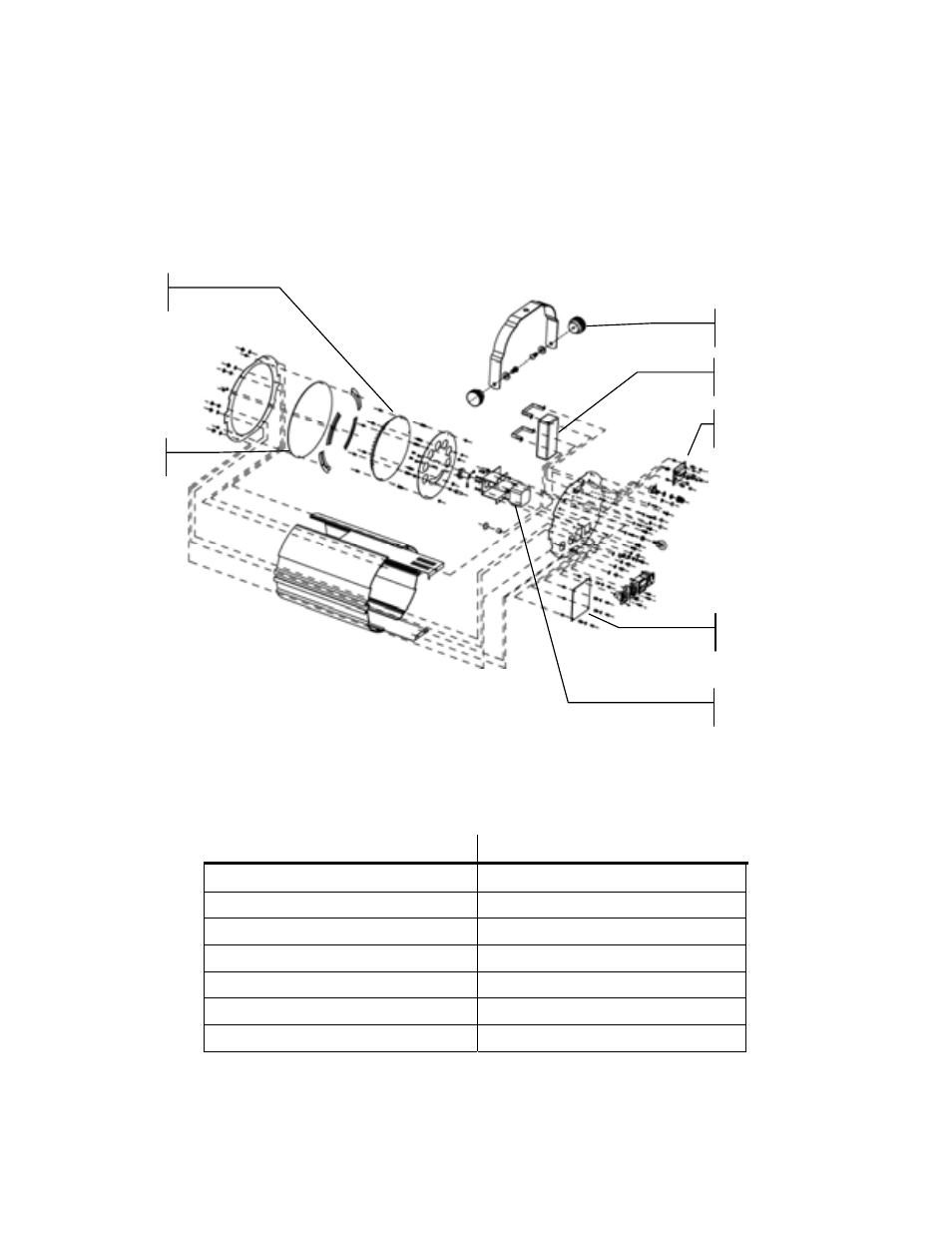

Blow-out Diagram

1

3

Description

Part Number

1 LED PCB assembly

P222‐VUE41

2 Front Fresnel lens

P150‐VU2LNS

3 Bracket adjustment knob (of 2)

P111‐VUEBRT

4 Electronic transformer

P140‐

VUEIITR

5 Display PCB

P172‐VUE41

6 Master PCB

P177‐VUE41

7 Stepper motor

P110‐VUE41

2

5

4

6

7
