Hyundai H-CDM8019 User Manual
Page 9
10

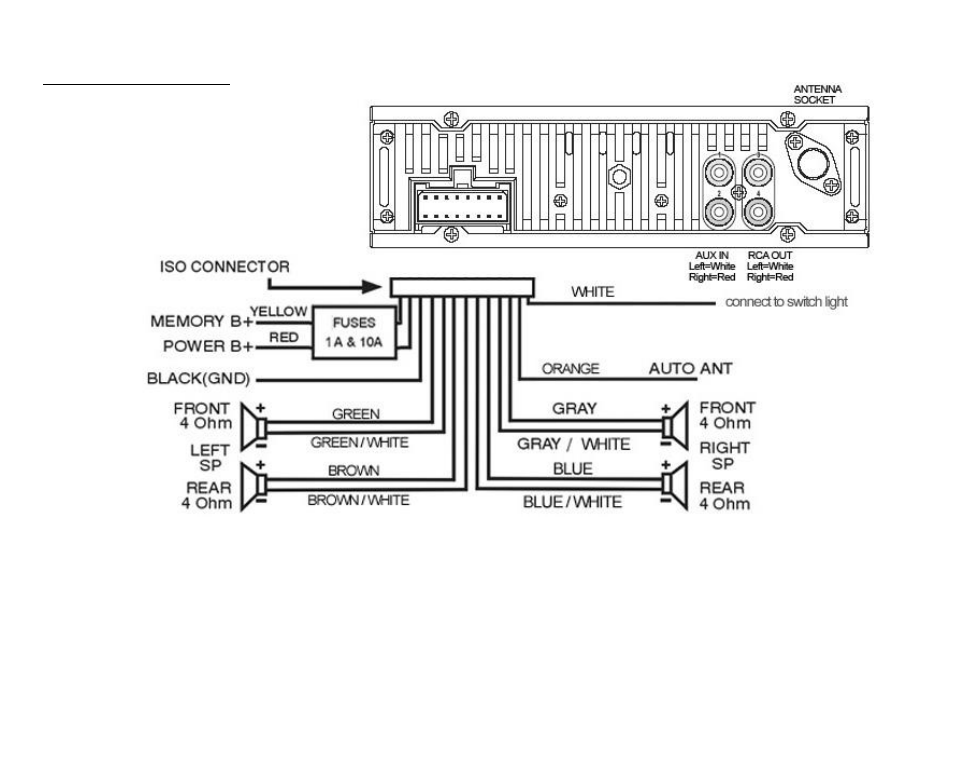

Electrical connections
Speaker Wiring Notes
Follow the above wiring diagram to install the head unit with new or existing speakers.
This unit is designed for use with four (4) speakers with the impedance between 4 Ohms to 8 Ohms.
An impedance load of less than 4 Ohms could damage the unit.
Never bridge or combine the speaker wire outputs. When not using four speakers, use electrical tape to tape the
ends of the unused speaker outputs to prevent a short circuit.
Never ground the negative speaker terminals to chassis ground.
