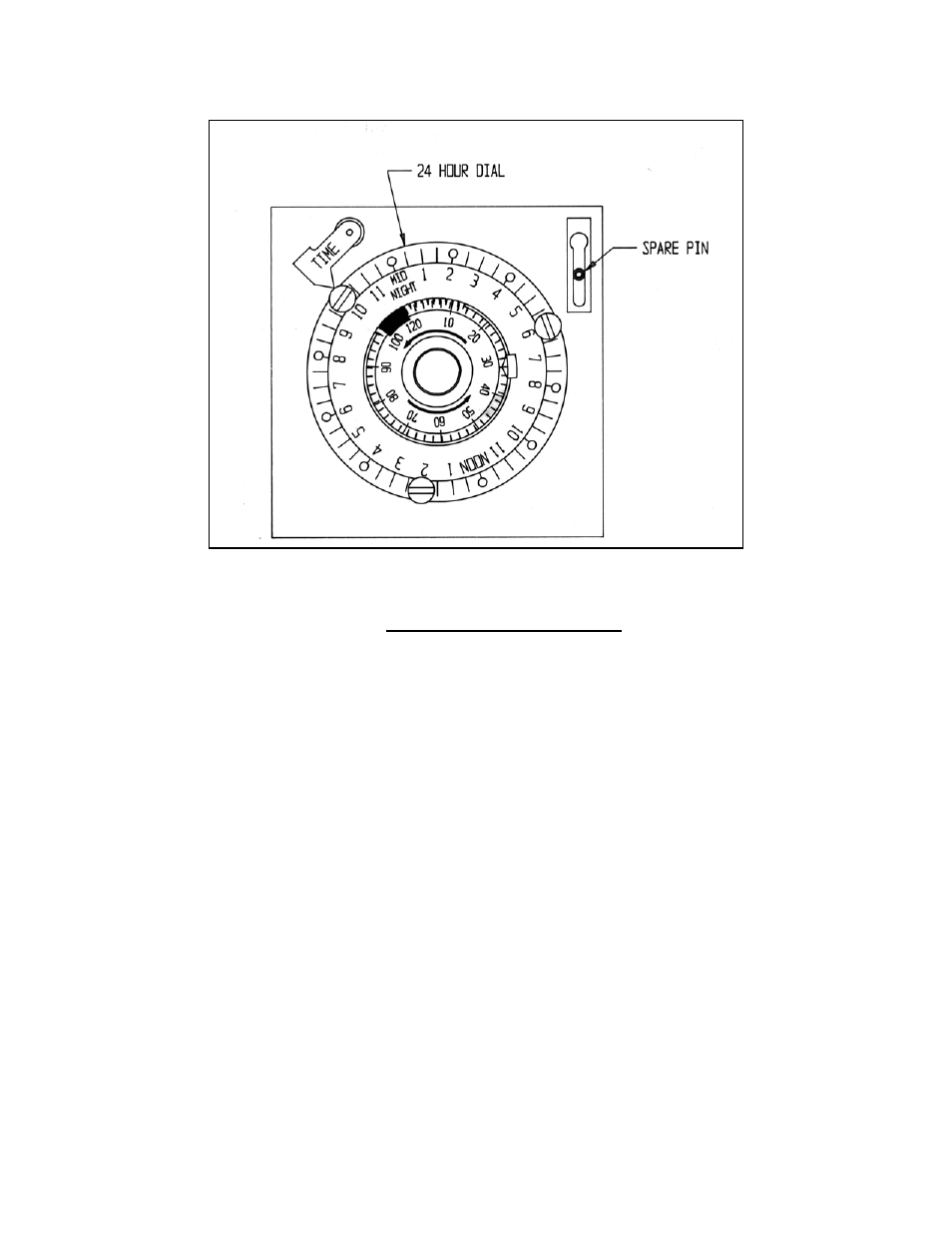

FIGURE

8

DEFROST TIMER SETTING










EVAPORATOR ASSEMBLY

All refrigerators and freezers have an easily accessible, easily serviceable,
performance rated, forced-air evaporator assembly which utilizes a plasticized fin
coil for extended life (see figure 9).

LOW-PROFILE, CEILING-MOUNT EVAPORATOR ASSEMBLY
The low-profile evaporator system is comprised of a generous sized, evenly
matched evaporator and air circulating fans contained within an easily accessible,
low silhouette, interior ceiling mounted housing.

- 16 -
