18

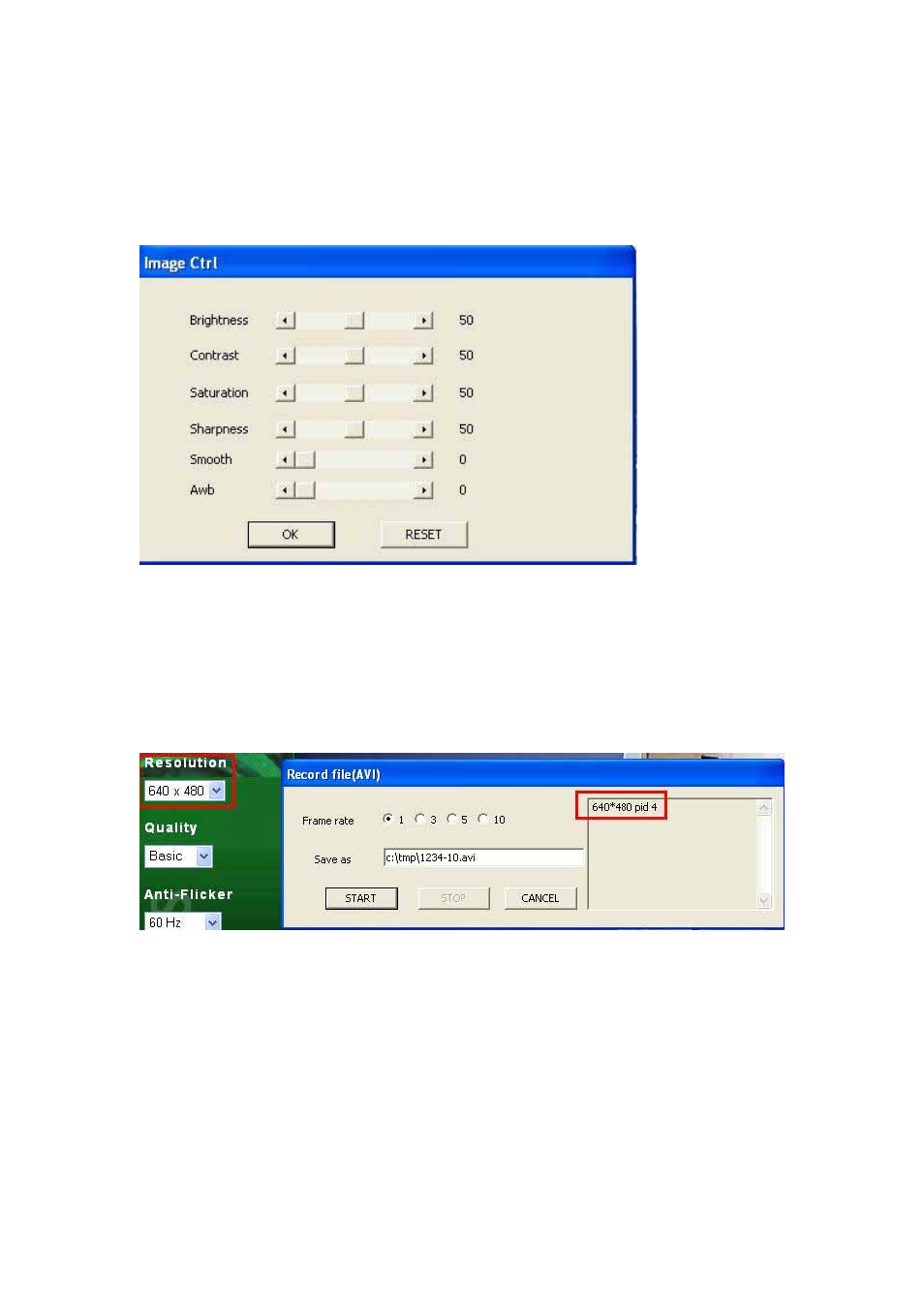

1. Image: parameter setting
Right click mouse on the motion image, choose “image” can open corresponding windows. Users
can adjust Brightness, Contrast, Saturation, Sharpness, Smooth and Awb(Auto White
Balance). Click “rotate” will circumrotate the image. Click “reset” will back to default
setting.
2. Record AVI:
Right click mouse on the motion image, choose “record AVI ” can open corresponding windows.
Users can adjust the setting parameter of AVI Frame Rate, file name and directory.
Please do type in full file name, for instance “ C:\tmp\1230-10.avi “. The resolution setting decides
the resolution of AVI file.
3. Record WMV
Right click mouse on the motion image, choose “record WMV ” can open corresponding windows.
Users can adjust the setting Frame Rate (from1~20), file name and directory.
Please do type in full file name, for instance “ C:\tmp\123456.wmv “ or Choose “Browser “ to select
direction, fill the file name and then click “Save”
