TO STOP ENGINE
1. To stop engine, move throttle control leve r to OFF
position.
2. Disconnect spark plug wire and ground tci prevent
accidental starting while equipment is un­
attended.
ADJUSTMENTS
CARBURETOR ADJUSTMENT
A
WARNING: Do not at any time make any
adjustment to the unit without first stop­
ping engine and disconnectini] spark
piug wire.
TWO-WAY DISCHARGE
The leaf blower can be adjusted to dischargi? toward
the front of the unit or to the side. Simply pu 5h down
on the handle and swing door toward the front to dis­
charge out the side, or to the side to discharg«? out the
front. See figure 5.

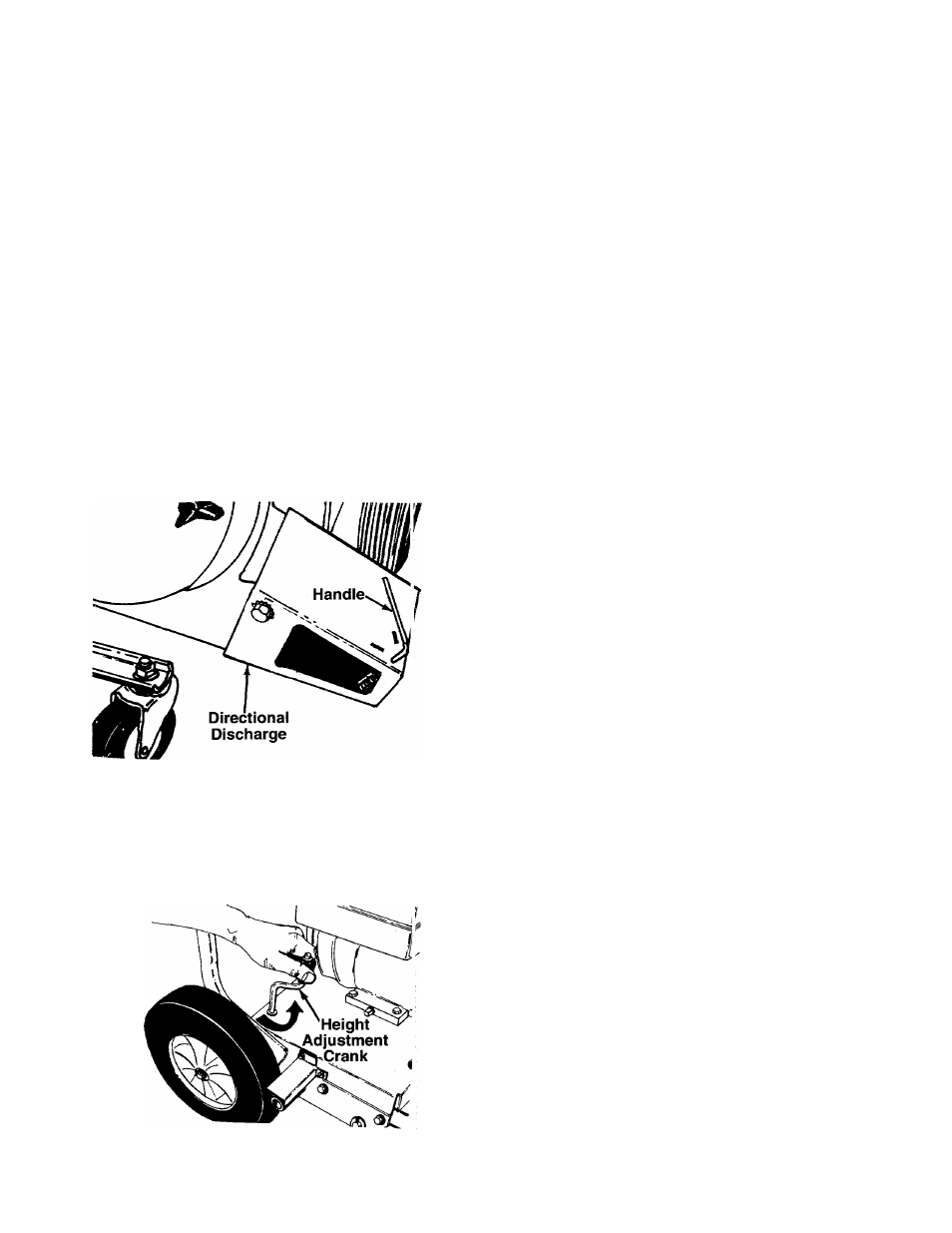

FIGURE 5.
HEIGHT ADJUSTMENT
The height adjustment crank is located on 1he right
hand side of the leaf blower. See figure 6. '"urn the
crank clockwise to raise the discharge chute. Turn the
crank counterclockwise to lower.
A
WARNING: If any adjustments are made
to the engine whiie the engine is running
(e.g. carburetor), keep ciear of ali moving
parts. Be carefui of heated surfaces and
muffier.
Minor carburetor adjustment may be required to com­
pensate for differences in fuel, temperature, altitude
or load.
NOTE: A dirty air cleaner will cause engine to run
rough. Be certain air cleaner is clean and attached to
the carburetor before adjusting carburetor.
Do not make unnecessary adjustments. Factory set­
tings are satisfactory for most applications and condi­
tions. If adjustment is needed, refer to the separate
engine manual packed with your leaf blower.
MAINTENANCE
A
WARNING: Always stop engine and dis­
connect spark piug wire before cleaning,
lubricating or performing any repairs or
maintenance.
FIGURE 6.
LUBRICATION
Wheels-Rear wheels are provided with light oil bear­
ings. Place a few drops of SAE 30 oil on each bearing
once a season.
Directional Discharge-Lubricate the spring and the
pivot point on the door mechanism at least once a
season with light oil.
ENGINE
Refer to the separate engine manuai for engine
maintenance instructions.
Maintain engine oii as instructed in the separate
engine manual packed with your unit. Read and follow
instructions carefully.
Service air cieaner every 25 hours under normal con­
ditions. Clean every few hours under extremely dusty
conditions. Poor engine performance and flooding
usually indicates that the air cleaner should be ser­
viced. To service the air cleaner, refer to the separate
engine manual packed with your unit.
The spark plug should be cleaned and the gap reset
once a season. Spark plug replacement is recom­
mended at the start of each season; check engine
manual for correct plug type and gap specifications.
Clean the engine regularly with a cloth or brush.
Keep the cooling system (blower housing area) clean
to permit proper air circulation which is essential to
engine performance and life. Be certain to remove all
dirt and combustible debris from muffler area.
