MTD 24695S - Manual (Page 9)

Models 692, 693, 694 and 24695

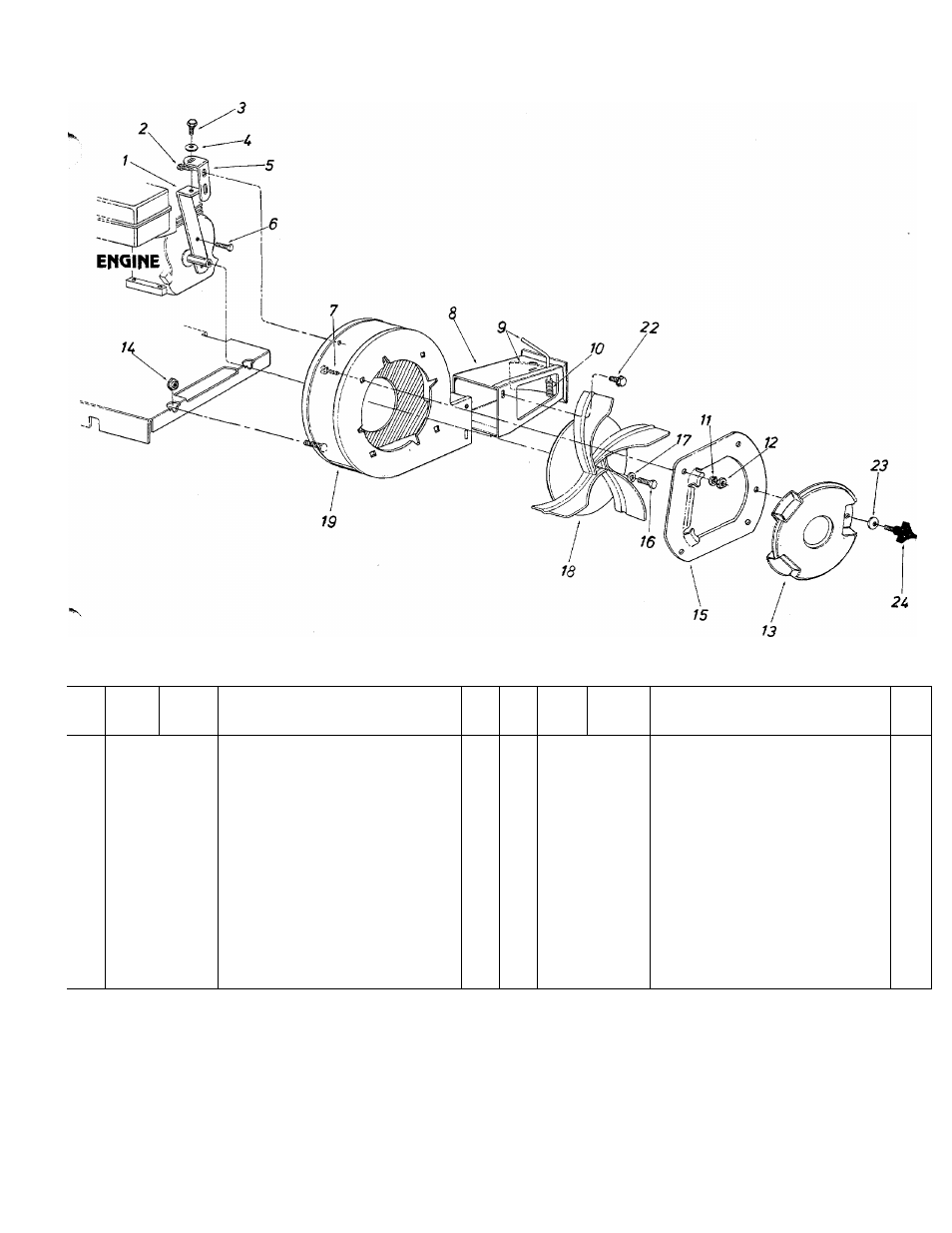

PARTS LIST FOR LEAF BLOWER MODELS 692, 693, 694 and 24695
REF.
NO.
PART
NO,
COLOR
CODE
DESCRIPTION
NEW
PART
REF.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
NEW
PART
1 14539 Engine Housing Brace Ass'y- 14 711-0758 Hex Shoulder Nut .50" I.D.
2 710-0600 Hex Self Tap Scr. 5/16" x .50" 15 14563 - 488 Nozzle Plate Ass'y.
Lg. 16 710-0191 Hex Bolt 3/8-24 X 1.25" Lg.*
3 710-0118 Hex Bolt 5/16-18 X .75" Lg.* 17 736-0217 L.-Wash. 3/8" I.D. HD.
4 736-0119 L.-Wash. 5/16" I.D.* 18 14536 - 488 Air Vane Plate Ass'y.
5 14541 Right Angle Bracket 19 14496 -488 Blower Housing Ass'y. - Comp.
6 710-0627 Hex Locking Bolt 5/16-24 x.75‘
\
22 710-0259 Hex Sems Bolt 5/16-18 x .62"
7 710-0260 Carriage Bolt 5/16-18 x .62" Lg.*
Lg.* 23 736-0242 Belleville Wash. 34" I.D. x .87"
8 14479 - 488 Directional Discharge Ass'y. O.D.
11 736-0119 L.-Wash. 5/16" I.D.* 24 720-0170 3-Arm Thumb Scr. 5/16-18 x
12 712-0267 Hex Nut 5/16-18 Thd.* .75" Lg.
13 731-0608 Blower Guard
*For faster service obtain standard nuts, bolts and washers locally. If these items cannot be
obtained locally, order part number and size as shown on parts list.
(488 - Mack Truck Yellow) When ordering parts if color or finish is important, use color code
(615 - Red)
shown at left (e.g. Mack Truck Yellow Finish - 14542 (488).)
The engine is not under warranty by the leaf blower manufacturer. If repairs or service is needed on the
engine, please contact your nearest authorized engine service outlet. Check the "Yellow Pages" of your
telephone book under "Engines - Gasoline".
