PARTS LIST NO.
545103409
DATE
Replaces
7/03/08
545103409 - 6/06/08
Poulan PRO'
parts
list
CHAIN SAW MODEL(s)
PP3516AVX

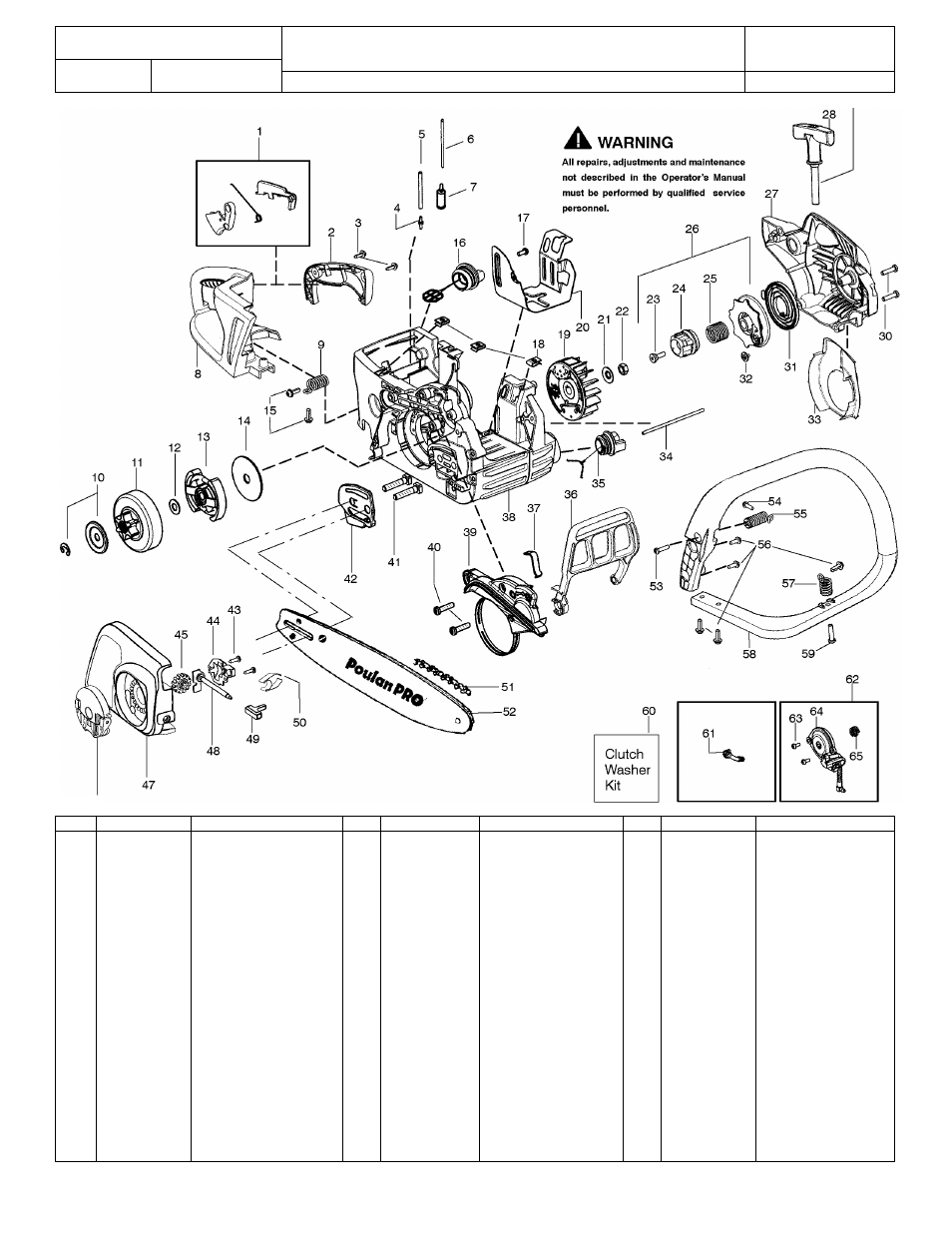

Note: Illustration may differ from actual model due to design changes
PAGE NO. 1
29
46
Ref.
Part No.
Description
Ref.
Part No.
Description
Ref.
Part No.
Description
1.
530071927
Kit-T rigger/Lockout
24.
530059677
Starter Hub-EPS
44.
530059999
Cover-Gearbox
2.
545011903
Cover-Handle
25.
530021180
Spring-EPS
45.
545039503
Wheel-Bar Adjust
3.
530016433
Screw
26.
530071966
Kit- EPS Starter Pulley
46.
545040603
Assy -Knob
4.
530023877
Fitting-Fuel line
(Incl. 23,24,25, 32)
47.
545027703
Clutch Cover
5.
530069216
Kit-Fuel Line (Large)
27.
545011703
Housing-Fan
48.
530150000
Assy -Adjust Screw
6.
530069247
Kit-Fuel Line (Small)
28.
530056402
Handle-Starter
49.
545157401
Pin -Bar Adjust
7.
530095649
Assy-Fuel Pick Up
29.
530069232
Kit-Rope
50.
545147001
Clip -Spring
8.
545012103
Handle-Rear
30.
530016432
Screw
51.
952051211
Accy-16” Chain
9.
530059475
Spring-Rear Isolator
31.
530042095
Spring -Starter
52.
530044692
16” Bar
10.
530071945
Kit-Clutch Washer
32.
530016080
Screw
53.
530016432
Screw
11.
530057905
Assy-Clutch Drum 3/8”
33.
530057868
Baffle
54.
530016443
Screw
12.
530071945
Kit-Clutch Washer
34.
530058786
Assy-Oil Vent
55.
530059480
Assy-Rear Iso. Spring
13.
530057907
Assy -Clutch
35.
530057236
Assy-Oil Cap w/ret.
56.
530015906
Screw
14.
530016419
Washer -Large Clutch
36.
530057880
Handguard
57.
530059479
Assy-Front Iso. Spring
15.
530015906
Screw
37.
530016416
Spring-Handguard
58.
530057878
Handle-Front
16.
530047192
Assy -Fuel Cap w/ret
38.
545011803
Assy-Chassis (Incl.
59.
530016432
Screw
17.
530016064
Screw
4,5,6,7,9,15,16,17,18,
60.
530071945
Kit-Clutch Washer
18.
530015922
Nut-”U” type speed
20
,
34
,
35
,
37
,
41
,
57
)
(Incl. 10,12)
19.
545016308
Assy-Flywheel
39.
530071893
Kit-Chainbrake
61.
530057924
Assy-Oil Pick Up
20.
530057911
Shield-Heat
40.
530016432
Screw
62.
530071891
Kit-Oil Pump
21.
530015127
Washer -Flywheel
41.
530016133
Bolt-Bar
(Incl. 63,64,65)
22.
530016134
Nut-Flywheel
42.
530057910
Plate-Bar
63.
530016064
Screw
23.
530021179
Screw-Shoulder
43.
530016064
Screw
64.
530057931
Assy -Oil Pump
65.
530037820
Gear -Worm
n = NEW PART NUMBER FOR THIS IPL
K = REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
