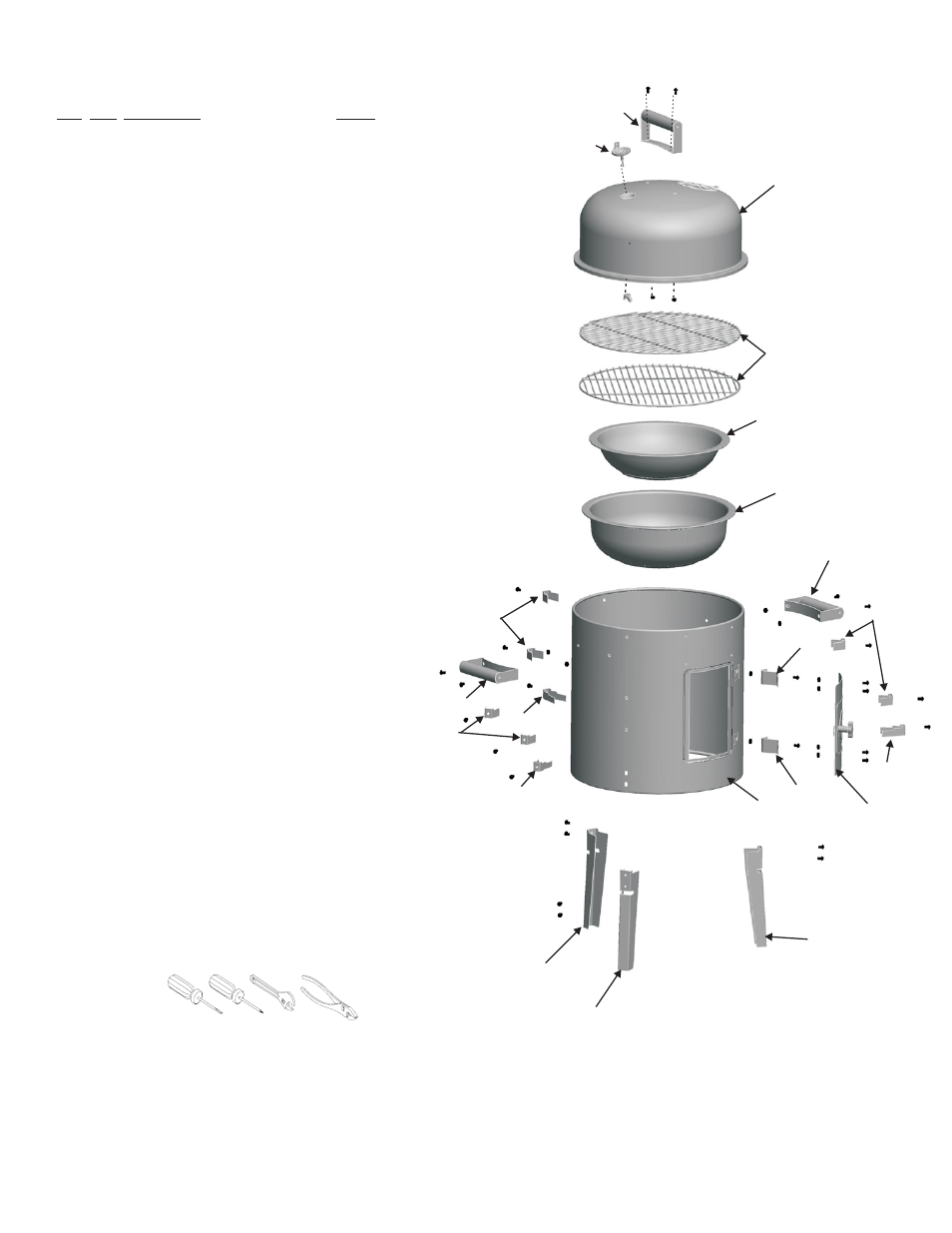

Parts List - Model 06701289
Key Qty. Description Part #
A 1 Charcoal Pan . . . . . . . . . . . . . . . . 29001314
B 1 Water Pan . . . . . . . . . . . . . . . . . . 29001297
C 2 Cooking Grates . . . . . . . . . . . . . . 29001296
D
E
F 1 Door W/Knob . . . . . . . . . . . . . . . . 29001303
G 2
H
I 1 Heat Indicator. . . . . . . . . . . . . . . . 29001305
J 3 Legs . . . . . . . . . . . . . . . . . . . . . . . 29001301
K 6 Short Brackets . . . . . . . . . . . . . . . 29001311
L 3 Long Brackets . . . . . . . . . . . . . . . 29001312
M 1 Handle W/Steel Bracket Lid . . . . . 29001319
- - 1 Name Plate . . . . . . . . . . . . . . . . . 29001306
- - 1 Bolt Pack, Charcoal Smoker . . . . 29001315
1 Dome Lid Assembly . . . . . . . . . . . 29001292
1 Body Assembly . . . . . . . . . . . . . . 29001295
Handle W/Steel Bracket,Side. . . . 29001302
2 Hinges . . . . . . . . . . . . . . . . . . . . . 29001304
Before Beginning Assembly
Remove all contents from box.
Lay cardboard on the ground when unpacking, assemble smoker
parts on the cardboard to avoid scratching surfaces.
Minimum tools for assembly of your smoker include screwdrivers
(flathead and Phillips) wrench and pliers. A 3/8” nut driver would
be ideal.
M
I
B
K
L
J
J
J
E
F
A
D
L
K
G
K
L
H
H
5
C
G
