Edging Along A Curb

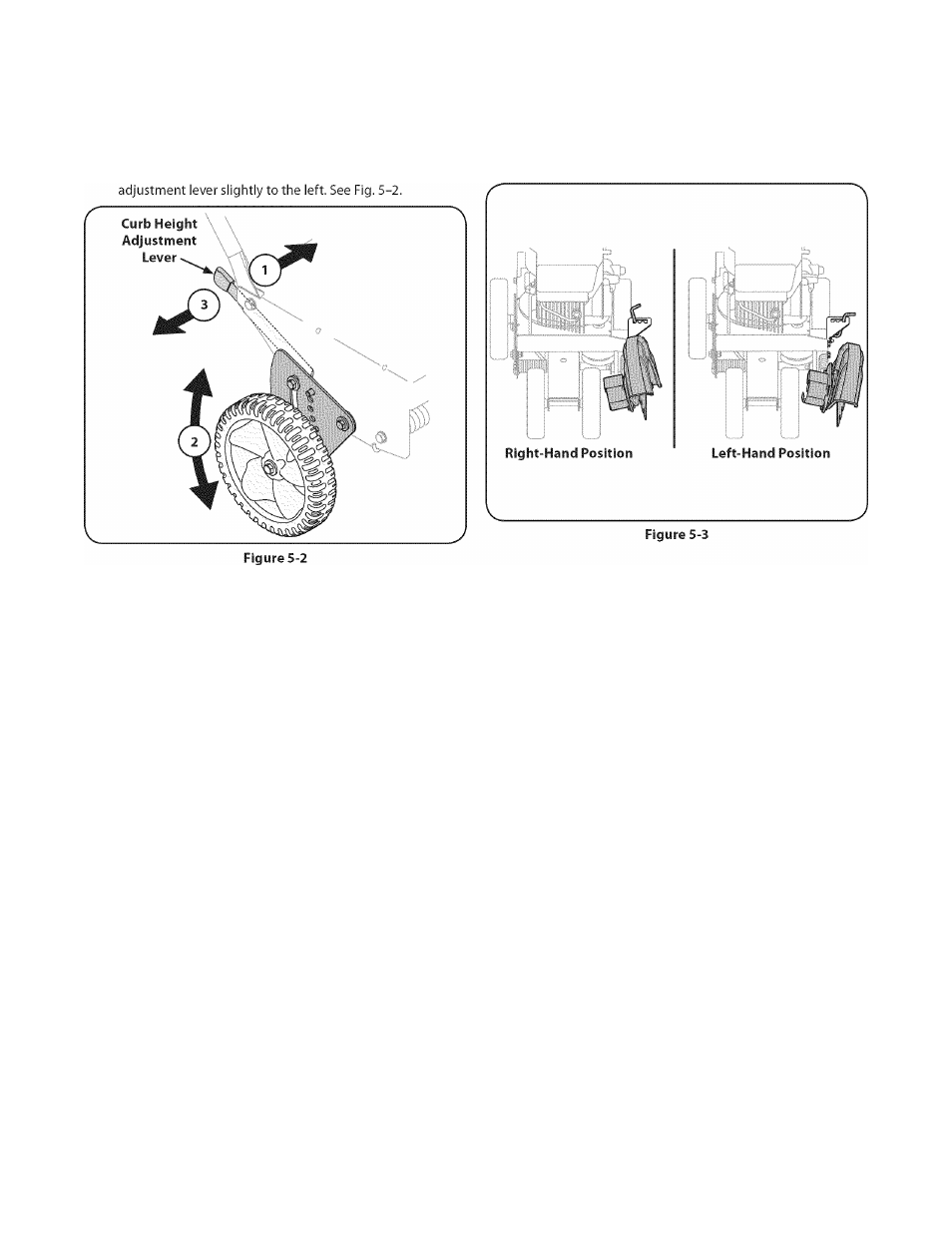

The right, rear wheel of the edger can be lowered into one of five

positions to ease the task of edging along a curb. To adjust the
height of curb wheel, proceed as follows:

1. Lower the right, rear wheel by moving the curb height

Beveling

In order to achieve a bevelled edge, set the bevel adjustment
lever (refer to the Assembly & Set-Up Section) in the first (left
hand) or third (right hand) notch to place the edger blade in
position for beveling. See Fig. 5-3.

Pivot the right, rear wheel into an applicable position in
relation to the height of the curb to be edged along. See
Fig. 5-2

Release the curb height adjustment lever to lock the wheel
in position. See Fig. 5-2.
