MAINTENANCE AND REPAIR INSTRUCTIONS
LINE INSTALLATION
Always use genuine Ryobl 0.095 inch (2.41 mm.)
replacement line. Larger line may make the engine
overheat or fail.
A WARNING: Never use metai-reinforced line,
wire, or rope, etc.. These can break off and
become a dangerous projectile.
There are two methods to replace the trimming line.
• Wind the inner reel with new line
• Install a prewound inner reel
NOTE: Replacement line Part # 612454, or a prewound
reel, Part # 147345 can be purchased from your
local authorized dealer.
Winding the Existing Inner Reel

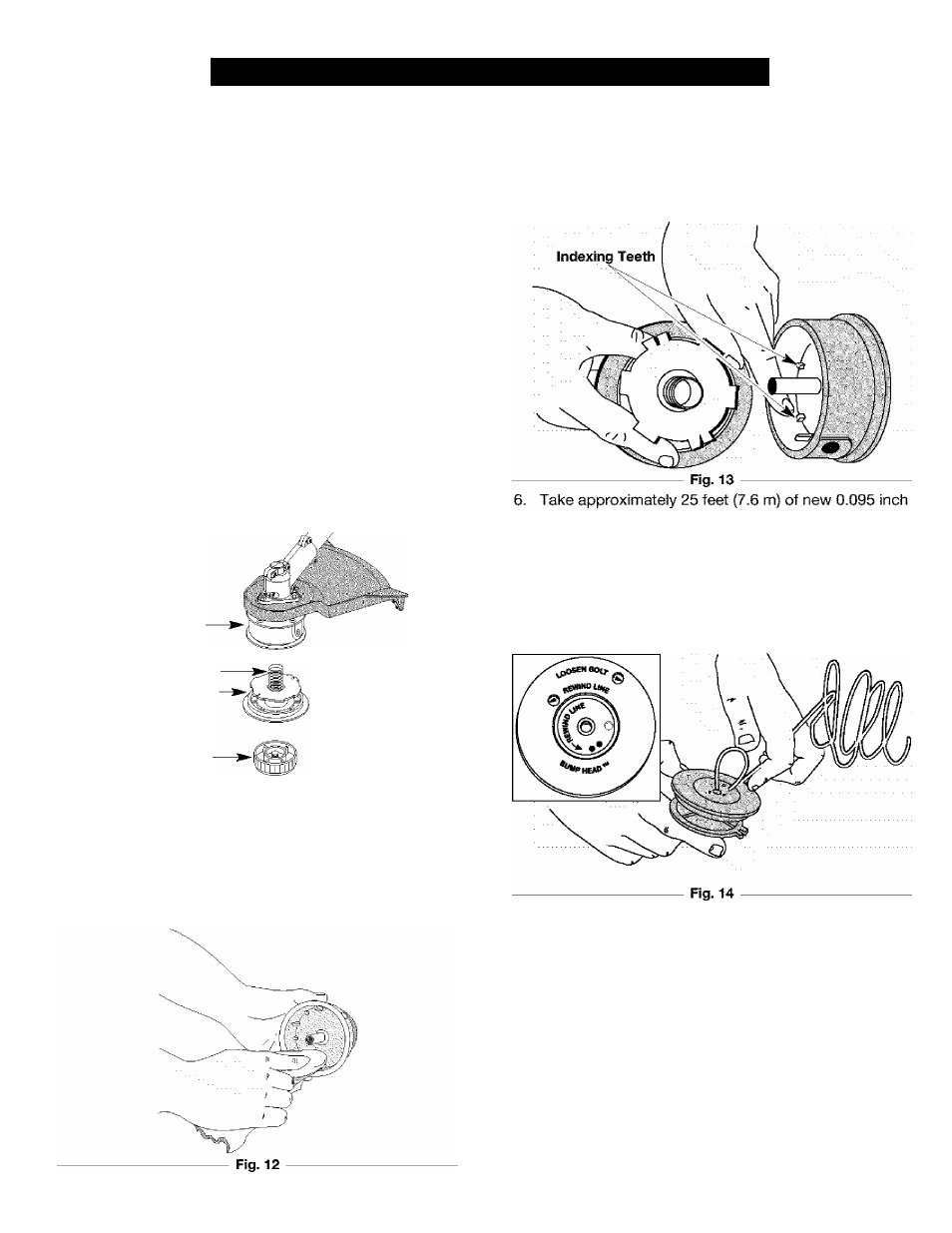

1. Hold the outer spool with one hand and unscrew the
Bump Knob'T'^ counterclockwise (Fig. 11). Inspect
the bolt inside the Bump Knob''^'^ to make sure it
moves freely. Replace the Bump Knob^^^ if dam­
aged.
NOTE: A Bump Knob™, Part # 180814 can be
purchased from your local authorized deaier.
Outer Spool
Spring
Inner Reel-
Bump Knob™
--------------------------------------- Fig. 11 ---------------------------------------
2. Remove the inner reel from the outer spool (Fig. 11).
3. Remove spring from the inner ree! (Fig. 11).
NOTE: An inner reei spring, Part # 610636 can be
purchased from your local authorized dealer.
4. Use a ciean doth to clean the the inner reel, spring,
shaft, and inner surface of the outer spool (Fig. 12).
5. Check the indexing teeth on the innerreel and outer
spool for wear (Fig. 13). If necessary, remove burrs
or replace the ree! and spool.
NOTE: A cutting attachment outer spool, Part # 147494
can be purchased from your local authorized
dealer.
diameter trimming line, loop it into two equal lengths,
insert each end of the line through one of the two
holes in the inner reel (Fig. 14). Pull the line through
the inner reel so that the loop is as small as possible.
NOTE: Always use the correct line length when installing
trimming line on the unit. The line may not
release properly if the line is too long.
14
