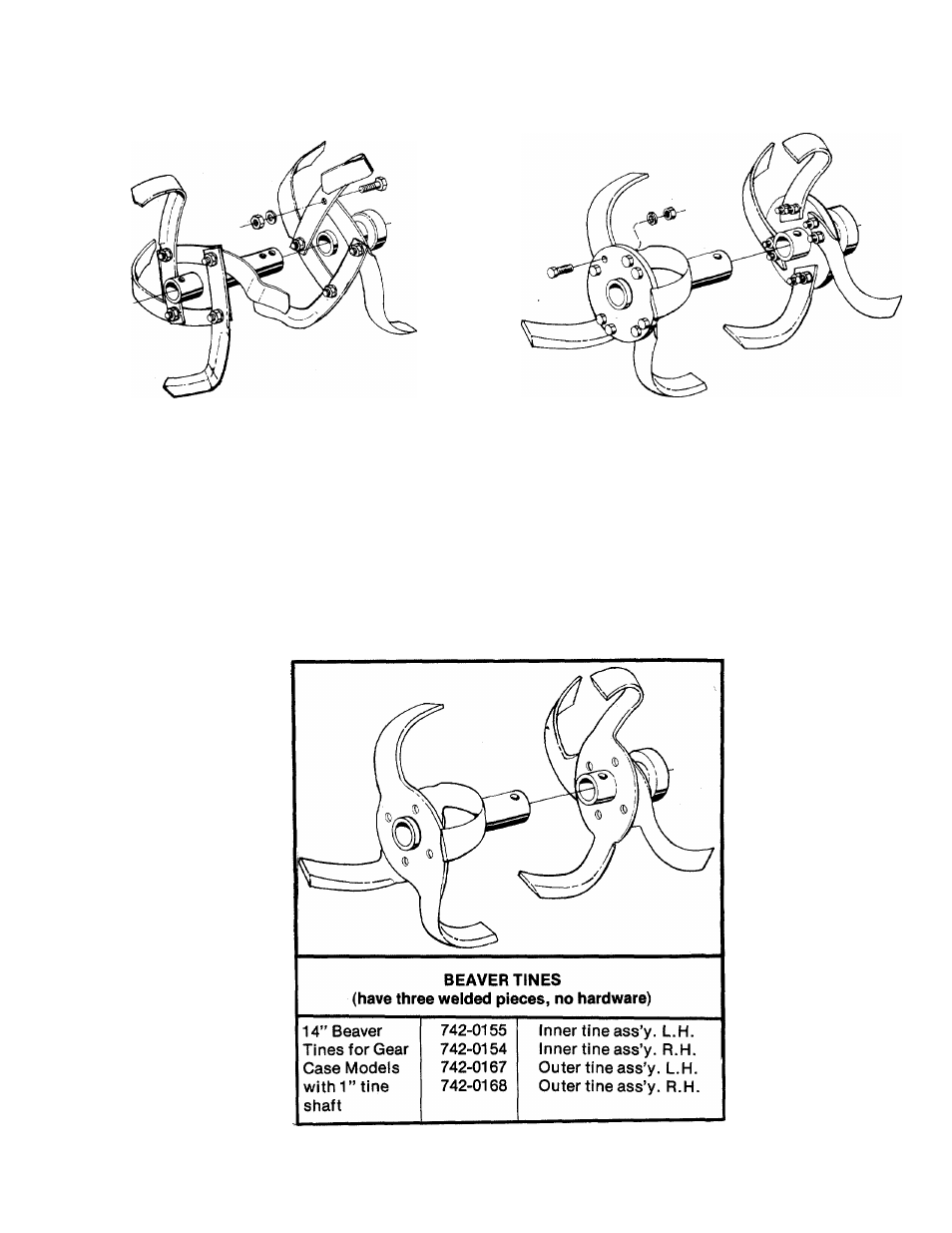

TINE CHART
BOLO TINES
(have a square plate with four (4) tines)
SLASHER TINES
(have a round plate with eight (8) bolts)
12” Bolo Tines
for Gear Case
Models
04701
04702
04293
04294
742-0105
742-0106
04683
04673
Inner tine ass’y. L.H.
Inner tine ass’y- R-H.
Outer tine ass’y. L.H.
Outer tine ass’y. R.H.
Tine only L.H.
Tine only R.H.
Outer tine adapter
Inner tine adapter
14” Slasher
Tines for Gear
Case Models
with 1” tine
shaft
04677
04678
04297
04298
742-0113
742-0110
04265
04674
\
Inner tine ass’y. L.H.
Inner tine ass’y. R.H.
Outer tine ass’y. L.H.
Outer tine ass’y. R.H.
Tine only L.H.
Tine only R.H.
Outer tine adapter
Inner tine adapter
