Generac Portable Products 6500XL Extended Life Generator
120 Volt AC, 30 Amp Locking
Receptacle___________________________
Use a NEMA L5—30 plug with this receptacle. Connect a
3-wire cord set rated for 125 Volt AC loads at 30 Amps to
the plug {Figure 9).

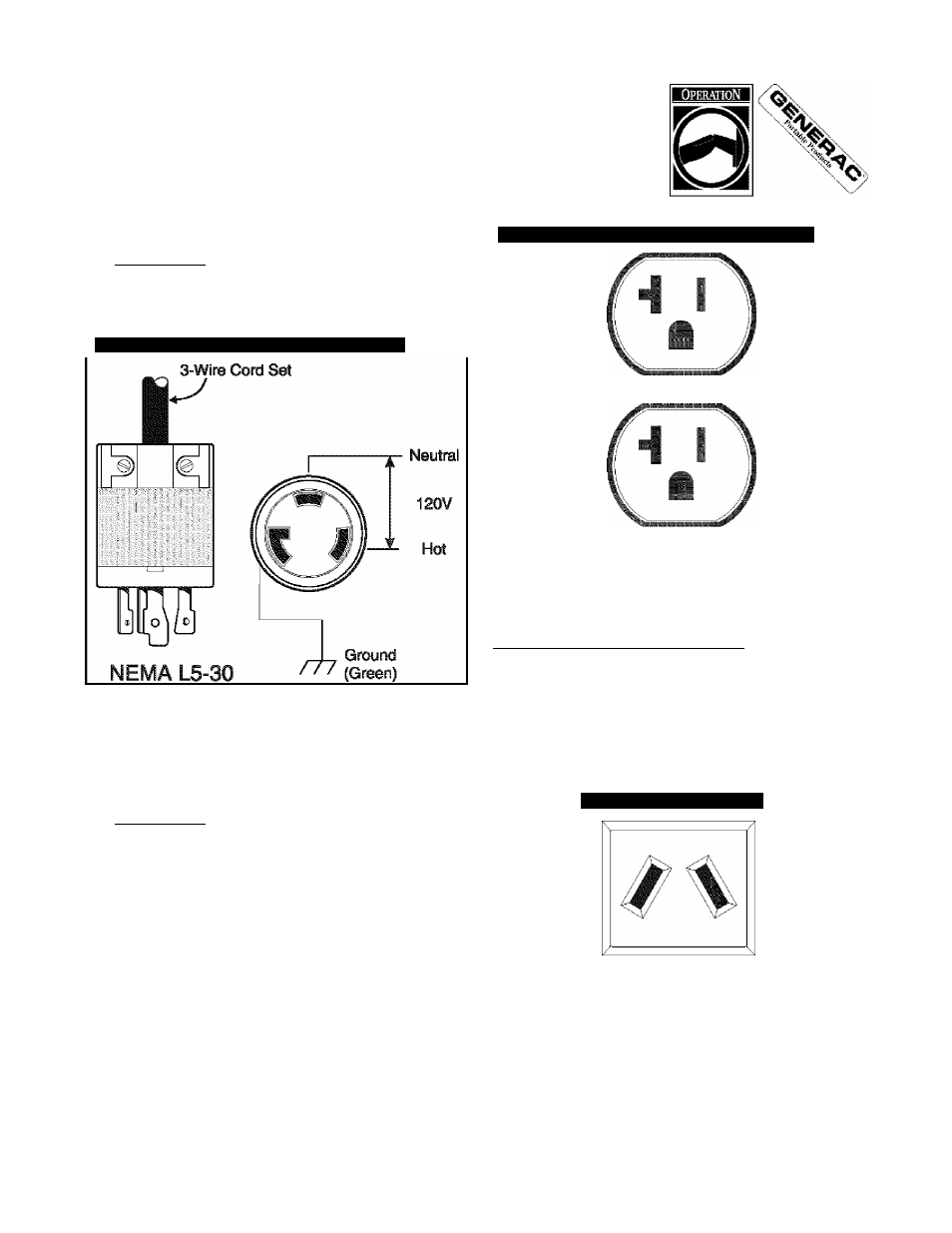

Figure 9 — 120 Volt AC, 30 Amp, Locking Receptacle
Figure 10— l20Volt AC, 20 Amp, Duplex Receptacle
Use this receptacle to operate l20Volt AC, 60 Hz, single
phase loads requiring up to 3,600 watts (3.6 kW) of power
at 30 Amps.The outlet is protected by a 30 Amp
push—to-reset circuit breaker.
120 Volt AC, 20 Amp, Duplex
Receptacle___________________________
Each receptacle (Figure 10) is protected against overload by
a 20 Amp push—to-reset circuit breaker.
Use each receptacle to operate 120Volt AC, single-phase,
60 Hz electrical loads requiring up to 2,400 watts (2.4 kW)
at 20 Amps of current. Use cord sets that are rated for
125 Volt AC loads at 20 Amps (or greater).
12 Volt DC, 10 Amp Receptacle_____________
This receptacle allows you to recharge a 12 Volt
automotive or utility style storage battery with the battery
charge cables provided (Figure I l).This receptacle can not
recharge 6 Volt batteries and can not be used to crank an
engine having a discharged battery. See the section
“Charging a Battery” (page 7) before attempting to
recharge a battery.
12 Volt DC, 10 Amp Receptacle
