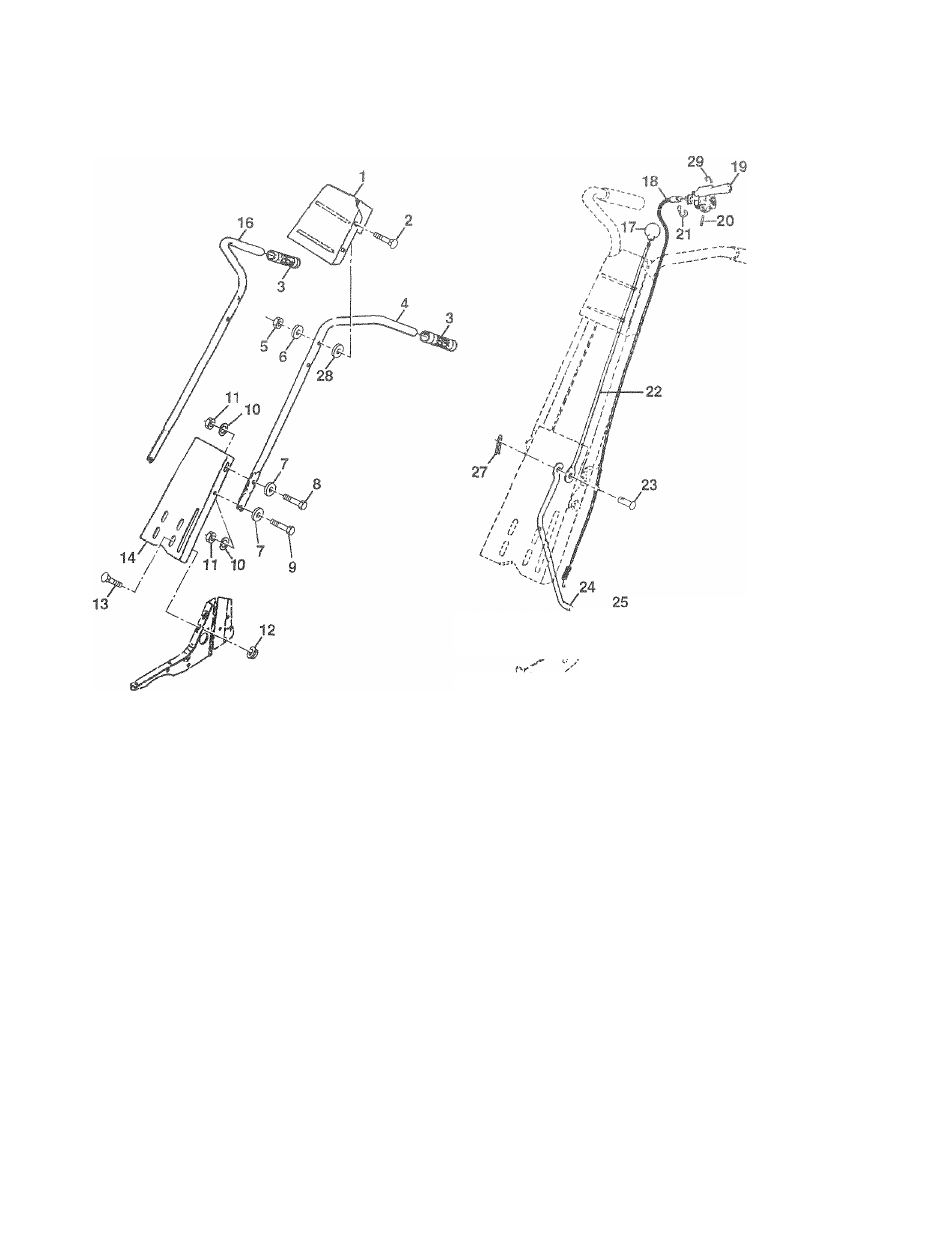

REPAIR PARTS
f f L >
1
- ' - - I t e . ’ P f r t
^ t - ^ h r s S O B
. J !
f
KEY
NO.
PART
NO.
DESCRIPTION
1
131268X428
Bracket, Handle
2
72140512
Bolt, Carriage 5/16-18 UNC x 1
3
9266R
Grip, Handle
4
153138
Handle, L.H.
5
73680500
Locknut, Crown 5/16-18
6
19111116
Washer 11/32
x
11/16 x 16 Ga.
7
1912141^
Washer 3/8 x 7/8 x 14 Ga.
8
74760510
Bolt, Hex Hd. 5/16-18
X
1
9
74760512
Bolt, Hex Hd 5/16-18x3/4
10
10040500
Washer, Lock 5/16
11
73220500
Nut, Hex 5/16-18
12
98000129
Nut, Flanged 5/16-18
13
72140506
Bolt, Carriage 5/16-18 x 3/4 Gr.
14
674A150428
Panel, Handle
16
153139
Handle, R.H.
KEY
PART
DESCRIPTION
NO.
NO.
17
106932X
Knob, Control, Reverse
18
3066J
Cable, Control, Tine
19
151229
Lever, Control, Tine
20
154805
Pin, Pivot
21
12000027
Ring, Klip
22
101248K
Rod, Reverse, Upper
23
1778E
Pin, Retaining
24
2613J
Rod,
Reverse,
Lower
25
19131316
Washer 13/32
x
13/16
x
16 Ga.
26
76020412
Pin, Cotter 1/8
X
3/4
27
76020308
Pin, Cotter 3/32
X
1/2
28
19131312
Washer 13/32
x
13/16
x
12 Ga.
29
12000059
Retaining,
Ring
NOTE: All component dimensions are given in U.S. inches.
1 inch = 25.4 mm
