ñSSEMBVf

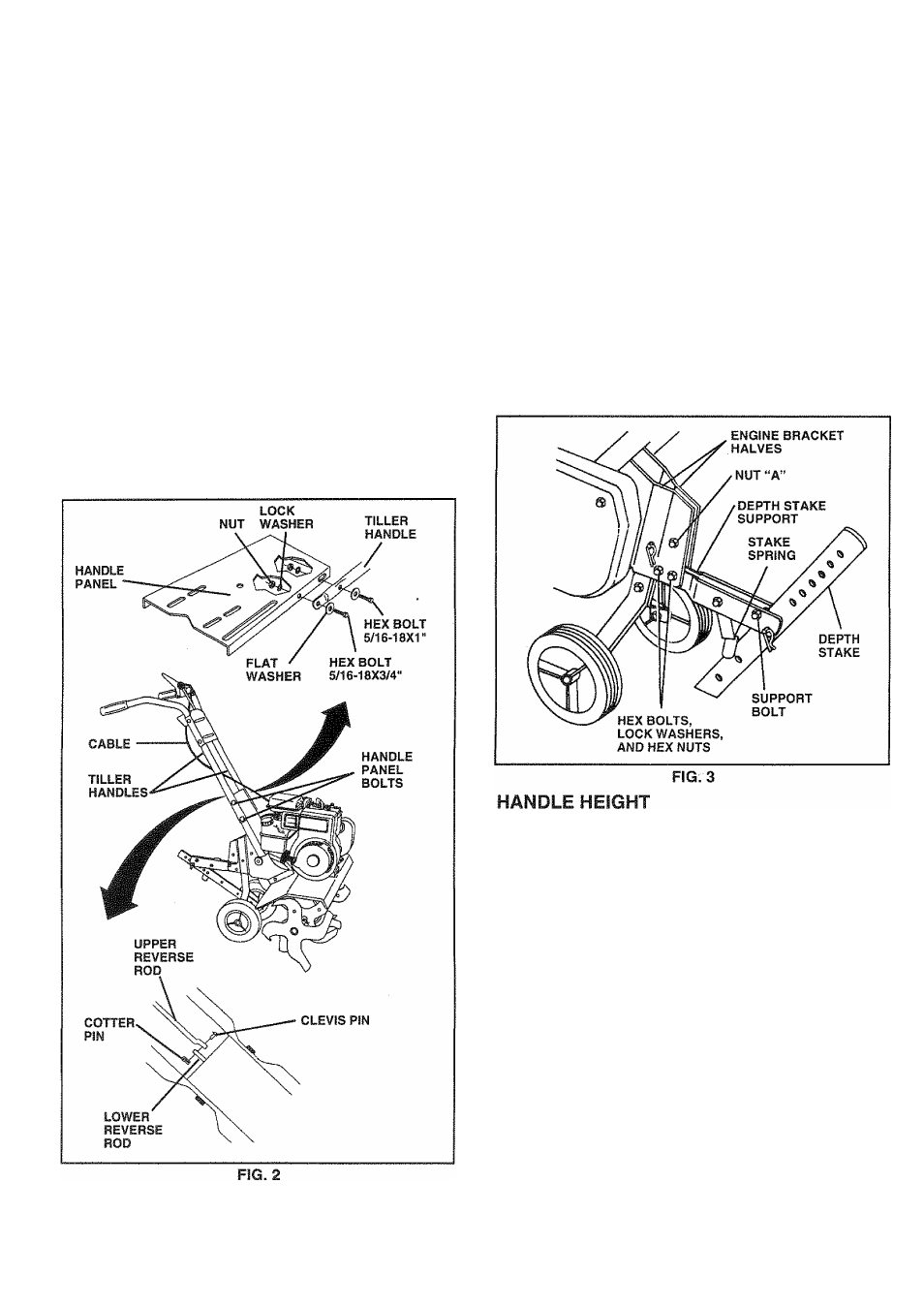

UNPACK CARTON ^ INSTALL HANDLE (See
Fig. 2)
A
CAUTION: Be careful of exposed
staples when handling or disposing of
cartoning material.
IMPORTANT: WHEN UNPACKING AND ASSEMBLING
TILLER, BE CAREFUL NOT TO STRETCH OR KINK
CABLE(S).
® Cut cable ties securing handles.
® Slowly lift handle assembly up and align handle holes
with handle panel hole and slot.
® Loosely assemble hardware as shown. Be sure the
shorter (3/4" long) hex bolt is assembled in lower hole
of handle. Repeat for opposite side. Tighten alt
hardware securely.
® Cut cable ties securing tiller to skid and remove tiller
from skid.
INSTALL DEPTH STAKE ASSEySLY
(See Fig. 3)
» Loosen nut "A”.
® Insert stake support between engine bracket halves
with stake spring down.
® Bolt stake support to engine brackets with bolts, lock
washers and nuts. Tighten securely. Tighten nut “A”.
« Depth stake must move freely. If It does not, loosen
support bolt.
INSTALL REVERSE ROD (See Fig. 2)
® Secure upper reverse rod to lower reverse rod using
clevis pin. Secure with cotter pin.
® Handle height may be adjusted to better suit operator.
(See “HANDLE HEIGHT” In the Service and Adjust­
ments section of this manual).
TILLING WIDTH
* Tilling width may be adjusted to better handle your
tilling conditions (See “TINE ARRANGEMENT” in the
Service and Adjustments section of this manual).
TINE OPERATION
® Check tine operation before first use. (See “TINE
OPERATION CHECK” in the Service and Adjustments
section of this manual).
