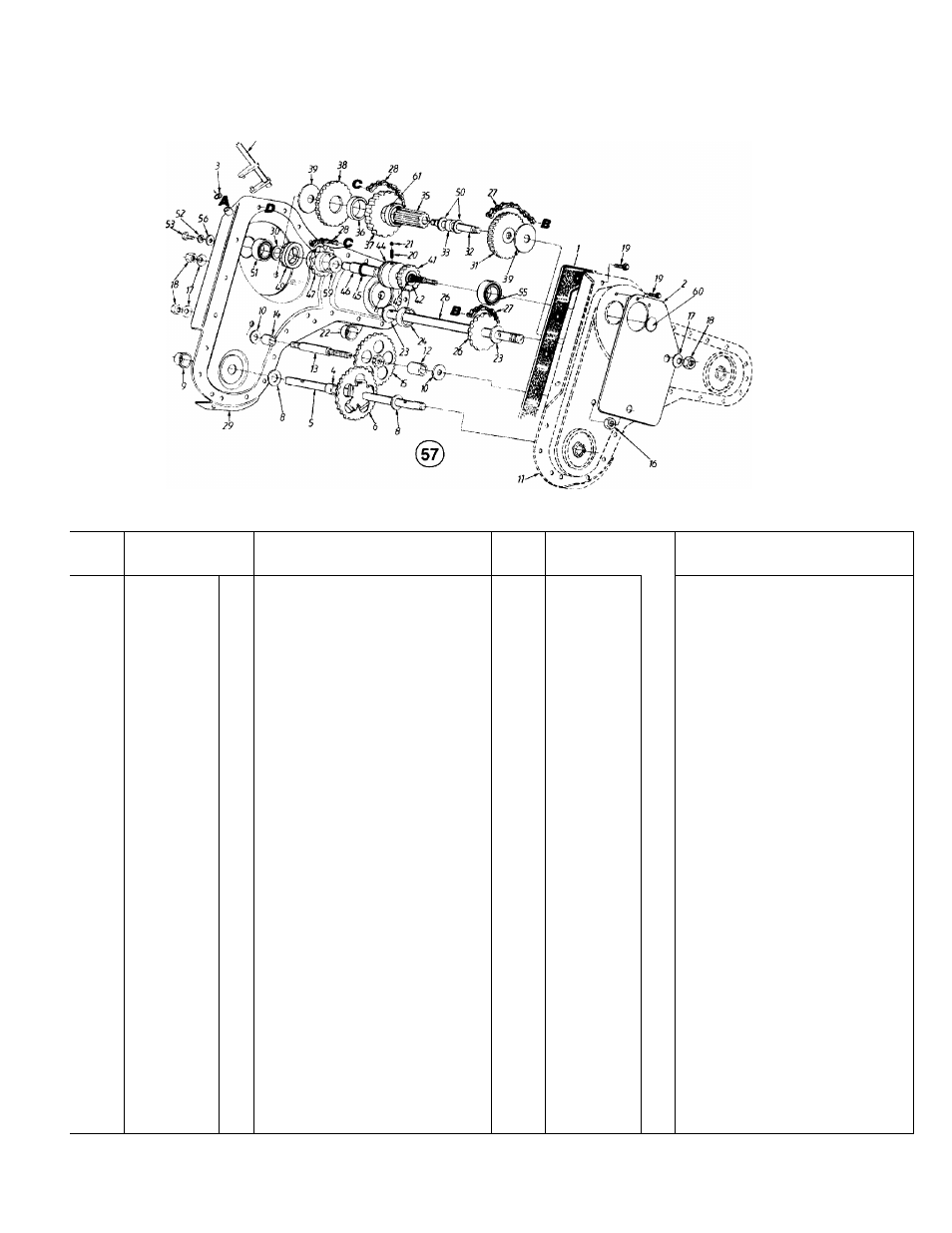

Models 410-422
A
iO
REF.
NO.
PART NO.
DESCRIPTION
REF.
NO.
PART NO.
DESCRIPTION
1
721-0295
Chain Case Gasket
30
736-0541
FI-Wash. 7/16" I.D. x 1-3/8" O.D.
2
786-0086
Reinforcement Plate
31
617-0002
Gear and Sprocket Ass’y.
3
716-0865
Snap Ring
32
738-0884
Jack Shaft 5" Lg.
4
750-0938
Spacer .735" I.D. x .886" O.D.
33
750-0931
Spacer .636" I.D. x .86" O.D.
5
611-0058
Wheel Shaft
35
717-1411
Spur Gear 10T
6
717-1458
Spur Gear 46T
36
750-0930
Spacer 1.5" I.D. x 1.76" O.D.
8
736-0351
FI-Wash. .76" I.D. x 1.5" O.D.
37
713-0436
Sprocket—#41 Chain
9
721-0379
Shaft Seal
38
717-1405
Reverse Gear 46T
10
736-0518
Thr.Wash..445 I.D.xl .92 O.D.x .060
39
736-0518
Thrust Wash. .445" I.D. x 1.92"
11
686-0039
Gear Case Ass’y- Half—L.H.
40
618-0245B
Shifter Ass’y.
12
750-0935
Spacer .635" I.D. x 1" O.D. x .78
41
717-1409
Spur Gear 17T
13
738-0885
Jack Shaft 2.06" Lg.
42
736-0442
FI-Wash. .69" I.D. x 1.06" O.D.
14
750-0936
Spacer .635" I.D. x 1" O.D. x
43
732-0614
Wire Ring
.37" Thk.
44
718-0234
Clutch Collar
15
617-0004
Gear Idler Ass’y.,
45
716-0235
Retaining Ring .875" Shaft
16
712-3067
Hex Patch L-Nut 7/16-20 Thd.
46
711-1087
Drive Shaft
17
736-0407
Bell-Wash. .45" I.D. x 1" O.D.
47
713-0435
Sprocket 11T
18
712-0378
Hex Nut 7/16-20 Thd.
49
717-1451A
Spur Gear 16T
19
710-0896
Hex Wash. Hd. TT-Tap Scr. 1/4-20
50
736-0336
FI-Wash. 5/8" I.D. x 1" O.D.
x .5" Lg.
51
741-0124
Ball Bearing .669" I.D.
20
732-0863
Spring Detent
52
736-0329
L-Wash. 1/4" I.D.
21
741-0862
Ball Detent
53
710-0258
Hex Bolt 1/4-20
X
.62" Lg.
22
721-0378
Shaft Seal
55
741-0563
Ball Bearing
23
736-0163
Thrust Wash. 1.03" I.D. x 1.62"
56
736-0512
FI-Wash. .281" I.D.
X
.875" O.D.
24
750-0570
Spacer 1" I.D. x 2" O.D. x .5" Thk.
57
686-0094
Gear Case Ass’y. Comp.
26
611-0021
Tine Shaft Ass’y.
58
718-0237
Key—Drive Shaft (Not Shown)
27
713-0226
Chain #50 5/8" Pitch x 52
59
736-0265
FI-Wash. .88" I.D. x 1.5" O.D.
Links—Endless
60
726-0331
Button Plug
28
713-0233
Chain—#41 1/2" Pitch x 30
61
750-0987
Spacer 1.52" I.D.
Links—Endless
—
737-0300
Grease (40 oz. Req’d.)
29
686-0038
Gear Case Ass’v. Half—R.H.
17
