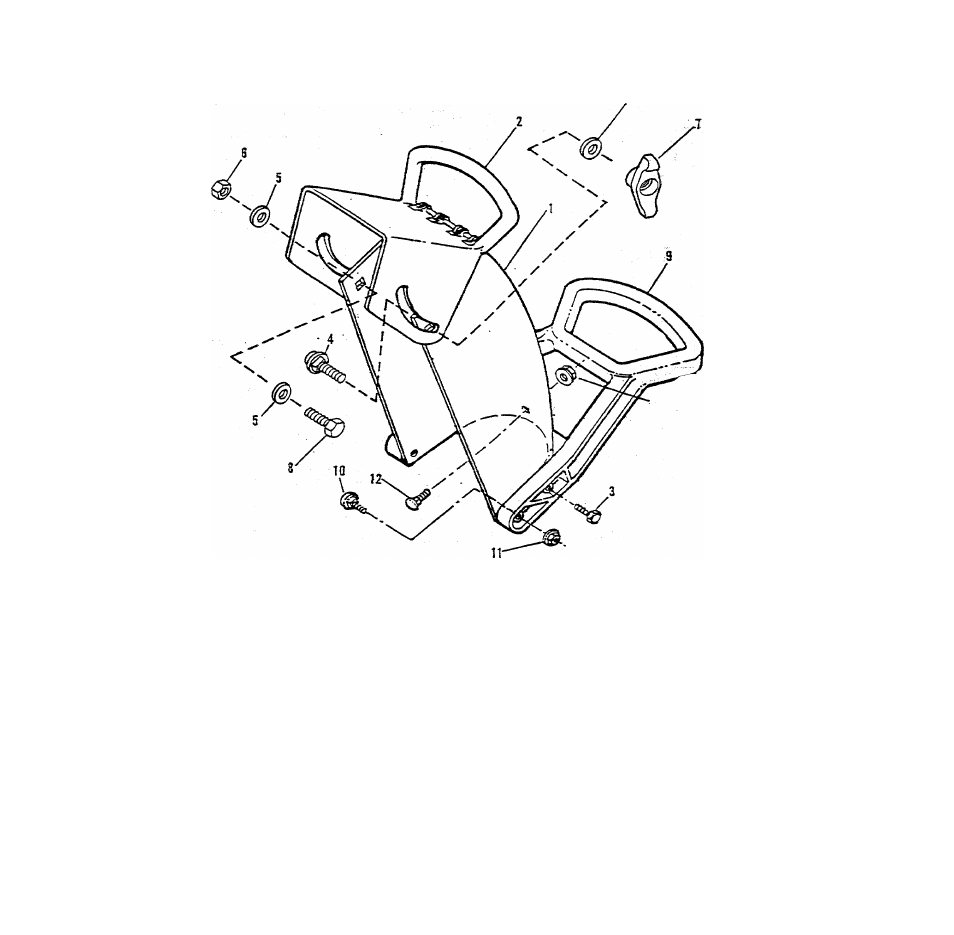

DISCHARGE CHUTE, DEFLECTOR CONTROL HANDLE
ITEM
PART NO.
DESCRIPTION
QTY
1
1904595
Chute-Discharge (Incfudes Decal P/N 1904691)
1
2
190 ^596
Deflector-Chute (Includes Decal P/N 1904684)
1
3
1904597
Screw-Hex Cap 5/16-18 x 3/4*
2
4
1904598
Bolt-Carriage Short Neck 5/16-18 x 1" (Gr. 5)
1
5
1904599
Washer-Rat 5/16*
3
6
1904600
Nut-Hex Center Lock 5/16-18 (Gr. B)
1
7
19046Q1
T-Knob-Plastic
1
8
1904603
Screw-Hex Cap 5/16-24 x 3/4* (Gr. 5)
1
9
1904604
Handle-Chute Control
1
10
1904605
Bolt-Carriage Short Neck 5/16-18 x 1-1/4
2
11
1904582 '
Nut-Hex Range Lock 5/16-18 (Gr. 5)
3
12
1904606
Bolt-Carriage Short Neck 5/16-18 x 3/4’ (Gr. 5)
3
1
