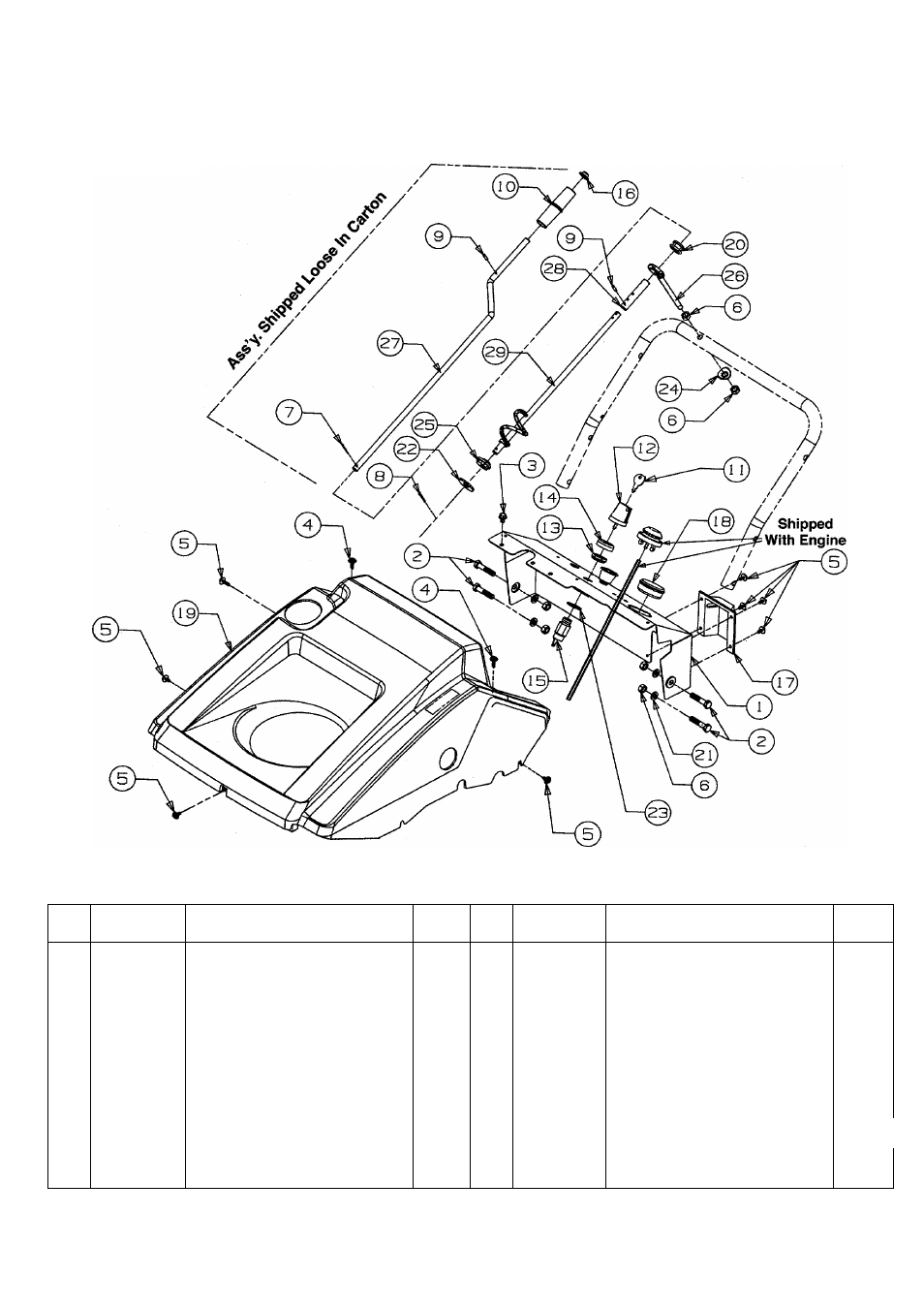

MTD 317E152-000 - Manual (Page 8)

Model Nos.
317E152-000
REF.
NO.
PART
NO. DESCRIPTION QTY.
REF.
NO.
PART
NO. DESCRIPTION QTY.
1 784-5572 Dash 1 16 726-0100 Cap—Push 1
2 710-0442 Screw—Hex Cap 4 17 731-1089 Cover—Choke 1
3 710-0653 Screw—Hex Washer 1 18 731-1133 Plug—Insert 1
4 710-1003 Screw—Hex 2 19 731-1765 Shroud—Black 1
5 710-1268 Screw—Hex 8 20 735-0234 Grommet—Rubber 1
6 712-0267 Nut—Hex 6 21 736-0119 Washer—Lock 4
7 714-0111 Pin—Cotter 1 22 736-0133 Washer—Flat 1
8 714-0474 Pin—Cotter 1 23 736-0225 Washer—Lock Internal 1
9 715-0138 Pin—Roll 2 24 736-0451 Washer—Saddle 1
10 720-0201A Knob 1 25 741-0403 Bushing—Hex 1
11 725-0201 Key—Ignition 1 26 747-0697 Eyebolt—Chute Crank 1
12 725-1341B Key—Ignition with Logo 1 27 747-0737 Crank—Chute Upper 1
13 725-1346 Nut—Ignition Switch 1 28 750-0785 Spacer 1
14 725-1347 Cover—Ignition Switch 1 29 784-5497 Crank—Chute Lower 1
15 725-1425 Switch—Key 1
