20

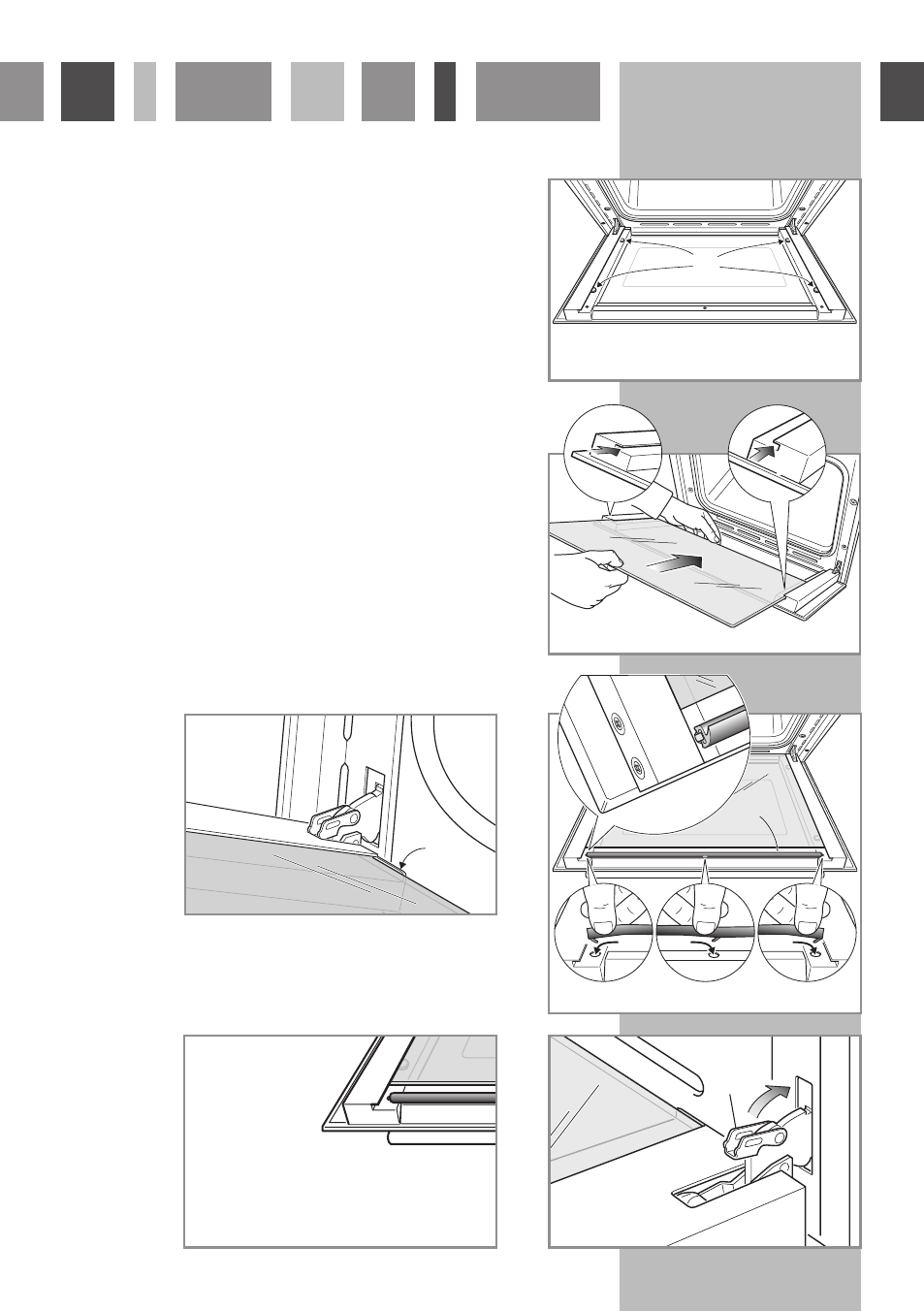

Replacing the Inner Pane of Glass
1. Make sure the door is locked open (see fig. 11).
2. Replace the inner pane:
– Check that the four rubber pads are in place (D in Fig. 14).
– Check that you are holding the pane the correct way. You
should be able to read the wording on it as it faces you.
– Insert the pane in the left E and right F slide guides (fig. 15),
and gently slide it to the retainers H (fig. 16).
– Reassemble the seal G in the correct way (fig. 17) by hooking
the no. 3 fixing hooks in the proper holes (fig. 18).
– Unlock the oven door by opening it completely and closing
the lever A on the left and right hinges (Fig. 19).
A
Fig. 14
E
F
H
Fig. 16
H
G
Fig. 17
Fig. 18
It is normal the opened gap between
the top edge of the inner glass and the
sealed gasket. This allows the cooling
air circulation.
The oven door
has a sealed
gasket in the
top part.
H
D
G
A
F
E
Fig. 15
Fig. 19
