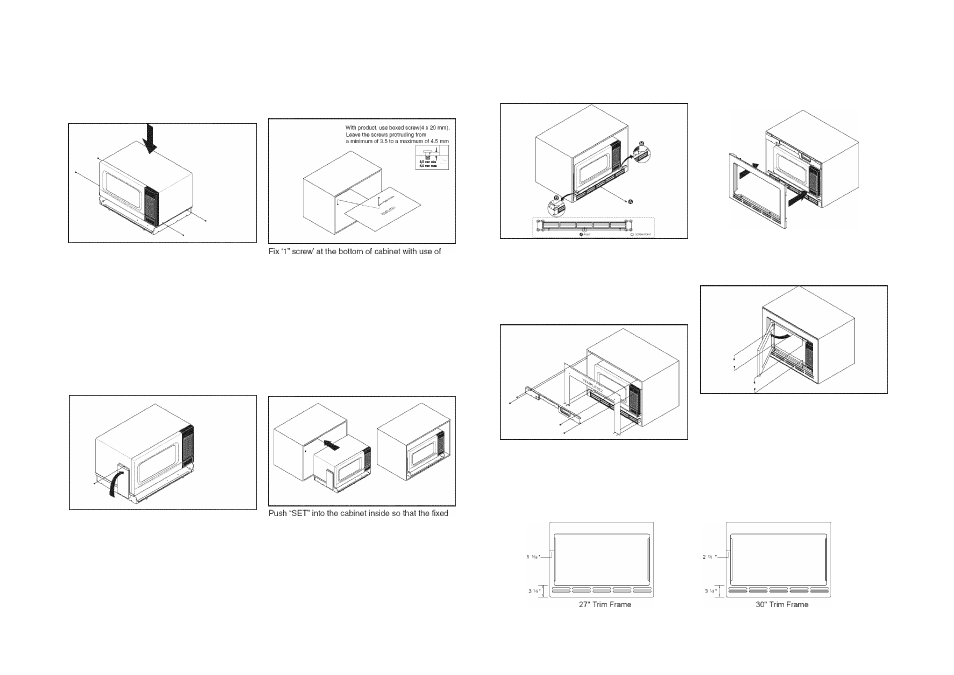

1. “SET” installment in

Bracket Base

3. Fixing ‘location screw’ in cabinet

Installment of Bracket Bottom

7. Installment of Trim Frame

Remove 4 screws from the lower right and left parts

of outer panel, place “SET” in Bracket Base and fix
it by tightening 4 screws again.

template 1.

2. Installment of Bracket Left

4. “SET” installment In cabinet

Assemble the Bracket Left to outer panel.

bottom screw of cabinet can place in the hole of
Bracket Bottom.
Push “SET” in until the bent part of front Bracket
Base touches the front of cabinet.

Place Bracket Bottom on Bracket Base like picture
B. Make holes of position A fit to Bracket Base’s

and fix screws after making holes with a 7/64 drill or
a #35 drill.

Install “Bracket Bottom” by tightening screws at

screw points.

6. Installment of Bracket Top

With template 2, make 2 holes each at the upper

right and left parts of cabinet. (Others for the extra)
Fix “BracketTop” according to the holes.

Install Trim Frame to make contact cabinet.

8. Installment of Trim Frame

Fix 2 screws each at the upper and lower parts of
Trim Frmae with the door open.

• Fix it by color screw

Trim Frame Dimensions

(Depth of trim Frame is 7/8")
