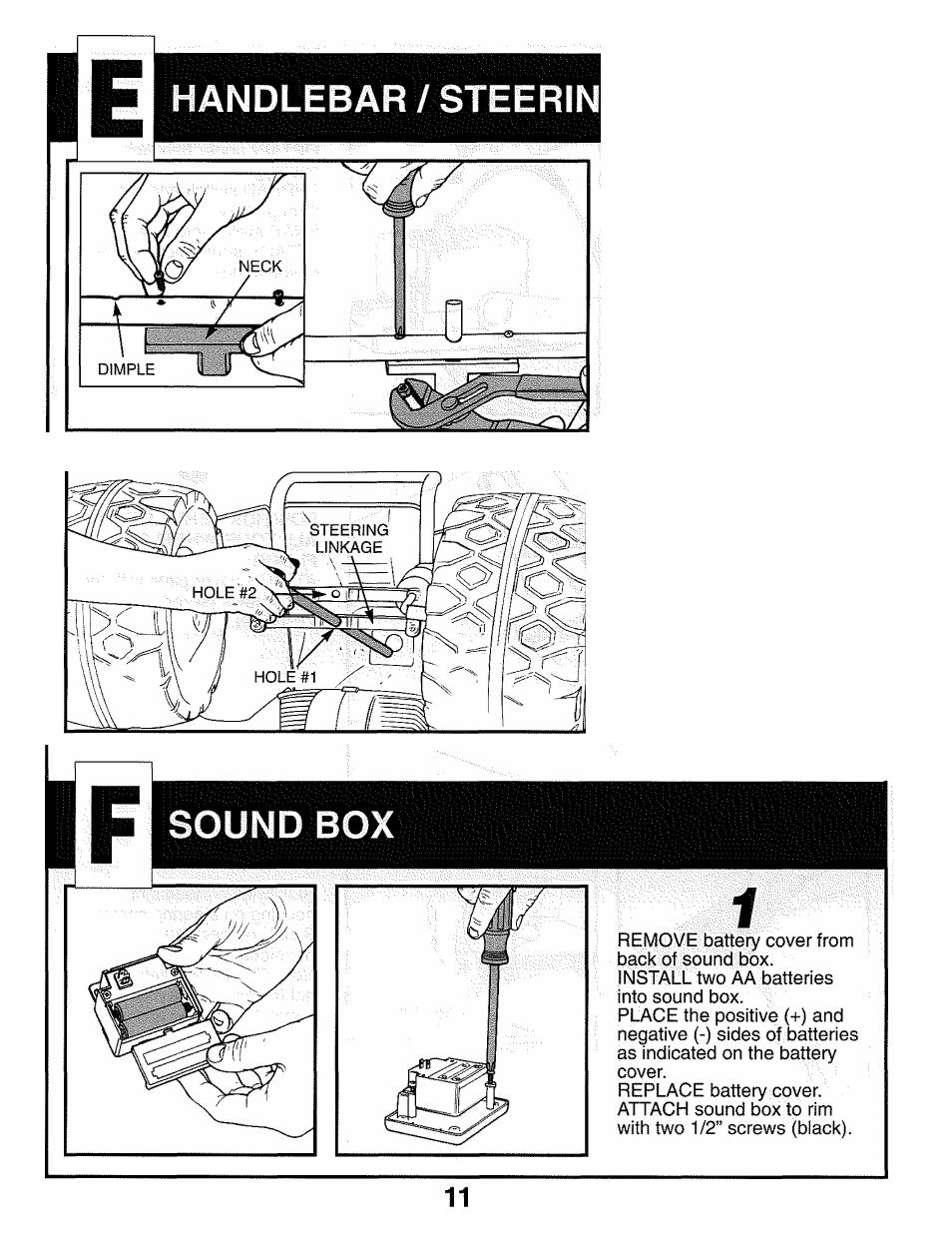

ALIGN three holes in
handlebar and neck.
PLACE steering column
through neck and handlebar
for afignrhent.
Note: Pimple should face
away from neck.
PUSH 1J1/2” screw through
each outer hole.
ATTACH lock nut on end of
each screw.
TIGHTEN with screwdriver
and pliers.
2
REMOVE steering column
from handlebar assembly.
SLIDE steering column
through hole #1 in bottom of
steering linkage and through
top of body.
PLACE curved end of
steering column through hole
#2 in top bar of steering
linkage.(lf assembly is difficult,
insert steering column into hole
#2 and curved end into hole #1.)
