Parts

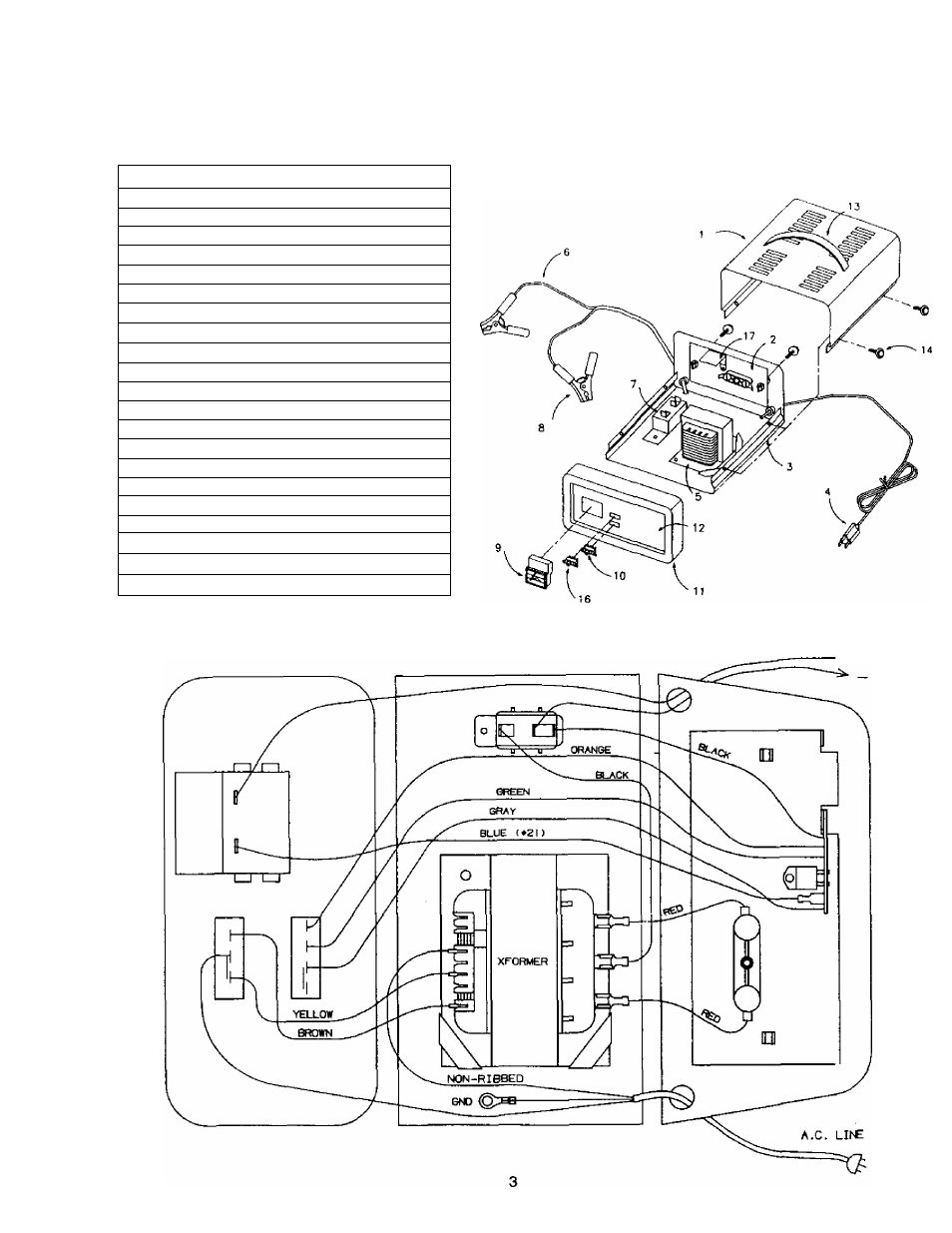

This section shows an illustration of your battery charger. Use it to become familiar with where all the parts are
located, and what they look like.
Replacement Parts List Sears 71212
Item
Description
Part Number
1
Cover
3799001402
2
HeatsinK/Diode Assembly
2299000844
3
Base
3799001382
4
AC Power Cord
90026058
5
Transformer
93026334
6
Output Cable
3899000016
7
Circuit Breaker (20A)
3999000045
S
50A Clamp (1)
2299000248
Sleeving Red (2) required
0399000007
Sleeving Black (2) required
0399000008
9
Meter
5399100091
10
Switch SPOT
0499000032
11
Front Panel
3799001392
12
Decal
0899000533
13
Handle
3599000240
14
Screw 8-18 x3f8" (4)
5181806256
15
Owners Manual and Parts List (Not Shown)
0000000511
16
Switch SP3P
0499000030
17
Control Board
2299000715
SCR only
3100100017
Wiring diagram
> +
