CONNECT
ELECTRICAL
CORD
Strain relief
(not supplied with dryer)
3-wire or 4-wire Piug Connection
Four-wire cord is required for mobile homes or where codes do not permit
grounding through neutral.

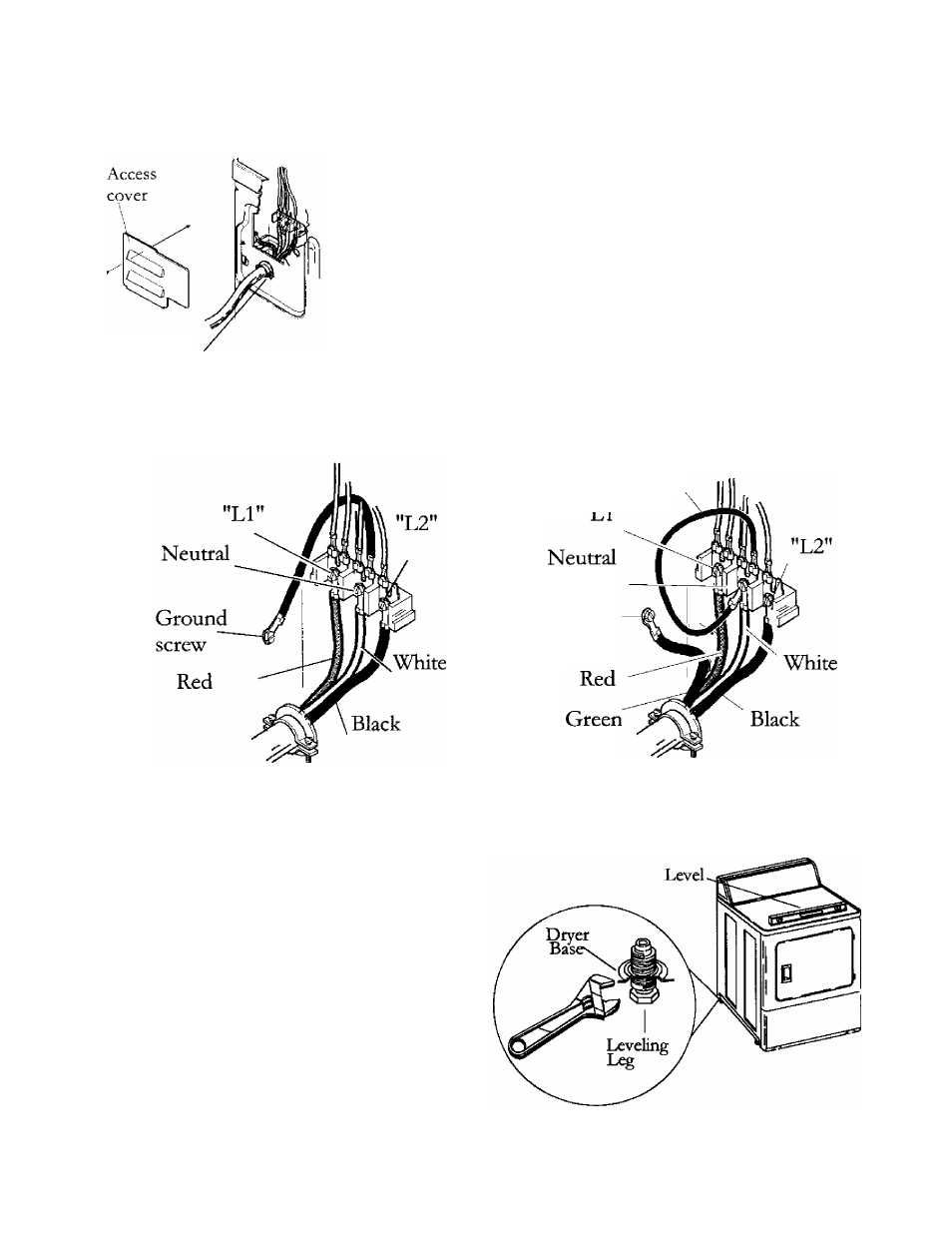

1. Remove access cover from rear of dryer,
2.
Use a strain relief and insert end of power cord through power supply
hole.
3. Use the three screws from envelope located in the drum to attach the
remaining power cord wires to the terminal block as follows:
• Red wire to “L1” terminal.
• Black wire to “L2" terminal.
• White wire to Neutral terminal.
• 4-wire Plug Oniy—Remove ground screw and detach ground wire
from bulkhead. Attach power cord ground (green) wire to rear
bulkhead using ground screw. Attach free ground wire, previously
attached with ground screw, with white wire to the neutral (center)
terminal on the terminal block,
4. Tighten all screws and reinstall access cover removed in step 1.
3-wire Cord Installed
4-wire Cord Installed
Ground
wire
ItT i ti
Ground
screw
4
POSITION AND
LEVEL DRYER
Place dryer in position, adjust all
legs (4) until dryer is level side to
side and front to back.
