INSTRUCTIONS & PARTS LIST
42” GRADER BLADE
No. LM-99IOI3
for T-I0,T-I2, T-15,
T-I6H, & T-I6S TRACTORS
LIFT LEVER
QUICK PIN
TRANSPORT HOOK
[See figure 1)
KING PIN
LIFT CABLE ASSEMBLY-^
QUICK PIN
HITCH ASSEMBLY
P^^ORAW BAR ASSEMBLY
P
ROD ^

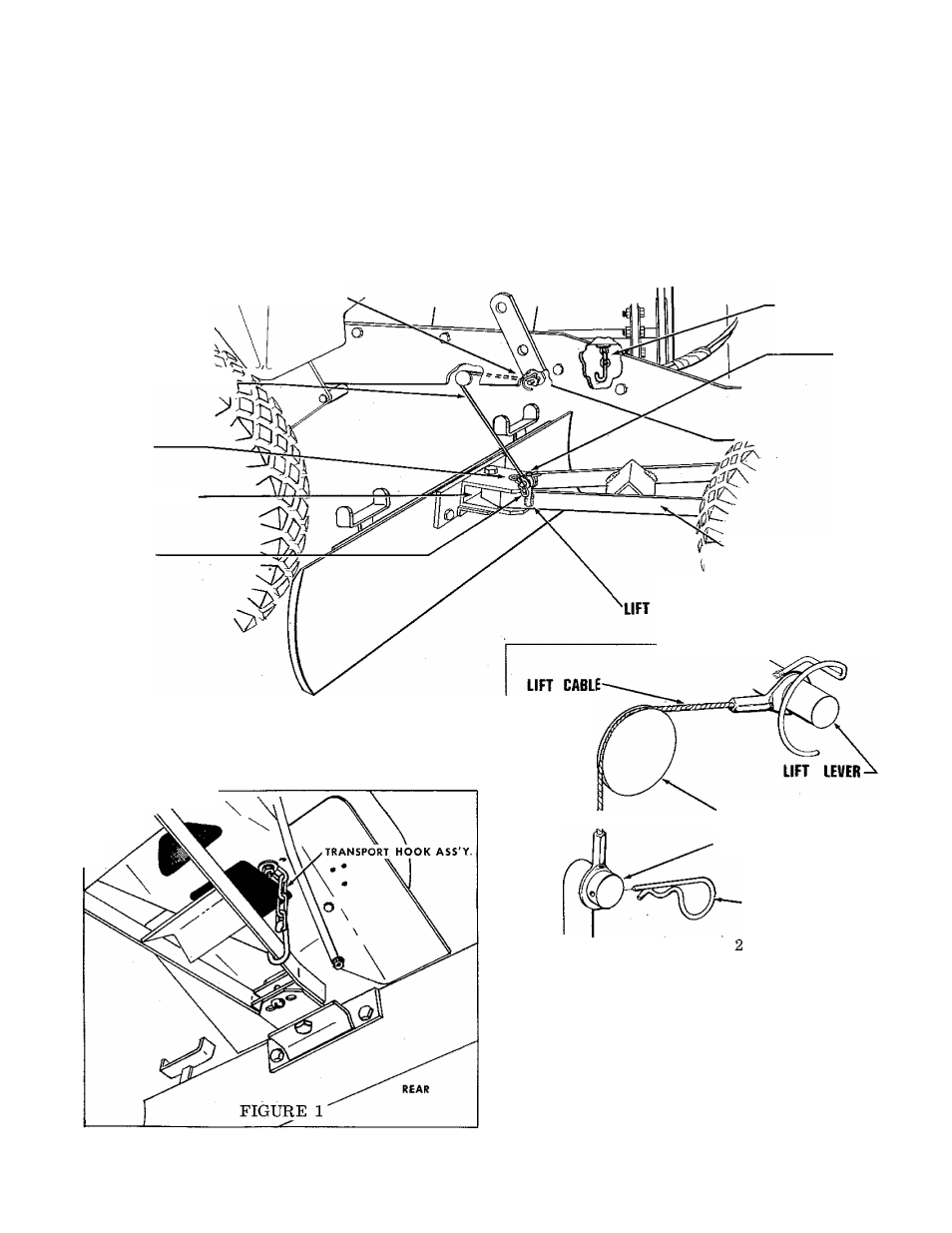

The 42" grader blade is attached to the tractor as shown in
the above illustration by following the sequence of steps as
outlined below.
UNDERSIDE OF TRACTOR
FRONT
PULLEY
LIFT ROD
QUICK PIN
FIGURE
1. Position the .grader blade under the tractor so that the
draw bar assembly may be connected to the front hitch
brackets of the tractor. Secure in place with two clevis
pins and two quick pins.
Attach the lift cable to the rod on the lift lever located
on the underside of the tractor (see Fig. 2). Run the
cable over the pulley and attach to the lift rod on the
draw bar. Secure with a quick pin.
When desired, the blade may be angled to the left or
right by removing the king pin and quick pin from the
center hole in the hitch assembly. Lock the blade in
the desired position by replacing the king pin and quick
pin when the alternate holes in the hitch assembly line
up with the hole in the draw bar.
PART NO. 24696-4
Supersedes No. 24696
