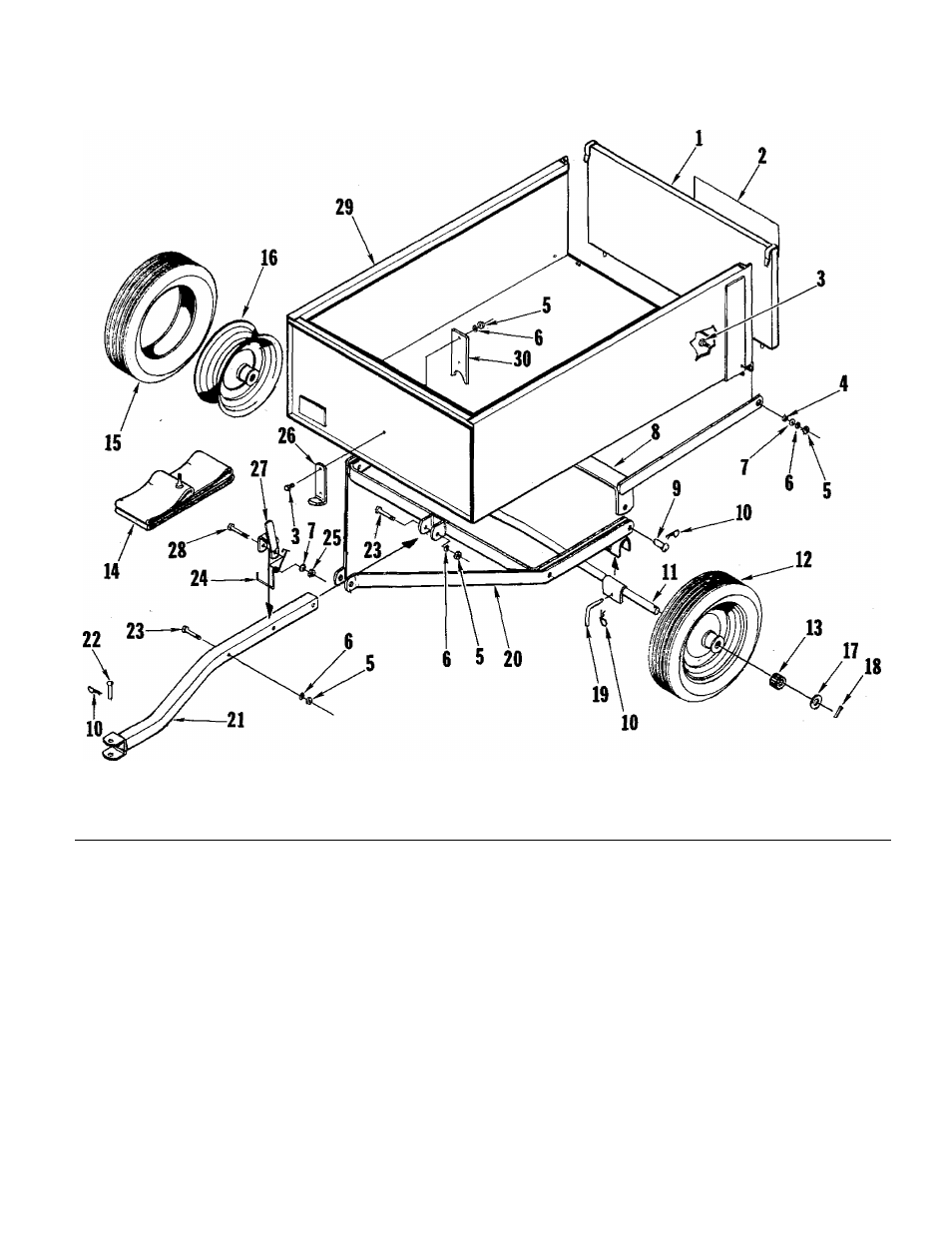

DUMP CART
No*
Description
Part No.
Qty.
No.
Description
Part No.
Qty.
1
GATE-end
LM-01020-03
1
17
WASHER-Hat, 3/4
LM-09184-32
2
2
FILM-Homelite
LM-01744-49
1
18
PIN-cotter, 3/16 X 1-1/2
LM-09184-59
2
3
SCREW-cap, 3/8-16 x 1
LM-09077-31
4
19
PIN
LM-80112-04
2
4
BUSHING
LM-81510-76
2
20
FRAME ASSEMBLY
LM-01020-35
1
5
NUT-hex, 3/8-16
LM-09169-50
6
21
TONGUE ASSEMBLY
LM-01020-37
1
6
WASHER-lock
LM-09169-65
6
22
PIN-inner
LM-01052-49
1
7
WASHER-flat, 3/8
LM-09173-78
3
23
SCREW-cap, 3/8-16 x 2-1/4
LM-09193-62
2
8
PIVOT ASSEMBLY-box
LM-01020-24
1
24
SPRING-tor Sion
LM-01020-75
1
9
PIN-pivot
LM-01020-04
2
25
NUT-hex lock, 3/8-16
LM-09234-28
1
10
PIN-quick
LM-S1610-45
5
26
PLATE-box catch
LM-01020-40
1 .
11
AXLE ASSEMBLY
LM-01020-27
1
27
CLEVIS ASSEMBLY
LM-01020-51
1
12
WHEEL & TIRE ASSEMBLY
LM-01703-20
2
28
SCREW-cap, 3/8-16 x 2-3/4
LM-09219-73
1
Includes:
29
BODY-trailer
LM-01020-02
1
13
BEARING
LM-0I703-18
2
30
PLATE-box gqide
LM-01020-05
1
14
TUBE
LM-01530-38
2
15
TIRE
LM-01020-52
2
Accessory
16
WHEEL
LM-01703-19
2'
PAINT-blue, 14 oz. spray can
LM-16076-89
1
ALWAYS FURNISH MODEL AND SERIAL NUMBER WHEN ORDERING PARTS.
