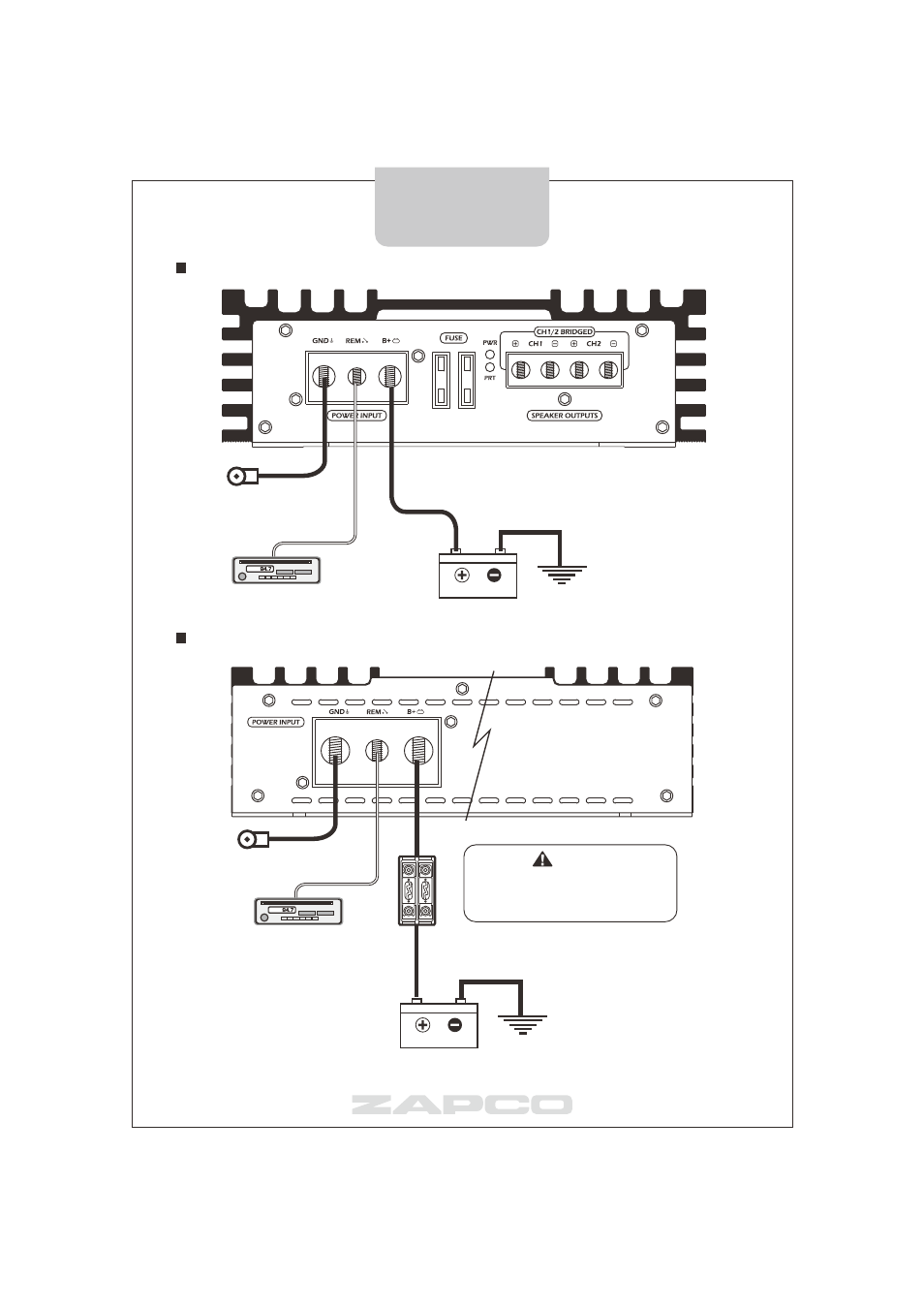

POWER CONNECTION
Z-150.2
to REMOTE Turn-on
from HEAD UNIT
BATTERY
HEAD UNIT
GROUND
GROUND
25Ax2
Z-400.2 / Z-150.4
Caution
This amplifier is not supplied with internal
fuse. Make sure you install
an in-line
fuse holder
near the +terminal of battery.
Z-400.2:Recommend 100 Ampere fuse.
Z-150.4:Recommend 80 Ampere fuse.
to REMOTE Turn-on
from HEAD UNIT
BATTERY
HEAD UNIT
GROUND
GROUND
